CMZ - TTL66ES-TUR-CMZ-2025-00001

• General

  • Maximum swing diameter: 800 mm

  • Maximum turning diameter: 515 mm

  • Distance between spindle noses: 614 mm

  • Installed power: 35.5 kVA

  • Tank capacities: Coolant 510 L, Lubrication oil 18 L, Hydraulic oil 100 L

• Axis travels

  • Upper turret (T1): X1 240 mm, Z1 800 mm, Y1 ±45 mm

  • Lower turret (T2): X2 240 mm, Z2 800 mm, Y2 ±45 mm

  • Sub-spindle axes: X3 +120/-120 mm, Z3 580 mm

• Rapid traverse rates

  • X axes: 30 m/min

  • Z axes: 30 m/min

  • Y axes: 20 m/min

• Axis acceleration

  • All linear axes: 1G (9.8 m/s²)

• Main spindle

  • Type: Integrated built-in motor

  • Chuck size: 210 mm

  • Spindle nose: ASA A2-6

  • Bar capacity: 66 mm

  • Spindle bore: 72.5 mm

  • Draw tube I.D.: 66 mm

  • Bearing O.D.: 170 mm

  • Power (Max / S3 25% / S1): 35.5 / 28.3 / 23.5 kW

  • Torque (Max / S3 25% / S1): 205 / 180 / 150 Nm

• Sub-spindle

  • Max speed: 4,000 rpm

  • Bar capacity: 66 mm

  • Spindle bore: 72.5 mm

  • Draw tube I.D.: 66 mm

  • Bearing O.D.: 170 mm

  • X3 travel: ±120 mm

  • Z3 travel: 580 mm

  • Power (Max / S3 25% / S1): 35.5 / 28.3 / 23.5 kW

  • Torque (Max / S3 25% / S1): 205 / 180 / 150 Nm

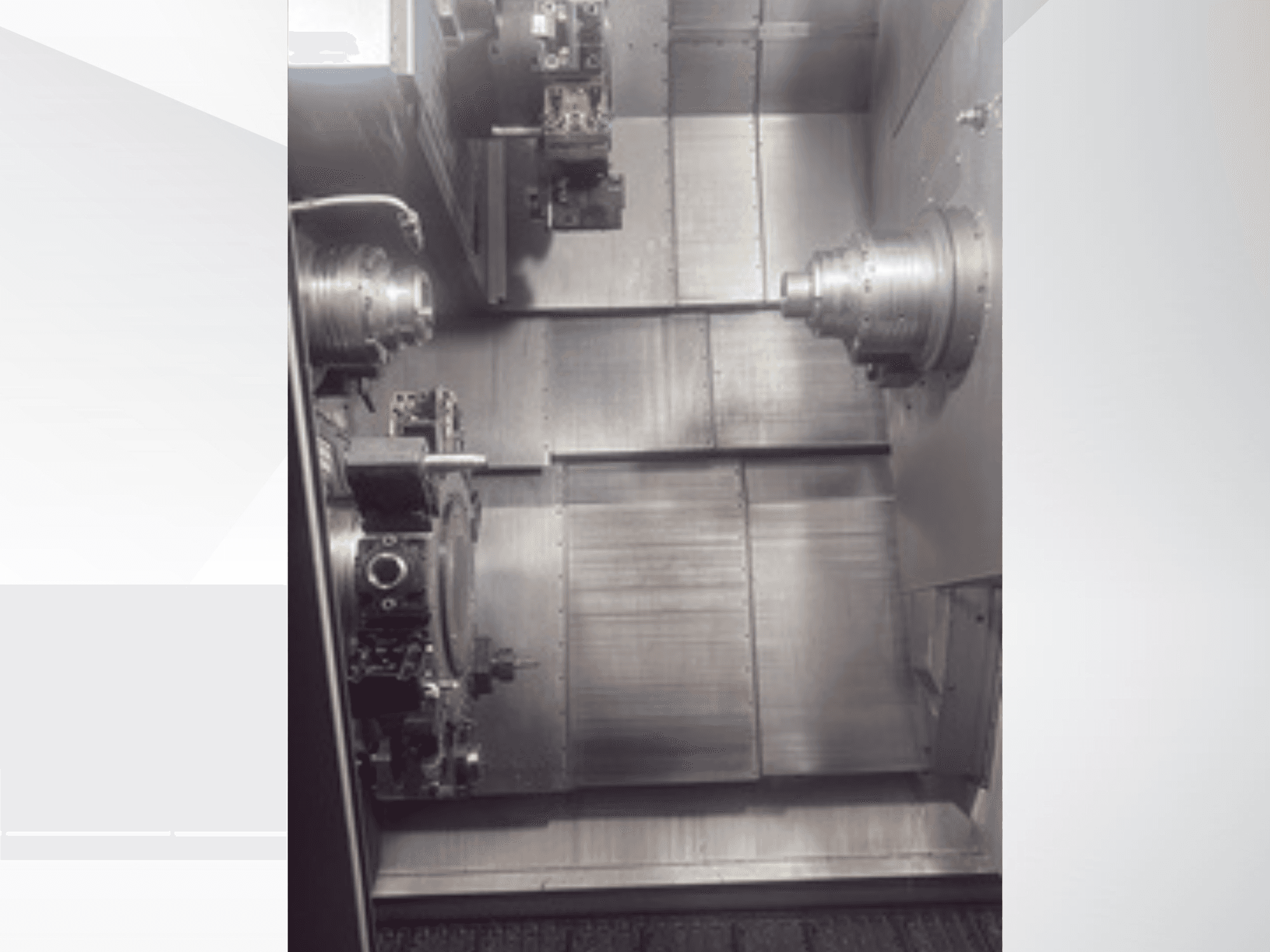

• Turrets (upper & lower)

  • Number of stations: 24

  • Live tool positions: 12

  • Tool size: 20×20 mm / 25×25 mm

  • Indexing time: 0.1 sec

  • Clamping force: 3,200 kgf

  • Curvic coupling diameter: 150 mm

• Live tooling

  • Motor type: Built-in synchronous motor

  • Max speed: 12,000 rpm

  • Power (Max / S1): 14 / 10 kW

  • Max torque (Max / S1): 42 / 32 Nm

  • Cooling: Full oil cooling

  • Standard tool interface: NT-55

• Construction

  • Heavy-duty GG-25 cast iron 60° slant bed, FEA-optimized

  • Bed weight: 4,450 kg

  • NSK roller linear guideways and pre-tensioned ballscrews

  • 8 built-in oil-cooled motors

  • Thermal-stable design with spindles at 90° to X–Z plane

• Coolant & thermal management

  • Oil chiller capacity: 5,000 W

  • Standard coolant pump: 6 bar / 60 l/min

  • Coolant tank capacity: 510 L

  • Oil cooling for both spindles, all X/Y built-in motors, and both live-tool motors

  • Thermal compensation via controlled oil temperature

• CNC control

  • Fanuc 31i-T Plus with iHMI, 15" touchscreen

  • Manual Guide i conversational programming

  • Ethernet & USB connectivity

  • Remote assistance capability

  • Industry 4.0 ready

  • 14 controlled axes: X1, X2, X3; Y1, Y2; Z1, Z2, Z3; T1, T2; M1, M2; C1, C2

  • Simultaneous control of 4 axes per channel

  • Functions: Rigid tapping, polygon turning, cylindrical interpolation, polar coordinate interpolation, gear hobbing and power skiving capability

• Key selling points

  • Twin spindle + twin Y-axis turrets

  • Simultaneous 4-tool machining capability

  • Full built-in motor architecture (no belts)

  • 66 mm bar capacity on both spindles

  • 12,000 rpm live tooling

  • Superimposed machining with movable sub-spindle

  • Suitable for high-volume automotive, hydraulic, aerospace, and precision turned parts production

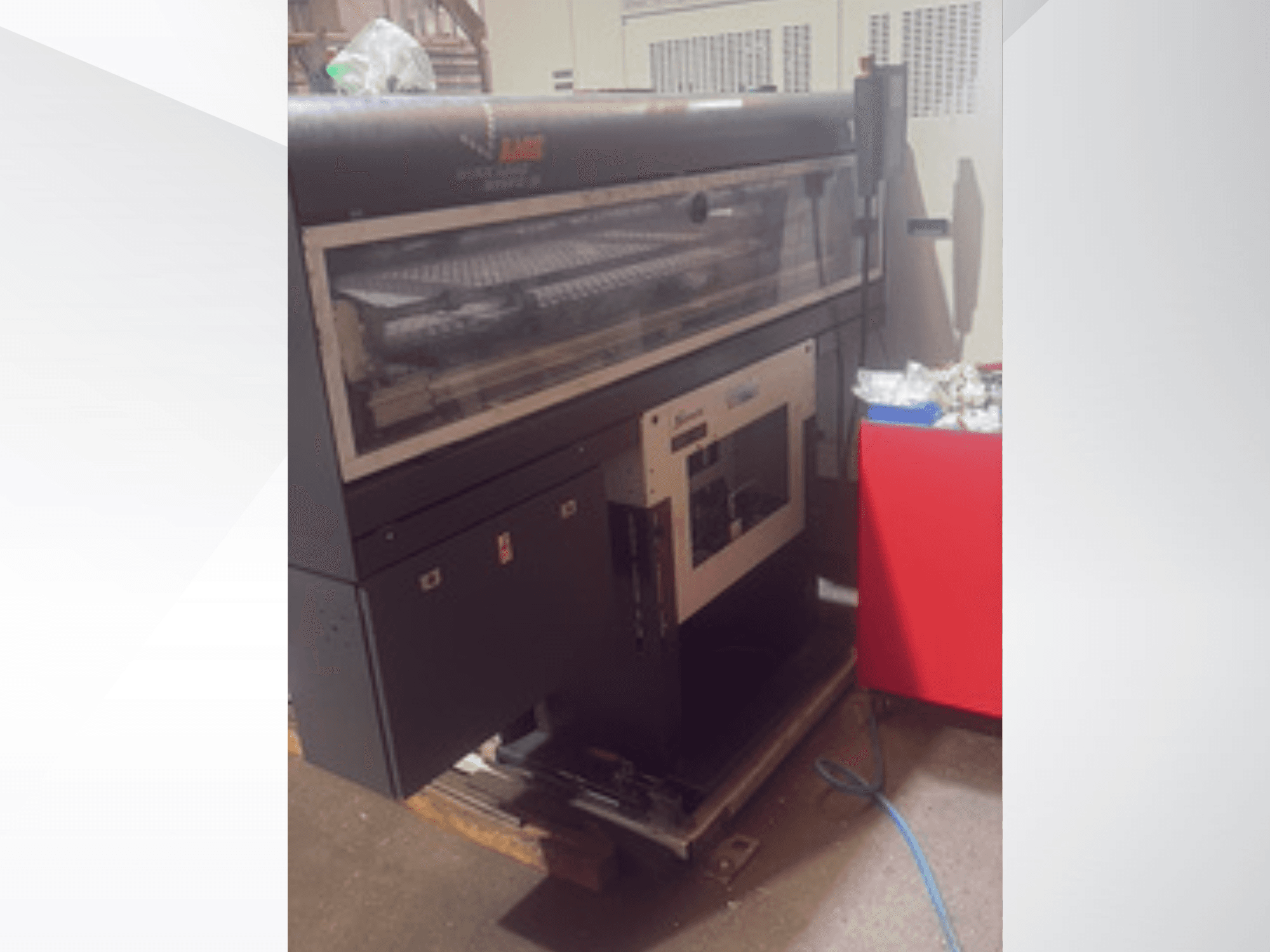

Additional equipment

• Optional high-pressure coolant pump: 15 bar

• Optional tailstock

• Not specified in the provided information: robots, automation, chip conveyor, bar feeder
