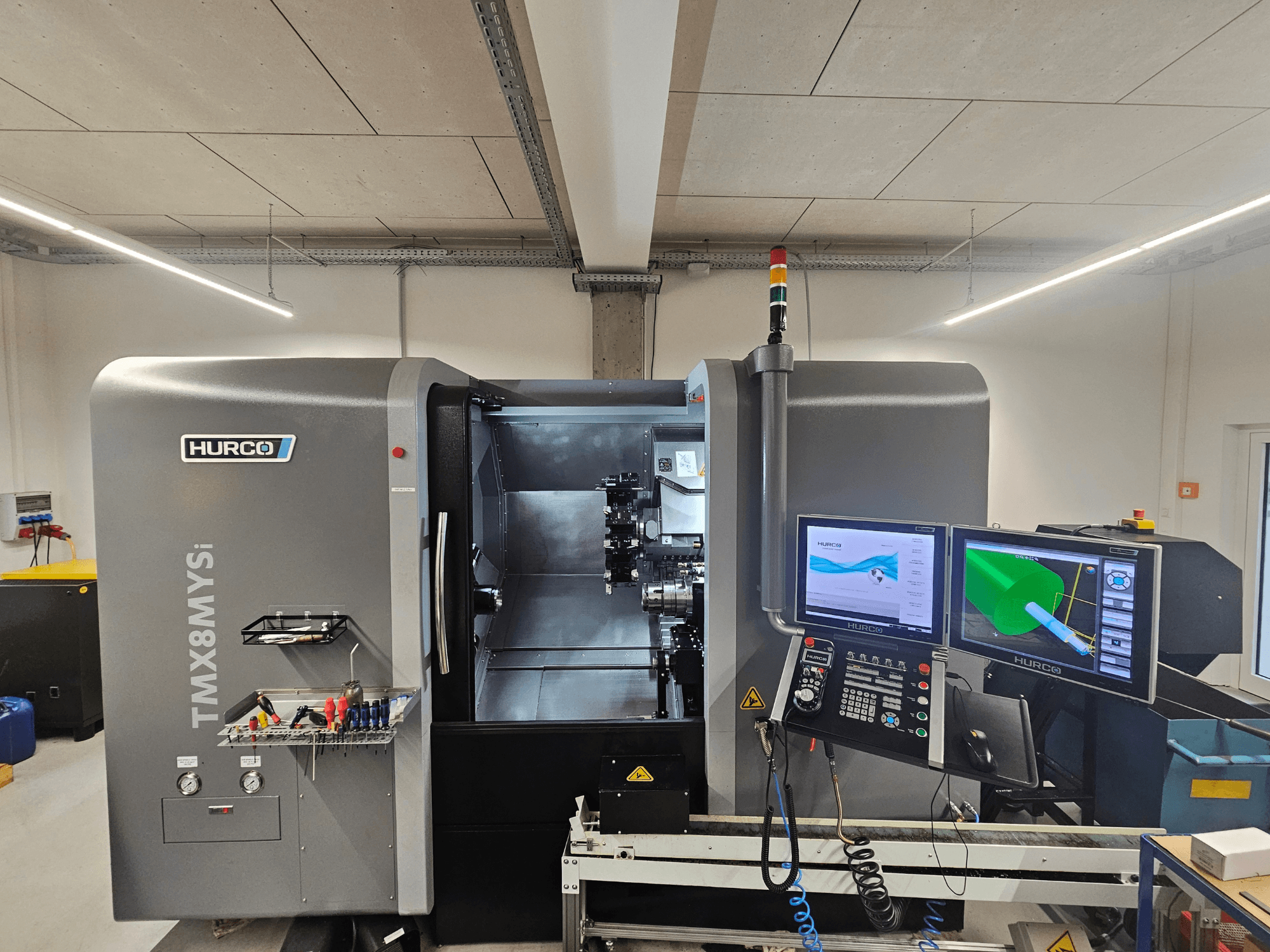

Hurco TMX 8 MYSi turn-mill centre in a workshop, featuring dual monitors, control panel, and tools on the side.
Hurco TMX 8 MYSi turn-mill centre in a workshop, featuring dual monitors, control panel, and tools on the side.

Hurco - CNC TMX 8 MYSiDE-TUR-HUR-2023-00001

Rs. 15,569,499
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis Hurco CNC TMX 8 MYSi was manufactured in 2023. It features a maximum turning diameter of 508 mm and a turning length of 560 mm, with a main spindle speed of 4,500 rpm and a sub-spindle speed of 6,000 rpm. The machine includes a tool turret with 12 stations and a rapid traverse of 24 m/min in the X-axis. If you are looking to get high-quality turning and milling capabilities, consider the Hurco CNC TMX 8 MYSi turn-mill centre. Contact us for further details.

Overview

  • brand: Hurco
  • year: 2023
  • MODEL: CNC TMX 8 MYSi
  • production hours: 346
  • application type: Turning
  • Location: Germany
  • machine type: Turn-Mill Centre

Technical Information - Hurco CNC TMX 8 MYSi

Movement

  • Number of Axes: 5

Additional Information

  • X-axis travel: 203 mm

  • Y-axis travel: ±55 mm

  • Z-axis travel: 560 mm

  • W-axis travel: 640 mm

  • Rapid traverse X/Y/Z/W: 24 / 12 / 30 / 30 m/min

  • Positioning accuracy: 0.01 mm

  • Repeatability: 0.005 mm

  • Max turning diameter: 508 mm

  • Max turning length: 560 mm

  • Max part diameter over bed: 335 mm

  • Tool turret: VDI 40

  • Number of stations: 12

  • Max driven tool speed: 5000 rpm

  • Driven tool power: 6.3 kW

  • Driven tool torque: 28 Nm

  • Main spindle max speed: 4500 rpm

  • Sub-spindle max speed: 6000 rpm

  • Synchronous spindle speed: 2500 rpm

  • Main spindle power (S6 / S1): 25 / 17.2 kW

  • Sub-spindle power (S6 / S1): 15 / 11 kW

  • Main spindle torque (S6 / S1): 239 / 164 Nm

  • Sub-spindle torque (S6 / S1): 102 / 75 Nm

  • Main spindle chuck size: 203 mm

  • Sub-spindle chuck size: 150 mm

  • Main spindle bar capacity: 64.5 mm

  • Sub-spindle bar capacity: 46 mm

  • Electrical supply: 400 V, 50 Hz, 3 phase

  • Largest motor: 22 kVA

  • Largest motor current: 32 A

  • Full load: 58 kVA

  • Full load current: 83 A

  • Short circuit rating: 5 kA RMS symmetrical

  • Interrupt capacity: 10000 A

  • Max ambient temperature: 35 °C

  • Coolant tank capacity: 203 L

  • Machine weight: 7500 kg

  • Transport weight: 8250 kg

  • The BMT65 mounts are included; swivel mounts are not.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
