- ➤ Used Index G250 Turn-Mill Centre For Sale | gindumac.com

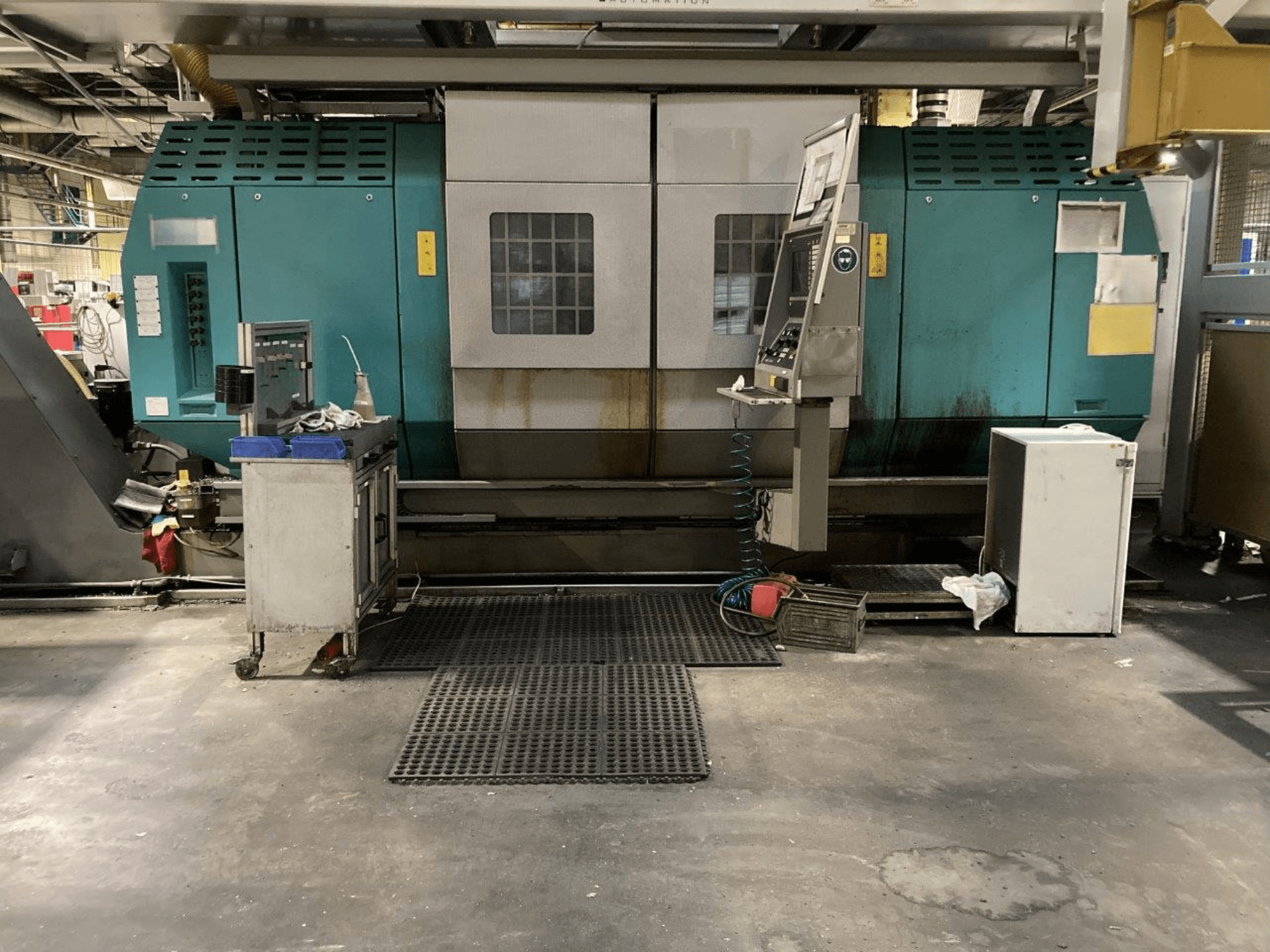

This 8-axis Index G250 turn-mill centre was manufactured in 2004. It includes a Knoll chip conveyor, EMAG cooling unit, and ISI mist extraction system. The machine features a hydraulic power chuck with a clamping range of 125–152 mm and an overhead gantry loader for automation. If you are looking to get high-quality turning and milling capabilities, consider the Index G250 machine we have for sale. Contact us for further details.
Overview
- brand: Index
- year: 2004
- MODEL: G250
- application type: Turning
- Location: Germany
- machine type: Turn-Mill Centre
- control unit brand: SIEMENS
Technical Information - Index G250
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK
Dimensions
- Machine Height: 2400 mm
- Machine Length: 5460 mm
- Machine Weight: 13500 kg
- Machine Width: 2560 mm
Movement
- Number of Axes: 8
- X-axis Travel: 300 mm
- Z-axis Travel: 1400 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
Additional Information
- Control Unit: Siemens SINUMERIK / INDEX C 200-4D
- Rated Voltage: 400 V AC (3 Phase, 50 Hz)
- Rated Current: 74 A
- Rated Power: 43 kW
- Control Voltage: 24 V DC
- Tool Turret: 12-station tool turret with driven/live tool capability
- Workholding: Main spindle with hydraulic power chuck / collet system, SMW-Autoblok SLU-3-ZS hydraulic power chuck (clamping range 125-152 mm)
- Steady Rest: SMW-AUTOBLOK / Original SMW Steady Rest (Type: SLU-3-28, Clamping range: 12-152 mm, Max. operating pressure: 60 bar)
- Hydraulic System: Integrated hydraulic power unit operating at 95 bar pressure
- Automation / Gantry Loader: Promet Automation gantry loading system overhead
- Coolant / Chip System: Knoll chip conveyor / coolant unit (YOM: 2004)
- Chiller Unit: EMAG Chiller / Cooling Unit (YOM: 2016, Cooling capacity: 9.5 kW, Refrigerant: 2.5 kg)
- Mist Collector / Air Cleaner: ELBARON / ISI RON / A 2500 Electrostatic Air Cleaner / Mist Extractor (YOM: 2004)
- Documentation Included: Complete documentations, operating manuals, etc.
- Transport Dimensions (L x W x H): Approx. 5460 x 2560 x 2400 mm (width reducible to 2450 mm)
- Machine Weight: Approx. 13,500 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
