➤ Used Hyundai Wia L2100SY For Sale | gindumac.com

Show in original language

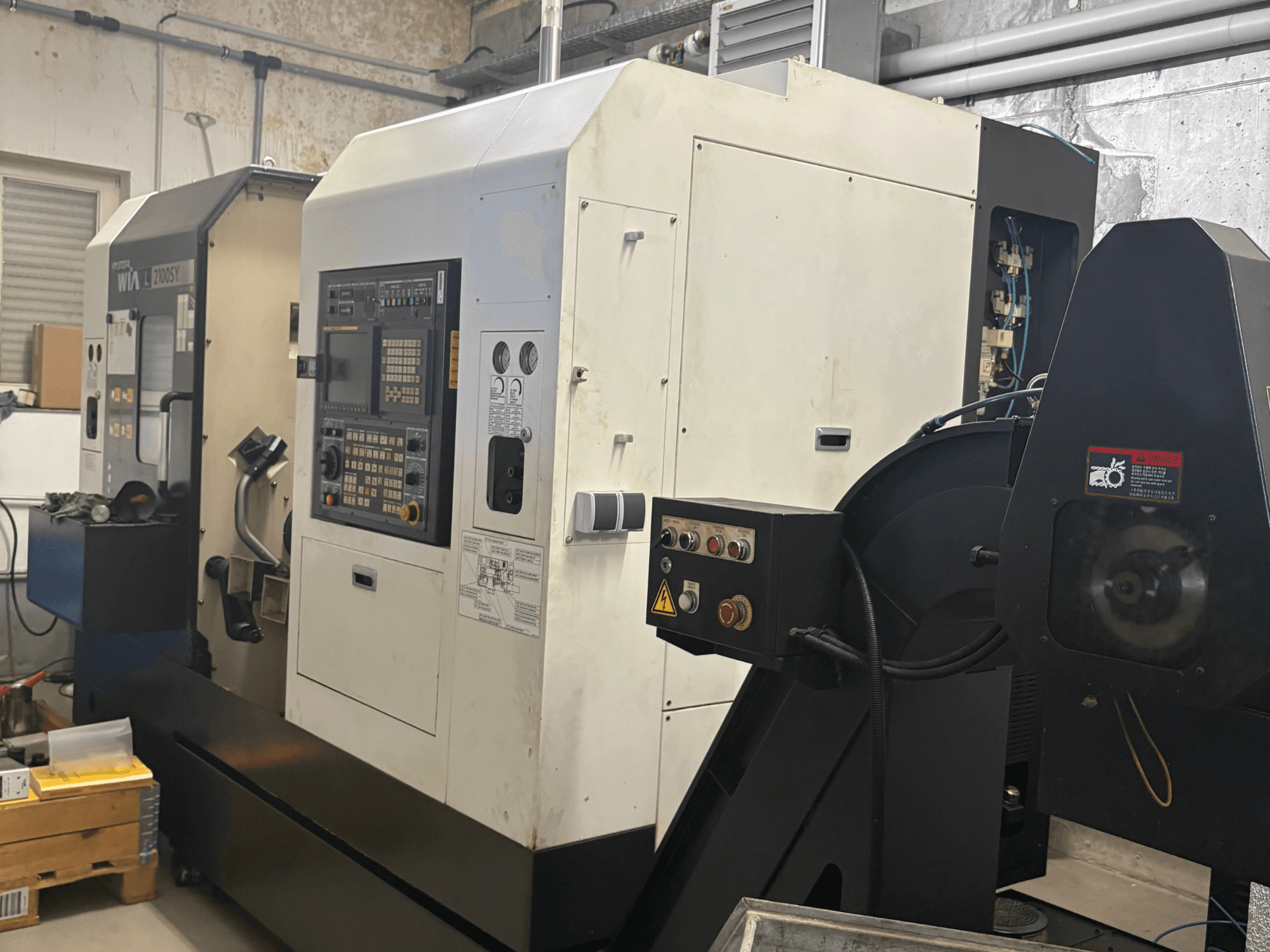

This 4-axis Hyundai Wia L2100SY turn-mill centre was manufactured in 2012. It features a maximum turning diameter of 335 mm and a turning length of 455 mm. The machine is equipped with a 12-station turret and a spindle speed of up to 4,500 rpm. If you are looking to get high-quality turning capabilities, consider the Hyundai Wia L2100SY machine we have for sale. Contact us for further details.

Overview

brand: Hyundai Wia
year: 2012
MODEL: L2100SY
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - Hyundai Wia L2100SY

Control Unit

Control Brand: FANUC
Control Model: Series 18i-TB

Dimensions

Machine Height: 2225 mm
Machine Length: 3039 mm
Machine Weight: 4570 kg
Machine Width: 1725 mm

Movement

Number of Axes: 4
X-axis Travel: 210 mm
Z-axis Travel: 580 mm

Technical Specification

Counter Spindle: Yes
Driven Tools: Yes
Max. Bar Diameter: 65 mm
Max. Workpiece Diameter: 335 mm
Spindle Power: 15 kW
Spindle Speed: 4500 RPM
Tool Stations: 12

Additional Information

Control Unit: FANUC Series 18i-TB
Voltage: 380 V (3Ø)
Frequency: 50 Hz
Rated Power: 33 kVA
Full Load Current: 51 A
Control Voltage: AC 110 V / DC 24 V
Swing Over Bed: Ø630 mm (24.8")
Swing Over Carriage: Ø390 mm (15.4")
Max. Turning Diameter: Ø335 mm (13.2")
Max. Turning Length: 455 mm (17.8")
Bar Capacity: Ø65 mm (2.6")
Chuck Size: Ø210 mm (8")
Spindle Bore: Ø76 mm (3")
Spindle Speed Range: 45–4,500 rpm
Spindle Motor (Continuous): 15/11 kW (20/15 HP)
Spindle Motor (Maximum): 25.4/18.5 kW
Spindle Torque (Continuous): 254.2 Nm
Spindle Torque (Maximum): 597.7 Nm
Spindle Nose: A2-6
Rapid Traverse X/Y: 24/24 m/min
Rapid Traverse Z: 18/12 m/min
Slide Type: Box Guide
Turret: BMT65
OD Tool Size: □25 × 25 mm
ID Tool Size: Ø50 mm (2")
Indexing Time: 0.2 sec/step
X-Axis Motor: 5.5/3.7 kW
Z-Axis Motor: 5.5/3.7 kW
Torque: 5,000 Nm
Coolant Tank Capacity: 220 L (58.1 gal)
Lubrication Tank Capacity: 0.9 L (0.5 gal)
Power Requirement: Over 35 kVA
Main Spindle Chuck: Samchully MH-208
Sub Spindle Chuck: Samchully HS-06
Chuck Jaws optional

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
