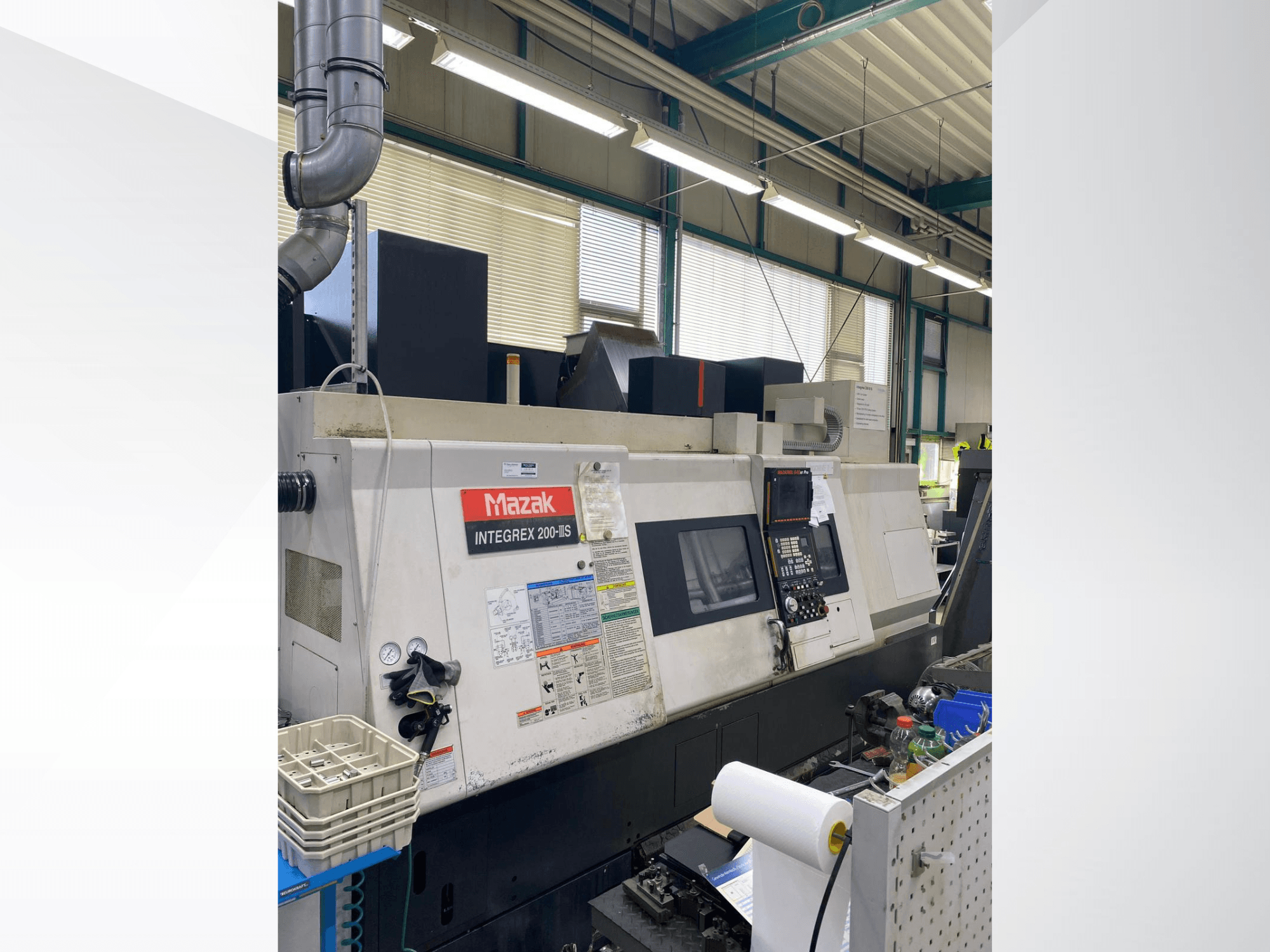

This 5-axis Mazak INTEGREX 200 III S was manufactured in 2004. It features a maximum turning diameter of 660 mm and a maximum workpiece weight of 150 kg. The machine is equipped with a tool magazine capacity of 80 slots and a rapid traverse speed of 38 m/min on the X and Z axes. If you are looking to get high-quality turning and milling capabilities, consider the Mazak INTEGREX 200 III S turn-mill centre we have for sale. Contact us for further details.
Overview
- brand: Mazak
- year: 2004
- MODEL: INTEGREX 200 III S
- production hours: 615
- application type: Turning
- Location: Germany
- machine type: Turn-Mill Centre
- control unit brand: MAZATROL
Technical Information - Mazak INTEGREX 200 III S
Control Unit
- Control Brand: MAZATROL
- Control Model: PC FUSION CNC 640MT Pro
Dimensions
- Machine Height: 2597 mm
- Machine Length: 3820 mm
- Machine Weight: 9700 kg
- Machine Width: 2060 mm
Movement
- Number of Axes: 5
- X-axis Travel: 580 mm
- Y-axis Travel: 80 mm
- Z-axis Travel: 1045 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Power: 22 kW
- Spindle Speed: 5000 RPM
Additional Information
- Max. Swing Diameter: 660 mm
- Max. Turning Diameter: 660 mm
- Max. Turning Diameter over Slide: 500 - 660 mm
- Max. Bar Working Diameter: 51 mm
- Max. Workpiece Weight (incl. Chuck) - Chuck Workpiece: 100 kg
- Max. Workpiece Weight (incl. Chuck) - Shaft Workpiece: 150 kg
- Main Spindle Speed Range (Stepless): 35 - 5,000 rpm
- Main Spindle Drive Power (30 min. rating / 100% continuous operation): 22 kW / 15 kW
- Main Spindle Max. Torque: 349 Nm
- Main Spindle Nose: A2-6"
- Main Spindle Bore: Diameter 76 mm
- Main Spindle Chuck Diameter: 210 mm
- Main Spindle Indexing (C-Axis): 0.0001°
- Second Spindle Drive Power (30 min. rating / 100% continuous operation): 18.5 kW / 15 kW
- Second Spindle Speed Range: 35 - 5,000 rpm
- Second Spindle Max. Torque: 326 Nm
- Second Spindle Indexing (C-Axis): 0.0001°
- Second Spindle Chuck Diameter: 210 mm
- Tool Turret Design: Single spindle turret for stationary or driven tools
- Driven Tools (IPM Motor) Drive Power (20% ED): 15 kW
- Driven Tools Max. Torque: 120 Nm
- Driven Tools Speed Range: 15 - 12,000 rpm
- Tool Taper: MAZAK KM 63 quick-change system (for stationary tools)
- Tool Magazine Type: Drum type
- Tool Magazine Capacity: 80 slots (equipped for stationary and driven tools)
- Tool Weight: max. 10 kg
- Tool Diameter: max. 90 mm
- Tool Diameter (with free adjacent slots): max. 125 mm
- Tool Length: max. 300 mm
- Tool Change Time (Tool-to-Tool step 1): approx. 1.3 s
- Travel Y-Axis: +/- 80 mm
- Travel W-Axis: 1050 mm
- B-Axis Swivel Range: -30° to +195°
- Rapid Traverse Speed X-Axis: 38 m/min
- Rapid Traverse Speed Y-Axis: 26 m/min
- Rapid Traverse Speed Z-Axis: 38 m/min
- Rapid Traverse Speed W-Axis: 30 m/min
- Rapid Traverse Speed C-Axis: 400 rpm
- Feed Range X-Axis: 0 - 8,000 mm/min
- Feed Range Z-Axis: 0 - 8,000 mm/min
- Feed Range Y-Axis: 0 - 8,000 mm/min
- Coolant Tank Capacity: 220 L
- Pump Delivery Rate: approx. 20 l/min
- Pump Pressure: approx. 5 bar
- Pump Power: 635 W
- Connected Load: 61.4 kVA
- Operating Voltage: 400 V / 50 Hz
- Pneumatic Pressure: 5 bar, 500 l/min
- Total Operating Hours: 3,520 hours (Recorded on 2026/05/04)
- Automatic Process Time: 1,581 hours
- Automatic Cutting Time: 1,267 hours
- Pure Cutting Time: 905 hours
- Operating Time: 615 hours
- Standard Accessories / Additional Equipment:
- B-Axis (0.0001° positioning axis)
- C-Axis (0.0001°)
- Y-Axis
- Spindle orientation on second spindle
- Synchronization of main and second spindle
- Hydraulic 3-jaw chuck diameter 210 mm, Type KITAGAWA B-208, including 1 set of soft jaws (Main Spindle)
- Hydraulic 3-jaw chuck diameter 210 mm, Type KITAGAWA B-208, including 1 set of soft jaws (2nd Spindle)
- Dual foot switch for opening/closing the chucks for main and 2nd spindle
- Feedback of chuck status (open/closed) for main and 2nd spindle
- Air blow-out device on chuck (Second Spindle)
- Tool Setter (Tool Eye)
- Front door interlock
- Complete coolant system
- Coolant and chip guard via fully enclosed work area
- Work area lighting
- Chip Conveyor System (Mayfran ConSep unit visible)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
