Mazak - INTEGREX 200 IV SIT-TUR-MAZ-2007-00001

Name: Mazak INTEGREX 200 IV S
Brand: Mazak
SKU: IT-TUR-MAZ-2007-00001
Price: 11276543 INR
Availability: InStock

Rs. 11,276,543

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MAZAK INTEGREX 200 IV S Lathe

Show in original language

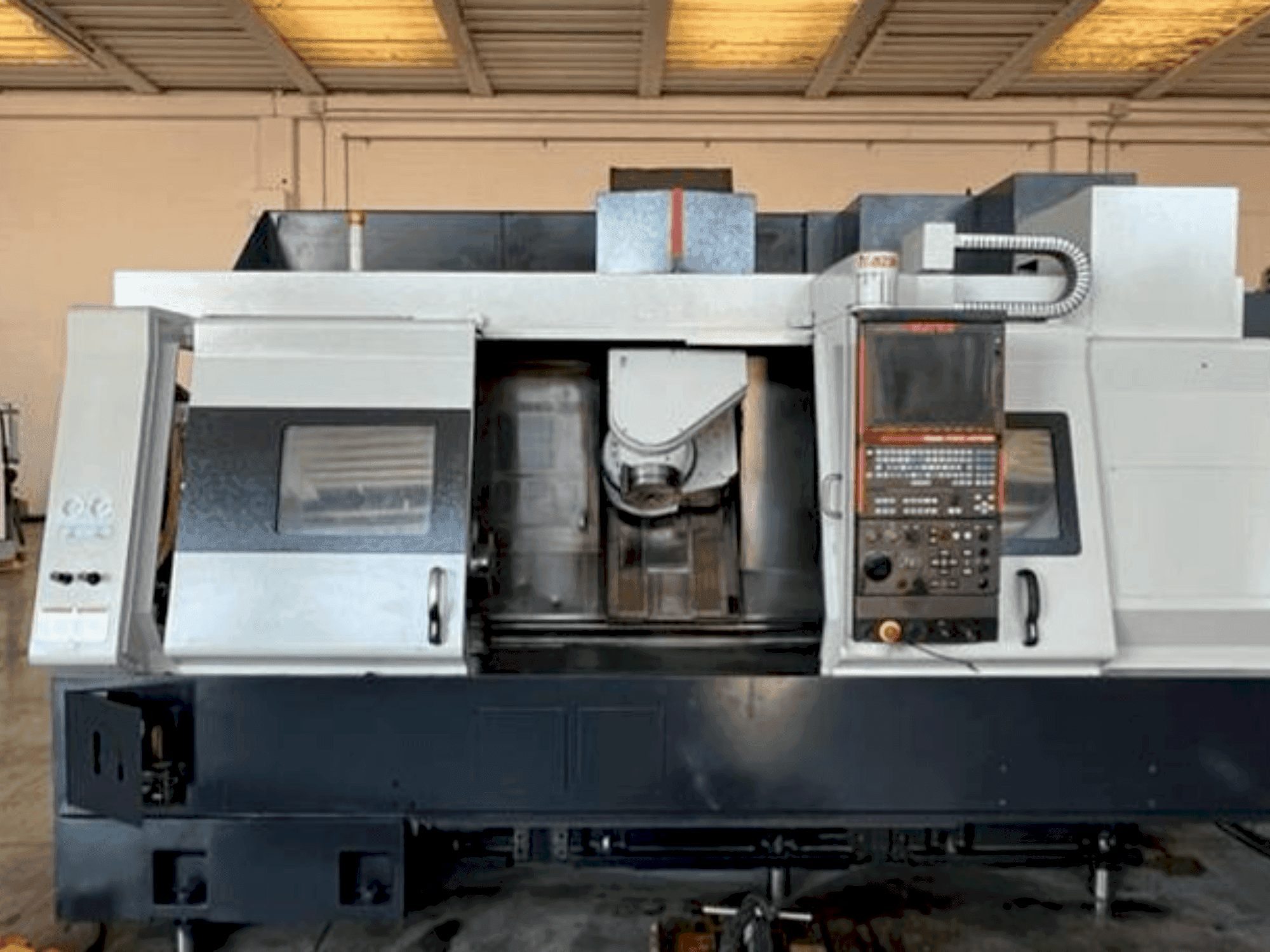

This MAZAK INTEGREX 200 IV S Lathe was manufactured in the year 2007. It is equipped with a Matrix control unit. The machines disposes od a spindle, a counter spindle, a milling spindle and a chip conveyor.

Overview

brand: Mazak
year: 2007
MODEL: INTEGREX 200 IV S
application type: Turning
Location: Italy
machine type: Turn-Mill Centre

Technical Information - Mazak INTEGREX 200 IV S

Movement

Number of Axes: 5

Technical Specification

Spindle Power: 22 kW
Spindle Speed: 5000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Maximum workable length 1050 mm // maximum workable diameter 660mm
Bar passage 51mm
Main spindle diameter 210mm
C axis 360°
Counter spindle self-centering diameter 210 // power and counter spindle speed 18. 5 kw 5000 rpm
C axis on the counter spindle 555
X-axis (strokes) // 580 y-axis (strokes) // 160 z axis (strokes) // 1050 b axis (strokes) 225°
Milling spindle power 18. 5 kw // milling spindle speed 12,000 rpm
Spindle attachment chapter c6
High pressure system through the spindle 20 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
