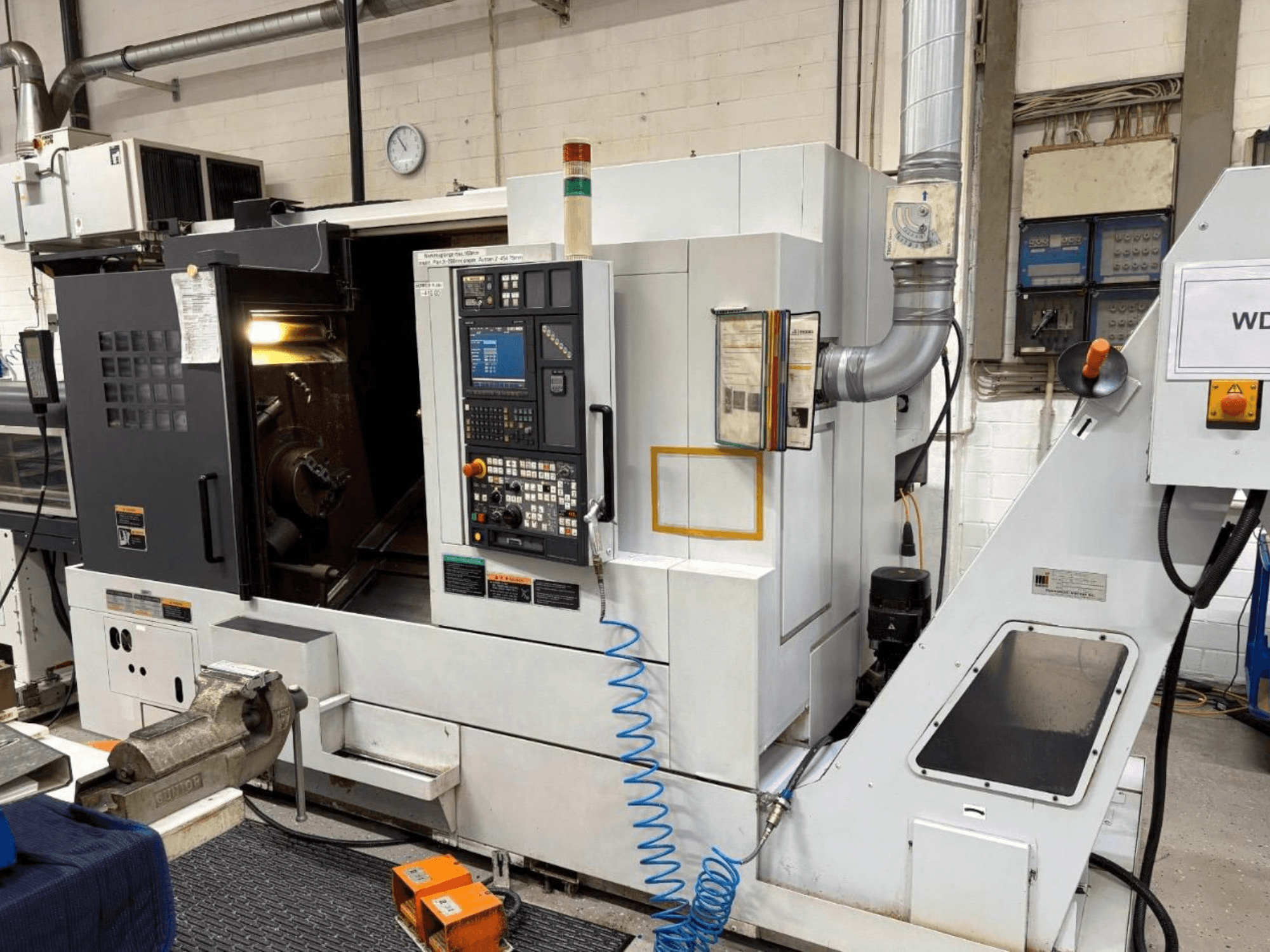

MORI SEIKI - NL 2500 SYES-TUR-MOR-2009-00002

• Rapid traverse rates:

  • X: 30 m/min

  • Z: 30 m/min

  • Y: 10 m/min

• Main spindle:

  • Spindle nose: A2-8

  • Max bar capacity: 80 mm

  • Chuck: Kitagawa B-210, Ø250 mm

  • C-axis: 360° positioning

• Sub-spindle:

  • Spindle nose: A2-6

  • Integrated motor power: 15 kW

  • Chuck: Kitagawa B-208, Ø210 mm

  • C-axis: 360° positioning

  • Parts transfer capability: Yes

• Milling/driven tools:

  • Turret capacity: 12 stations

  • Driven tool stations: 12

  • Driven tool motor power: 5.5 kW

  • Max driven tool speed: 6,000 rpm

  • Direct drive tooling, live tool milling, off-centre machining

• Turret and tooling:

  • Turret indexing time: 0.2 sec

  • Automatic tool measurement: Dual Renishaw tool measuring arms

• Mechanical construction:

  • Guideways: Hardened box ways (prismatic) on all axes

  • Spindle drive: Built-in integrated motors

  • Transmission: Direct drive (no belts/gearboxes)

  • Starting torque: 640 Nm

• CNC control:

  • Control: Mori Seiki MAPPS IV

  • Conversational programming, load monitoring, tool wear/consumption monitoring

• Cooling and lubrication:

  • Main spindle oil cooler: Daikin

  • Sub-spindle oil cooler: Daikin

• Connectivity:

  • USB, PCMCIA, RS-232

  • Bar feeder interface: Included

• Machining capabilities:

  • Simultaneous turning and milling

  • Y-axis machining

  • Polar coordinate interpolation

  • Off-centre drilling and tapping

  • Front and back working with sub-spindle

  • Complete part machining in a single setup

  • Complex multi-axis machining

• Typical applications:

  • Precision turned components

  • Aerospace parts

  • Automotive components

  • Hydraulic components

  • Medical components

  • General precision engineering

Additional equipment

• LNS automatic bar feeder, 1.5 m capacity

• Automatic parts catcher

• Chip conveyor: Side-mounted hinge belt type

• Independent chuck foot pedals (main and sub-spindle)

• Electrical transformer

• Documentation package:

  • Operation manual

  • Programming manual

  • Parts list

  • Electrical schematics

• Tool holders: Static and driven tool holders included

• Other optional equipment: Not included
