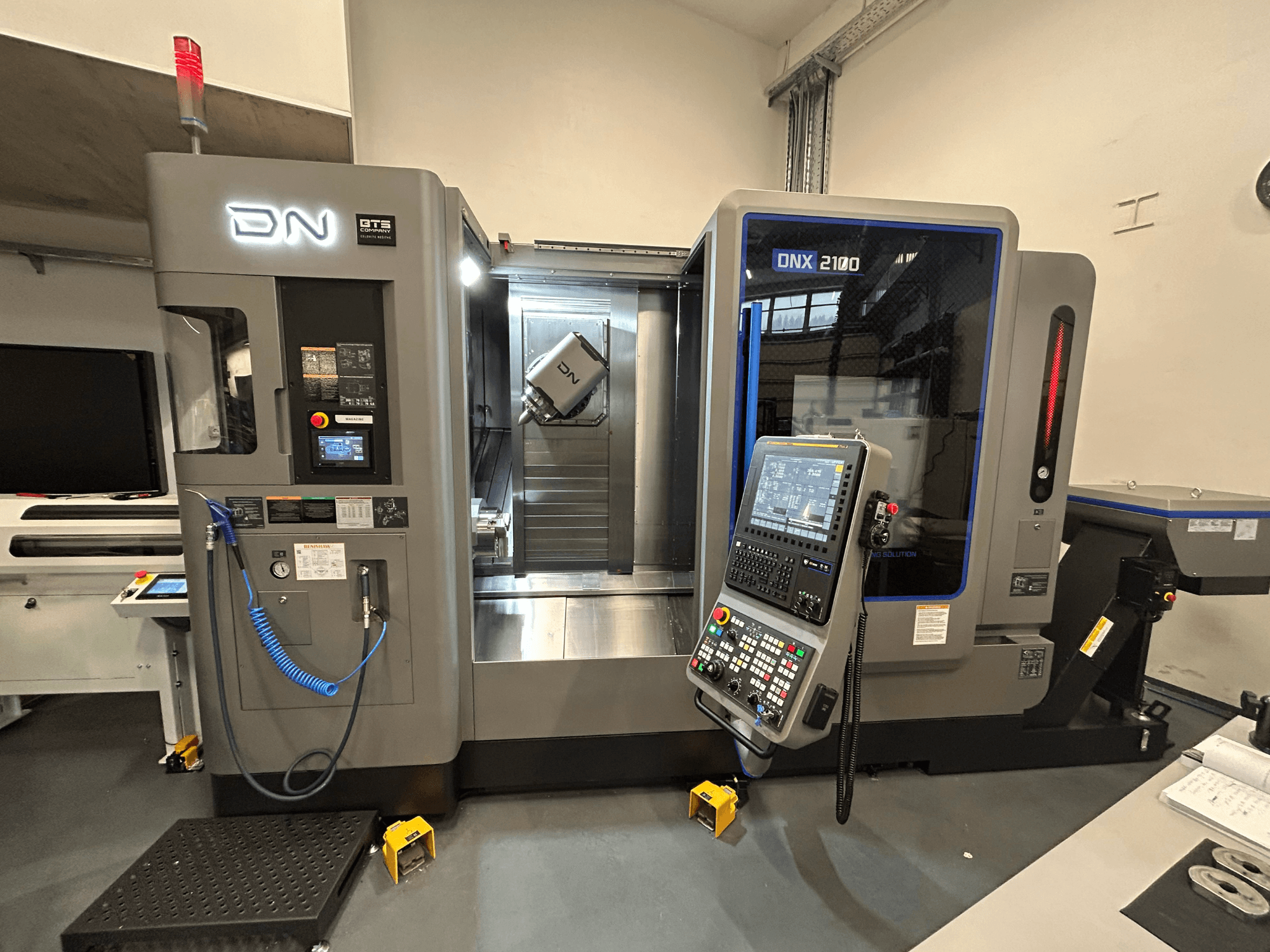

DN ONX 2100 CNC machine, front view, features control panel, work area, and tool. Equipped with safety light and operation indicators.
DN ONX 2100 CNC machine, front view, features control panel, work area, and tool. Equipped with safety light and operation indicators.

Thank you for your visit

This machine was recently sold.

Browse similar machines

DN SOLUTIONS - DNX 2100S AdvancedSI-TUR-DNS-2025-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis DN Solutions DNX 2100S Advanced was manufactured in 2025. It features a FANUC i-Series control, a 6-axis configuration including B and C axes, and a tool magazine with 60 positions. The machine offers full turn-mill capabilities, through-spindle coolant up to 70 bar, and a Renishaw probing system. Consider the opportunity to buy this DN Solutions DNX 2100S turn-mill centre. Contact us for more information about this machine.

Overview

  • brand: DN SOLUTIONS
  • year: 2025
  • MODEL: DNX 2100S Advanced
  • production hours: 7
  • application type: Turning
  • Location: Slovenia
  • machine type: Turn-Mill Centre
  • control unit brand: FANUC

Technical Information - DN SOLUTIONS DNX 2100S Advanced

Control Unit

  • Control Brand: FANUC
  • Control Model: i Series iPlus

Additional Information

  • Axes Configuration: 6 axes (X, Y, Z, B, C1, C2)

  • B-axis milling spindle (indexing accuracy 0.0001°)

  • Milling/Main Spindle:

  • Tool Interface: HSK-C63

  • Max Speed: 12000 rpm

  • Power: 18.5 / 15 kW

  • Max Torque: 58 Nm

  • B-axis Travel: 240° (±120°)

  • Left Spindle:

  • Chuck Size: Ø255 mm (10")

  • Max Speed: 4000 rpm

  • Power: 22 / 15 kW

  • Max Torque: 456 Nm

  • Right (Sub) Spindle:

  • Chuck Size: Ø210 mm (8")

  • Max Speed: 5000 rpm

  • Power: 18.5 / 15 kW

  • Max Torque: 326 Nm

  • Tool Magazine: 60 positions

  • Features: Driven tools, Full turn-mill capability

  • Through-Spindle Coolant: 70 bar

  • Programmable Coolant Pressure (7 steps)

  • Coolant Through Opposite Spindle

  • Oil Skimmer

  • Chuck Washing

  • Work Area Washing: 4.5 bar

  • Coolant Level and Pressure Monitoring

  • Oil Mist Collector Preparation

  • Hinged Belt Chip Conveyor

  • Renishaw Probing System (Measuring Head Included)

  • Automatic Tool Measurement

  • Radio Tool Measurement System RMP60

  • Manual Pulse Generator (MPG)

  • 3-Color Signal Tower

  • Automatic Bar Feeder: 1 meter (included)

  • Bar Feeder Interface Package

  • Parts Conveyor with Belt

  • Part Ejection from Sub Spindle

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
