DOOSAN - LYNX 2100LSYAGR-TUR-DOO-2020-00002

Rs. 9,095,948
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

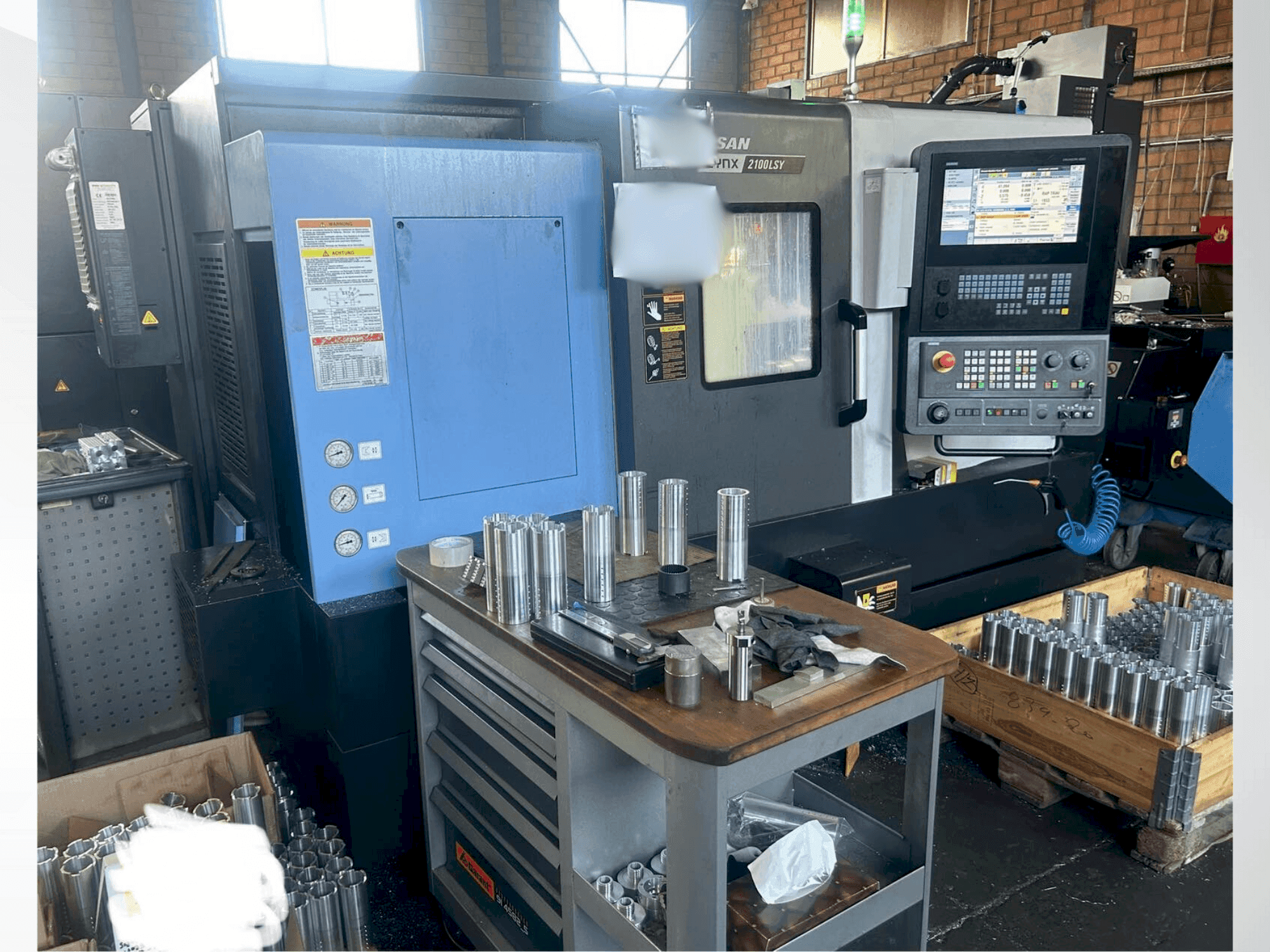

This 5-axis DOOSAN Lynx 2100LSYA lathe was manufactured in 2020. Featuring a SIEMENS SINUMERIK 828D control, it offers spindle speeds up to 6000 rpm and includes a sub-spindle for versatile operations. With a max turning diameter of 300 mm and length of 510 mm, it also has driven tools and rapid traverse rates up to 36 m/min. Consider this Doosan Lynx 2100LSYA lathe, ideal for advanced turning tasks. For more information, please reach out to us.

Overview

  • brand: DOOSAN
  • year: 2020
  • MODEL: LYNX 2100LSYA
  • application type: Turning
  • Location: Greece
  • machine type: Turn-Mill Centre
  • control unit brand: SIEMENS

Technical Information - DOOSAN LYNX 2100LSYA

Control Unit

  • Control Brand: SIEMENS
  • Control Model: SINUMERIK 828D

Movement

  • X-axis Travel: 205 mm
  • Y-axis Travel: 105 mm
  • Z-axis Travel: 560 mm

Technical Specification

  • Spindle Speed: 6000 RPM

Additional Information

Additional equipment

  • OD and face tool holder of main spindle// Double OD and face tool holder of main and sub spindle
  • ID tool holder of main spindle// Double ID tool holder of sub spindle
  • Triple ID tool holder
  • U-Drill cap of Main and sub spindle
  • Straight (short) milling tool unit
  • Anglular an Anglular (offset) milling tool unit
  • Boring tool sleeves of main and sub spindle// U-drill sleeves
  • Milling adapters
  • SERVO 24ST turret (mechanism/station)
  • BMT-45P 20/32 mm Holder mounting type tool size (turning/boring)

Machine Benefits

Qualitative Machine Benefits

  • Dvanced control system ensures high precision and operational efficiency.

Technical Machine Benefits

  • Maximum turning diameter: 300 mm
  • Maximum turning length: 510 mm
  • Sub-spindle
  • Driven tools
  • Counter spindle
  • High-speed operations with multiple spindle configurations.
  • Chucks of the main spindle has hard jaws and that of sub spindle has a set of soft jaws.
  • Machine is also equiped with an extra module from siemens for in process tool measuring cycles for tool breakage detection.

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
