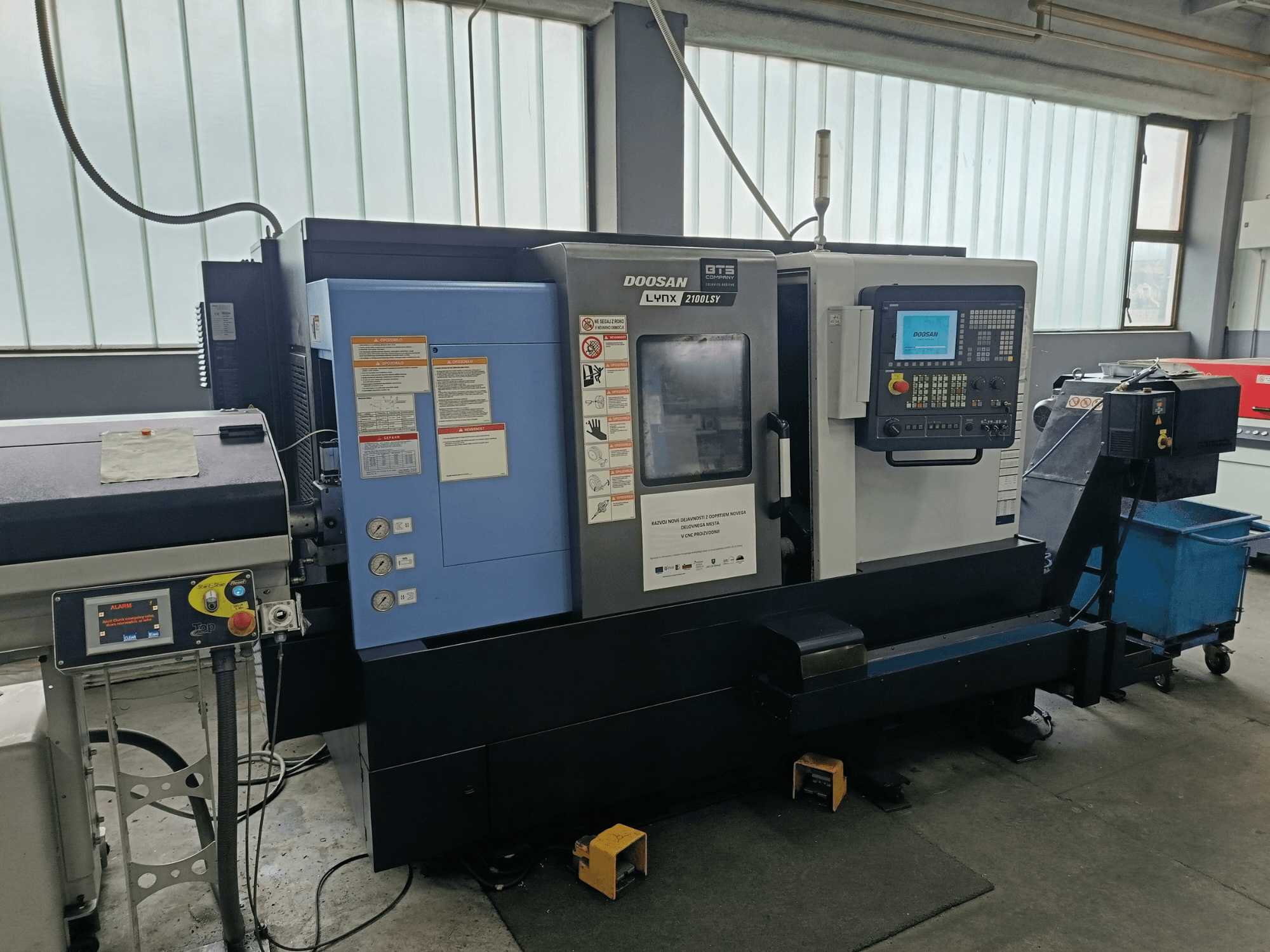

This 4-axis DOOSAN LYNX 2100 LSY was manufactured in 2019. It features a Y-axis for multi-tasking operations, a 12-station turret with live tooling, and a hydraulic 3-jaw chuck. The machine is equipped with a bar feeder system, allowing for efficient serial production. If you are looking to get high-quality turning and milling capabilities, consider the DOOSAN LYNX 2100 LSY turn-mill centre we have for sale. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2019
- MODEL: LYNX 2100 LSY
- application type: Turning
- Location: Slovenia
- machine type: Turn-Mill Centre
- control unit brand: SIEMENS
Technical Information - DOOSAN LYNX 2100 LSY
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 828D
Movement
- Number of Axes: 4
- X-axis Travel: 205 mm
- Y-axis Travel: 105 mm
- Z-axis Travel: 560 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
Additional Information
Main features:
Main spindle + sub-spindle
Y-axis for multi-tasking operations
12-station turret (24 indexing positions)
Live tooling (driven tools)
Tool interface: BMT45
Workholding/Capacity (on machine):
Hydraulic 3-jaw chuck: 170 mm
Delivery scope:
Transport to customer
Machine installation and commissioning
Basic operator training (14 hours)
Key advantages:
Y-axis + sub-spindle → full machining capability
Live tooling → turning and milling in one setup
Bar feeder → ideal for serial production
Automated part handling → increased productivity
Additional equipment
Bar feeder: Top Automazioni Fusion 350 (Ø20–50 mm, up to 3200 mm length)
Additional 3-jaw chuck: 135 mm
Collet system, capacity 5–65 mm
Chip conveyor (belt type, side discharge)
Parts catcher for sub-spindle
Oil skimmer
High-pressure coolant system (5–7 bar, 20 µm filtration)
Automatic tool measurement
Spindle and axis load monitoring system
3-color signal light
Parts handling arm (for sub-spindle unloading)
Tooling package:
2x straight driven tool holders
2x angular driven tool holders
1x extended angular holder
1x set of turning tool holders
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
