DOOSAN - PUMA TT 1800 SYCH-TUR-DOO-2012-00001

Rs. 8,556,731
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

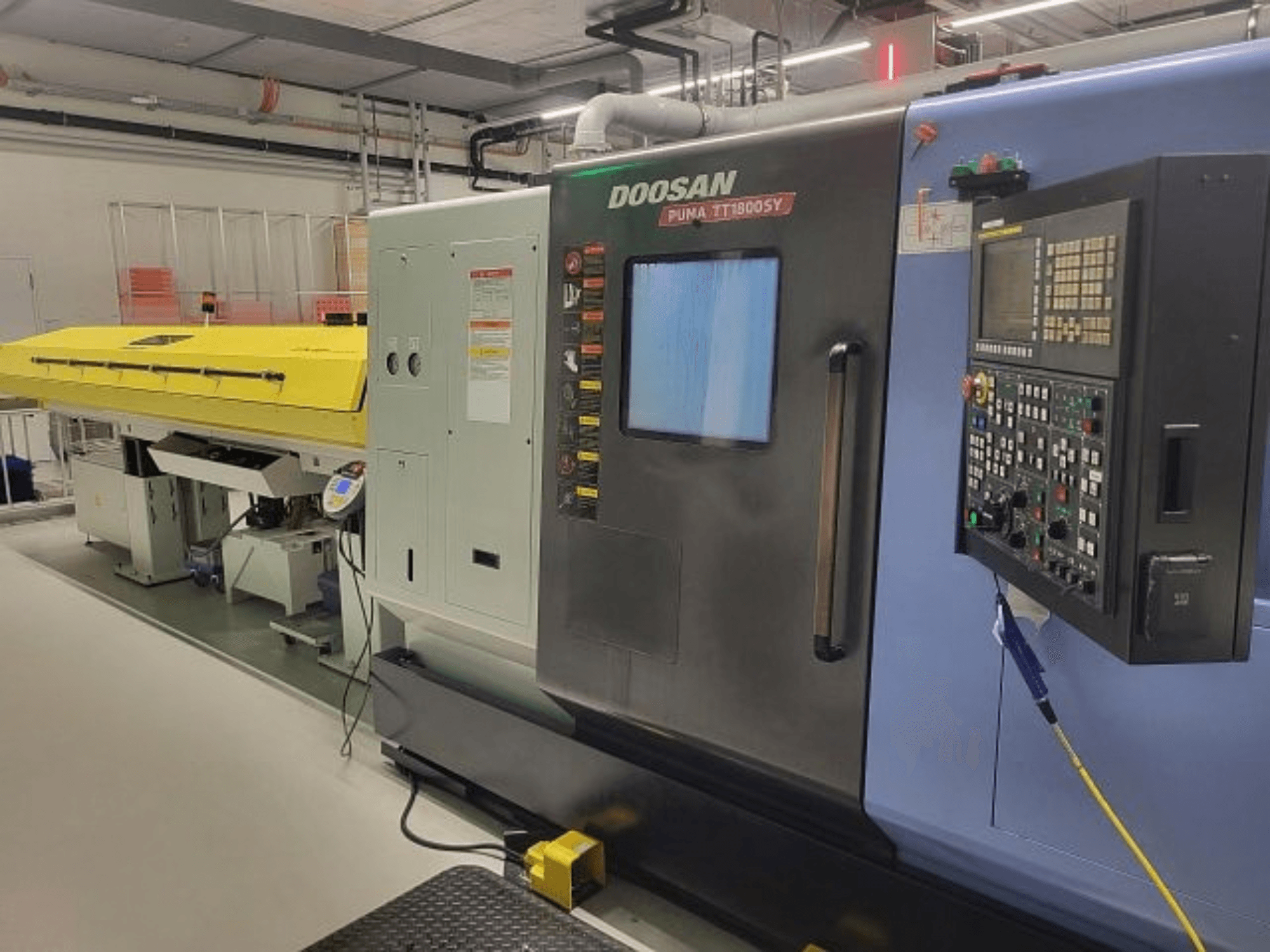

This 8-axis DOOSAN PUMA TT 1800 SY was manufactured in 2012. It features a maximum turning diameter of 230 mm and a maximum workpiece length of 700 mm. The machine is equipped with two spindles and two turrets, providing enhanced machining capabilities. If you are looking to get high-quality turning and milling capabilities, consider the DOOSAN PUMA TT 1800 SY turn-mill centre we have for sale. Contact us for further details.

Overview

  • brand: DOOSAN
  • year: 2012
  • MODEL: PUMA TT 1800 SY
  • production hours: 41280
  • application type: Turning
  • Location: Switzerland
  • machine type: Turn-Mill Centre
  • Available from: 01/12/2026
  • control unit brand: FANUC

Technical Information - DOOSAN PUMA TT 1800 SY

Control Unit

  • Control Brand: FANUC
  • Control Model: Series 31i-MODEL A

Dimensions

  • Machine Height: 2200 mm
  • Machine Length: 2800 mm
  • Machine Weight: 9000 kg
  • Machine Width: 1630 mm

Movement

  • Number of Axes: 8
  • X-axis Travel: 165 mm
  • Z-axis Travel: 700 mm

Technical Specification

  • Counter Spindle: Yes
  • Driven Tools: Yes

Additional Information

- Operating Hours: 41,280 h (as of 08/2026)

- Spindle Hours: 24,632 h (as of 08/2026)

- Total Machined Parts (TEIL GESMT): 14,162 pcs

- Number of Spindles: 2 (Main Spindle & Counter/Sub Spindle)

- Main Spindle Speed Range: 50 - 5,000 rpm

- Counter Spindle Speed Range: 50 - 6,000 rpm

- Number of Turrets: 2 (Tool holders)

- Powered/Driven Tools: Yes

- C-Axes: 2

- Y-Axes: 1 (Upper turret)

- Max. Turning Diameter: 230 mm

- Max. Workpiece Length: 700 mm

- Power Supply Voltage: AC 200/220V, 3-Phase (PE, 50/60 Hz) / 400 V, 50 Hz

- Rated Power (Nennleistung): 75.21 kVA

- Full Load Current (Volllaststrom): 197.37 A

- Interrupting Capacity (Unterbrechungsstrom): 13 kA

- Short-Circuit Current (Kurzschluss-Strom): 25 kA

- Schematic Output (Schaltplan-Ausgabe): PT1H31AA02

- Additional Equipment & Accessories:

* FMB turbo 8-80/3200 bar feeder

* Chip conveyor

* Coolant system with belt filter

* Internal coolant supply (IKZ) & supply via turret head

* Hydraulic power unit

* Large selection of tool holders, collet chucks (REGO-FIX / ER), and turning inserts

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
