➤ Used DMG MORI Gildemeister CTX 1250 TC | Turn-Mill

Show in original language

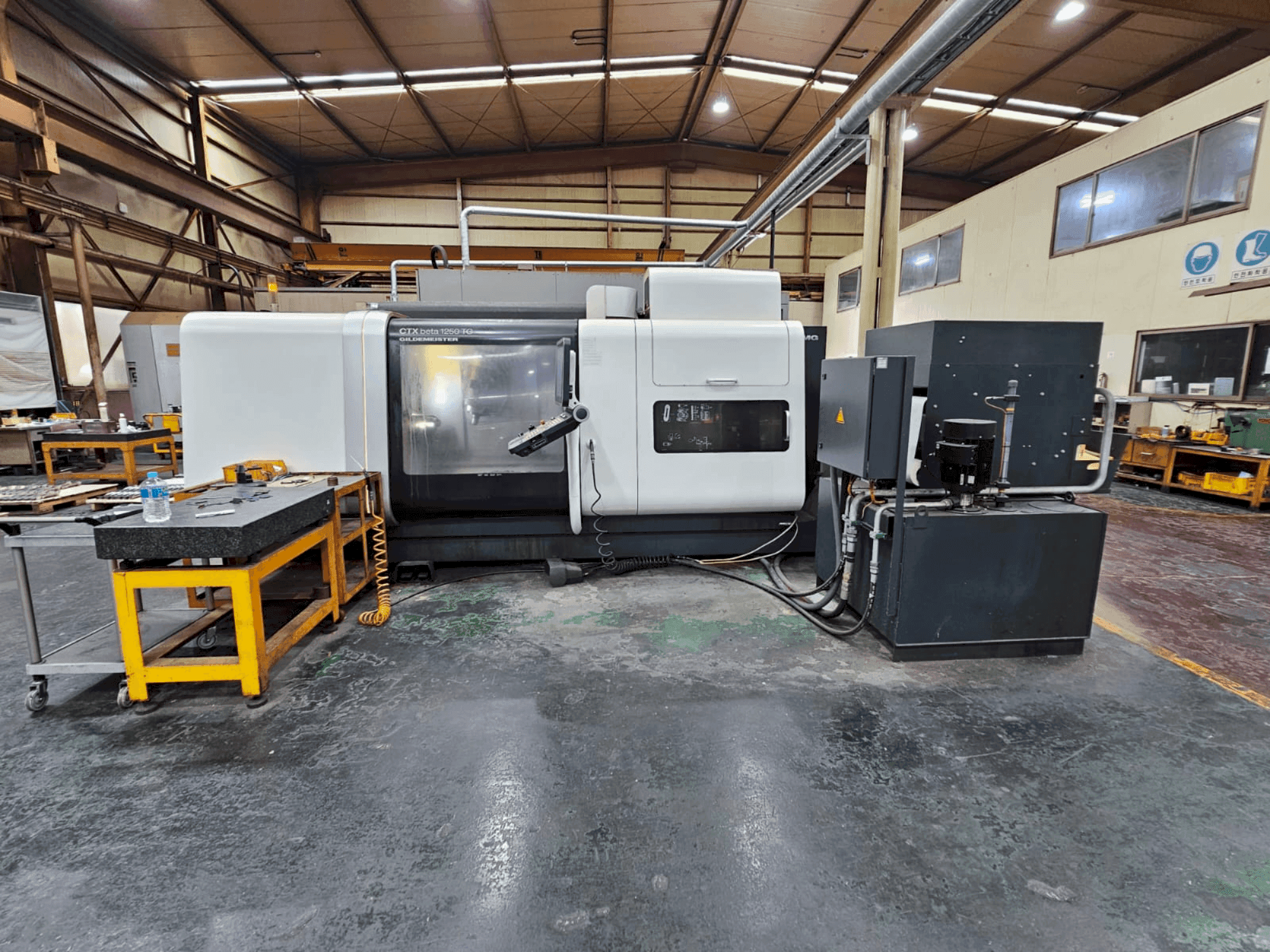

This 5-axis DMG MORI Gildemeister CTX 1250 TC was manufactured in 2012, featuring a turning length of 1250 mm and a main spindle speed up to 5000 min⁻¹. It includes a Y-axis travel of 100 mm, B-axis ±110°, and a tool magazine with 24 positions. Ideal for complex machining tasks, it also comes equipped with a Siemens SINUMERIK 840D control system. If you are looking to get high-quality turn-mill capabilities, consider the DMG MORI Gildemeister CTX 1250 TC machine we have for sale. Contact us for more information.

Overview

brand: DMG MORI
year: 2012
MODEL: Gildemeister CTX 1250 TC
application type: Turning
Location: South Korea
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - DMG MORI Gildemeister CTX 1250 TC

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 840D Ergoline

Movement

Number of Axes: 4

Additional Information

Additional equipment

Coolant pump 6 bar, 201 l/min
Chuck rinsing device outside at main spindle
Coolant equipment external on turning/milling spindle
Hinged type chip conveyor, discharge height 1200 mm
Cooling system for spindle motor, turning/milling spindle, and B-axis torque motor
Connection for oil mist extractor
Machine prepared for workpiece handling robot WH3 (front loading)
Environmental packages for unstable supply and increased ambient temperature

Machine Benefits

Qualitative Machine Benefits

In-process measuring device and tool pre-setting probe with laser measuring device
High flexibility with excentric turning and tooth system milling capabilities
Frequency 60 hz (optional)
Additional machine documentation on cd-rom

Technical Machine Benefits

Operating system: windows
Control options include shopturn or heidenhain plus it with ergoline use interface, ethernet interface
Integrated spindle motor ism 76
Ac main drive rating: 25/34 kw (33. 51/45. 57 hp)
Y-axis travel: 100 mm
B-axis ±110° with pneumatic locking
Tool acceptance: hsk-63a (din 69893)
Tool magazine: disc type with 24 positions; optional 48-fold chain magazine with double gripper, max tool dia. 80 mm, max length 300 mm, max weight 8 kg
Automatic tailstock, hydraulic positionable, including rotary centre rest
5-axis simultaneous machining capability

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
