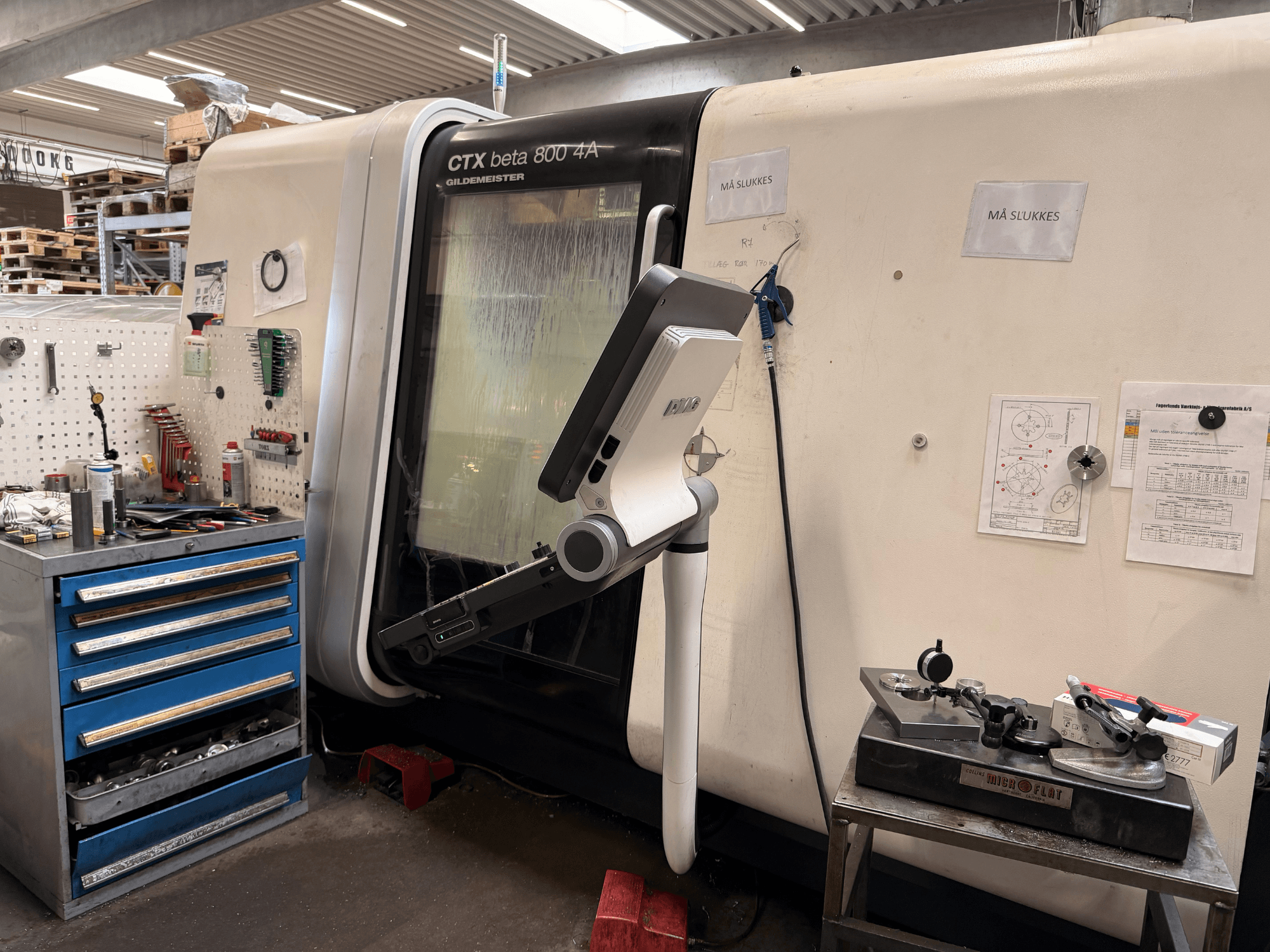

This 4-axis DMG MORI CTX Beta 800 4a was manufactured in 2013. It features a powerful Mailspindle ISM 102 with a speed of 4,000 rpm and an efficient 8/20 bar coolant system with a 600 L capacity. The machine is equipped with a 16-place star turret and a barfeeder for enhanced productivity. If you are looking to get high-quality turning capabilities, consider the DMG MORI CTX Beta 800 4a turn-mill centre we have for sale. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2013
- MODEL: CTX Beta 800 4a
- production hours: 35000
- application type: Turning
- Location: Denmark
- machine type: Turn-Mill Centre
- Available from: 31/07/2026
- control unit brand: SIEMENS
Technical Information - DMG MORI CTX Beta 800 4a
Control Unit
- Control Brand: SIEMENS
- Control Model: 840 D
Movement
- Number of Axes: 4
- X-axis Travel: 300 mm
- Z-axis Travel: 800 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Power: 48 kW
- Spindle Speed: 4000 RPM
Additional Information
Coolant system: 8/20 bar, 600 L, with paper band filter
External coolant for main and sub spindles
Draw tube: 104 mm
Turrets: 2 x 330 mm VDI30, 16-station star turrets
Additional equipment
Bar feeder IF
IRCO bar feeder SIMAG 80.1-R, 3200 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
