➤ Used DMG Gildemeister GMX 400 linear | Turn-Mill Centre

Show in original language

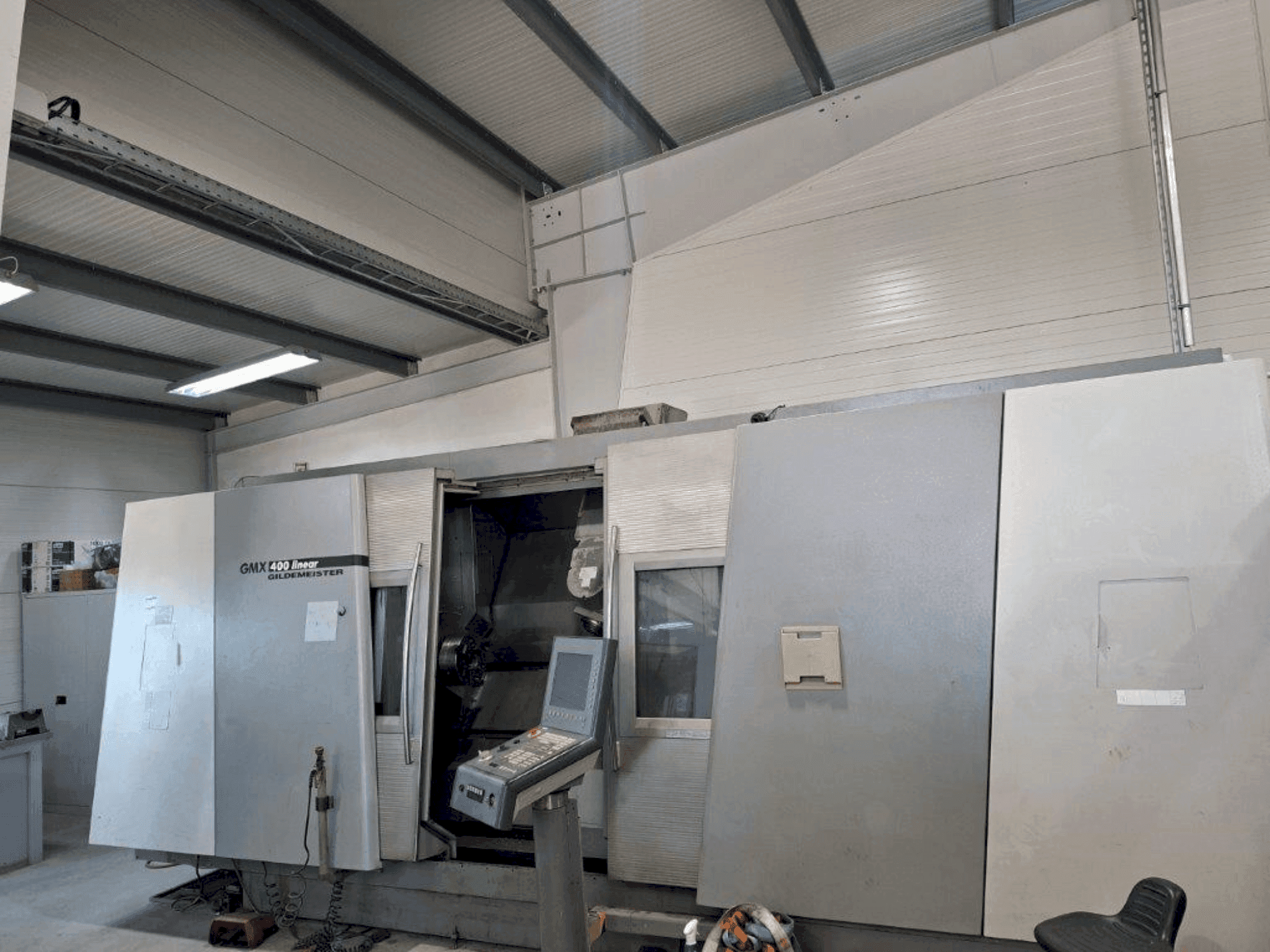

This 7-axis DMG Gildemeister GMX 400 linear was manufactured in 2004, featuring a maximum turning diameter of 640 mm and a turning length of 1,585 mm. It includes a Sinumerik 840D Powerline control, a milling spindle with a max speed of 12,000 rpm, and a tool magazine with up to 120 positions. If you are looking to get high-quality turn-mill capabilities, consider the DMG Gildemeister GMX 400 linear machine we have for sale. Contact us for more information.

Overview

brand: DMG
year: 2004
MODEL: Gildemeister GMX 400 linear
production hours: 18504
application type: Turning
Location: Austria
machine type: Turn-Mill Centre
availability: Immediately
control unit brand: SIEMENS

Technical Information - DMG Gildemeister GMX 400 linear

General Data

Machine weight: 20000 kg

Control Unit

Brand: SIEMENS
Model: Sinumerik 840D Powerline

Main drive

Spindle speed range: 4000 1/MIN
Number of axis: 7

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 110 mm

Turret

Number of turrets: 1

Tools

Number of index: 60
Number of stations: 12
Max tool length: 350 mm
Type of tool holder: HSK-A63

Additional equipment

- Oil mist extraction
- Coolant tank with belt filter system
- Internal coolant system with 80 bar pressure
- Approx. 30 tool holders

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Drive power - main spindle: max. Torque 600 nm
- - B-axis: +/- 120°
- - C-axis resolution: 0. 001° and 1°
- - Maximum turning diameter: 640 mm
- - Turning length: 1585 mm
- - Standard turning diameter: 400 mm
- - Distance between centers of main spindle: max. Bar diameter 90 mm
- - Chuck diameter: 250 mm (max. 400 mm)
- - Number of tool positions: 12 positions
- - Turret tool holder: 40 mm din 69880

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
