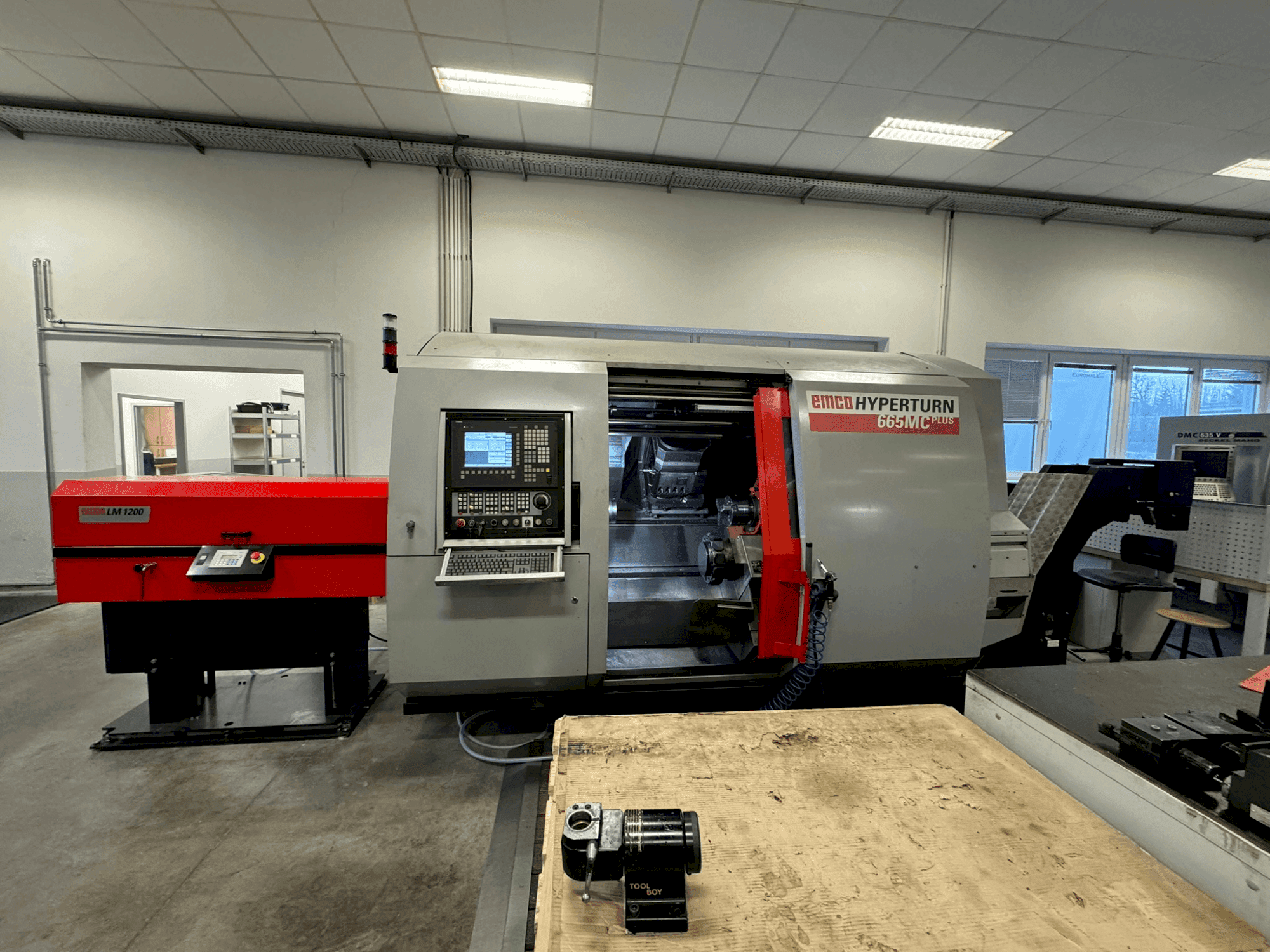

EMCO - Hyperturn 665MC PlusAT-TUR-EMC-2008-00001

Additional equipment

• - Tool turret: 12-position tool VDI 30 radial with directional logic for up to 12 driven tool stations
• - B-PowerMill: Motorised milling spindle with 24-position tool magazine, 210° swivelling range
• - Optional tool package: Includes stationary and driven tool holders, collet chuck holders, reducing sleeves, and operating spanners
• - Hollow clamping cylinder with draw tube / Part ejector and flushing through the counter spindle / Part pick-up device for finished parts
• - Part pick-up device for finished parts / Coolant device in the chip conveyor / High-pressure pump (14 bar) and fine filter
• - Flushing pumps (3.7 bar) / Control cabinet air conditioning unit / Electrostatic oil mist separator
• - Hydraulic unit / Machine light / Interface for foot switch / Signal lamp
• - Documentation including handwheel, PC keyboard, network preparation, tool monitoring, turning window, cleaning gun
• - Clamping device for main spindle: Hainbuch BZI 80 centre pull /

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Counter spindle: 22 kw / counter spindle: 0-7000 rpm
  • - Main spindle: kk 6 (passage 65 mm) / counter spindle: kk 6
  • - Y-axis travel range: +/- 50 mm
  • - C-axis for main and counter spindle
  • - Counter spindle: 3-jaw chuck 210 mm
  • - Approx. 40 capto c4 holders for milling spindle
  • - Loader lm 1200
  • - Machine does not have shopturn programming. It must be programmed using iso code, whereby simple cycles are available for drilling, milling, swiveling, etc.
