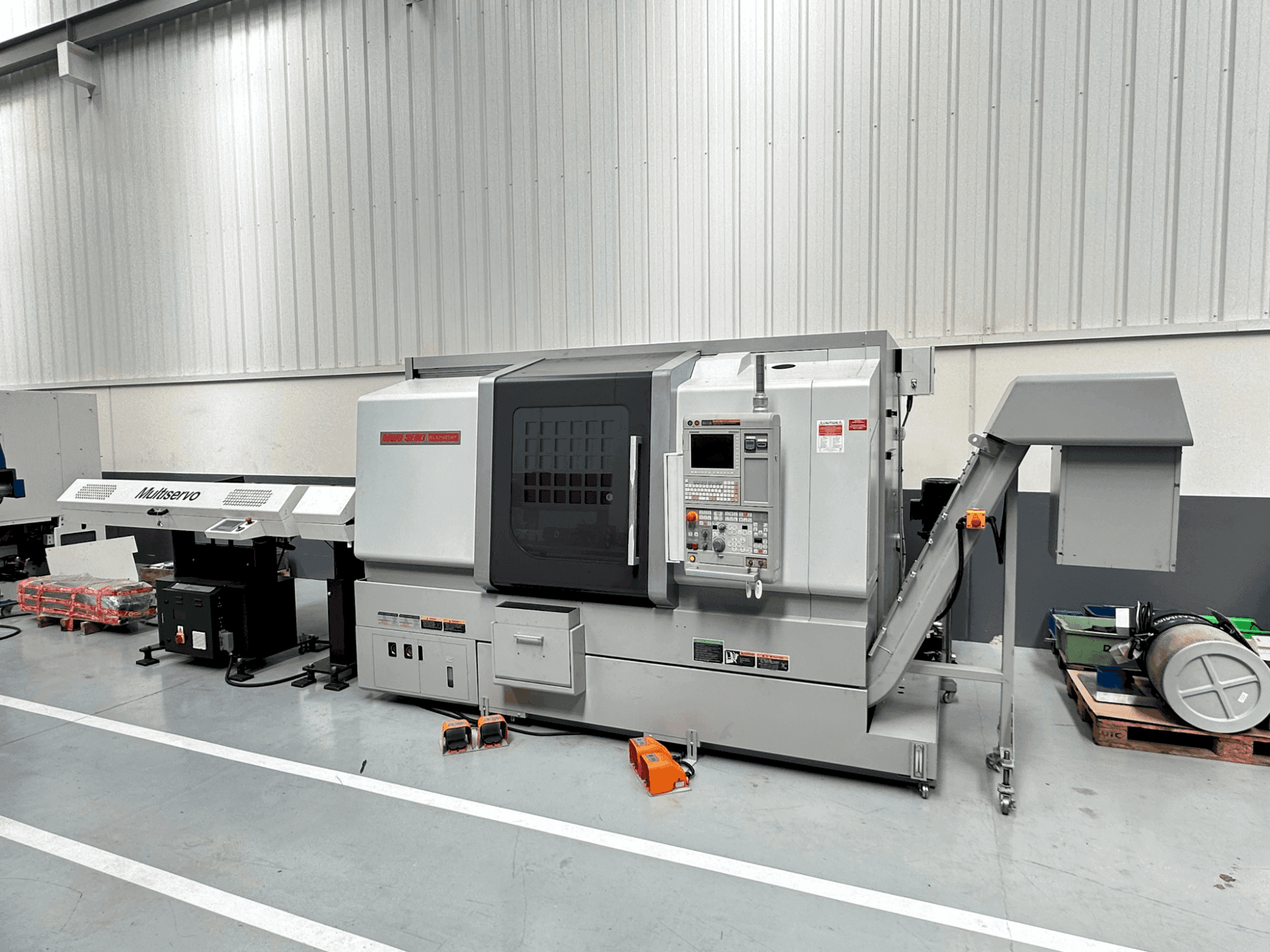

MORI SEIKI - NLX 2500 SY/700 ES-TUR-MOR-2010-00001

Machine Benefits

Technical machine benefits:

• Jog Feedrate X, Z, B, Y Axis: 0–5000 mm/min

• Max Cutting Diameter: 460 mm

• Max Cutting Length: 795 mm

• Bar Work Capacity: 80 mm

• Spindle Automatic Tool Setter: Included

• Sub-Spindle Tool Setter: Included

• Spindle Speed Ranges: 2

• Spindle Nose: JIS A2-8

• Through-Spindle Hole Diameter: 91 mm

• Total Power: 40 kVA

Extra information

Sub-Spindle:

C Axis in Sub-Spindle: Included

C Axis Index in Sub-Spindle: 0.001°

Sub-Spindle Speed: 6000 rpm

Sub-Spindle Speed Ranges: 1

Sub-Spindle Nose: JIS A2-5

Sub-Spindle Through Hole Diameter: 43 mm

Sub-Spindle Drive Motor: 11 / 7.5 kW

Sub-Spindle Chuck Ø: 170 mm

Head Chuck Ø: 250 mm

Media:

High Pressure Coolant: Included

Chip Conveyor: Included

Fume Extractor: Included

Automatic Barfeed: Hydrafeed Multiservo Mod MSV, Included

Part Catcher: Included

Turret:

Rotary Tool Positions in Turret: 12

Rotary Tool Spindle Rate: 6000 rpm

Tool Size: 25 × 25 mm

1 Radial Driven Tool Holder: Included

1 Axial Driven Tool Holder: Included
