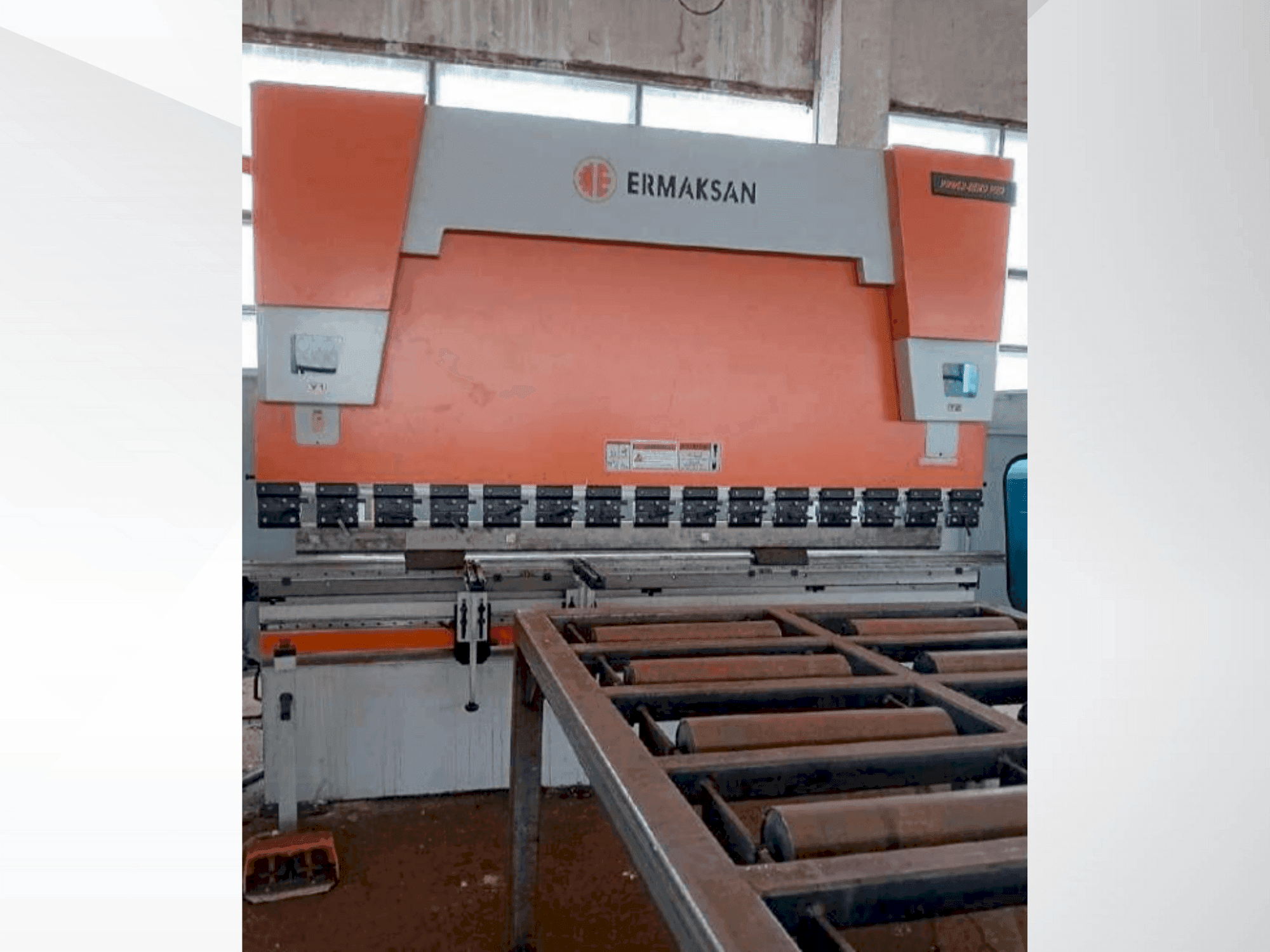

ERMAKSAN - POWER BEND PRO 3100-175LT-BEN-ERM-2018-00001

Machine Benefits

Qualitative Machine Benefits

• Cybelec cybtouch 12 ps 2d control panel with touch screen
• High-quality hydraulics hoerbiger
• Hydraulic cylinders are made of high-strength hardened steel and chrome plated, which guarantees their durability
• Siemens electrical components
• Automatic compensation table (lower table lifting)
• Mechanical height adjustment of the rear support along the r axis
• Bending power 175 t // bending length 3100 mm
• Oil reservoir capacity 200l

Technical Machine Benefits

• Givi or heidenhain bending beam positioning rulers +- 0. 0025 mm
• Precision x-axis rear mounts: +- 0. 05 mm // x axis 800 mm // x asies speed 500 mm/sec // r axis 350 mm/sek
• 2 rear supports for positioning sheets // 2 front sheet supports moving along guides
• System for quick fixation of bending knives // rear light barrier
• Distance between column 2600 mm // depth 410 mm - height 900 mm
• Engine power 15 kw
• Leuze front light barrier, necessary for rapid movement of the press
• Matrix 4b; b-16-22-35-50, along the entire length
• Bending knife: ps. 135. 85. R08, along the entire length
• Matrix 4v; v16-22-35-50 // bbending power 175 tlade: rolleri ps. 135. 85. R08 + extra blade and matrix

Extra Information

Machine still under power
