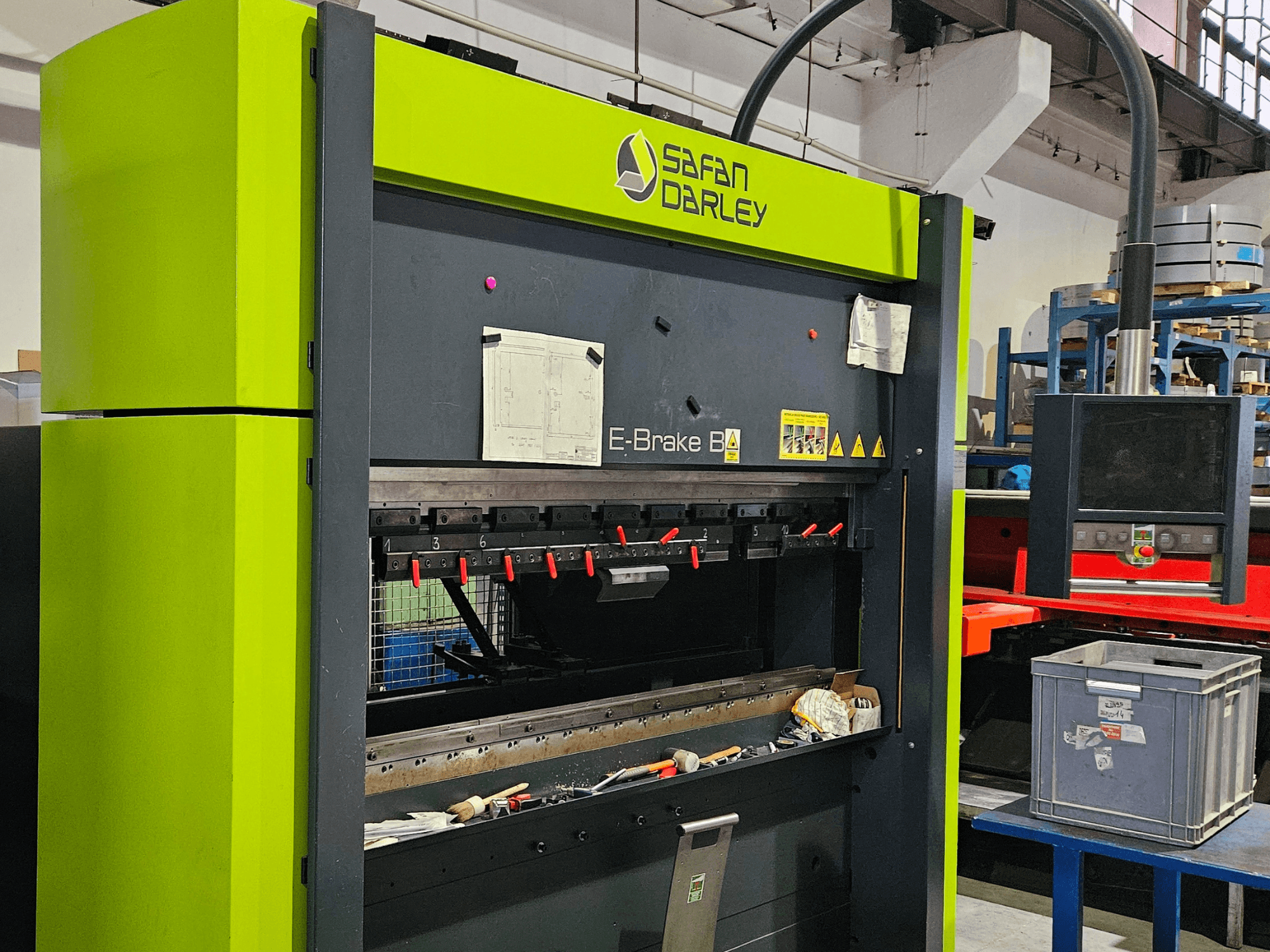

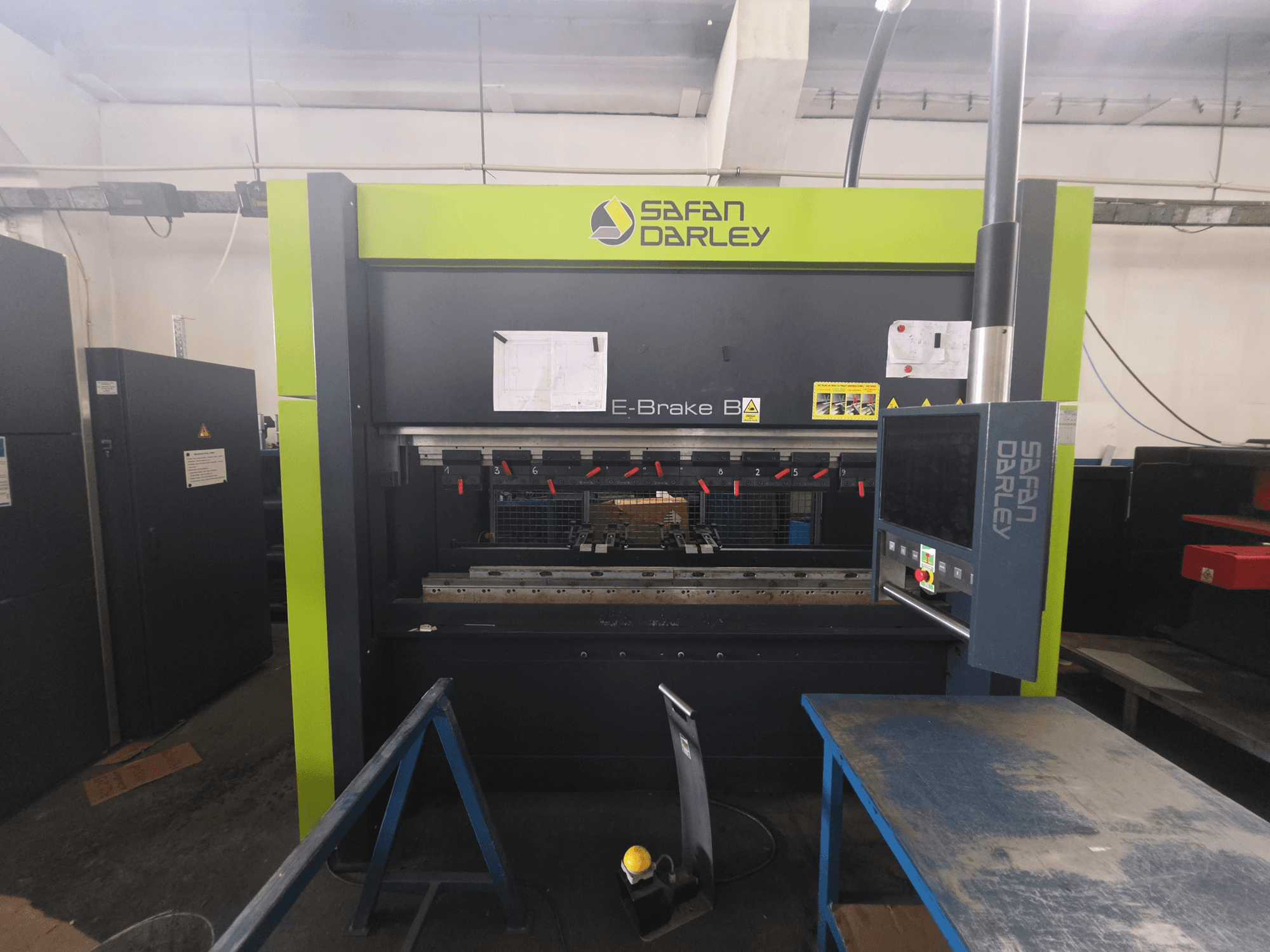

This 4-axis SAFAN E-Brake B 50-2050 was manufactured in 2017. It features a maximum pressing force of 500 kN and a bending length of 2050 mm. The machine includes a programmable backgauge with a maximum stroke of 550 mm and a robust weight of 4750 kg. If you are looking to get high-quality bending capabilities, consider the SAFAN E-Brake B 50-2050 press brake we have for sale. Contact us for further details.
Overview
- brand: SAFAN
- year: 2017
- MODEL: E-Brake B 50-2050
- application type: Bending
- Location: Poland
- machine type: Press Brake
Technical Information - SAFAN E-Brake B 50-2050
Dimensions
- Machine Weight: 4750 kg
Movement
- Number of Axes: 4
Technical Specification
- Bending Length: 2050 mm
- Pressing Force: 500 Kn
Additional Information
Control unit: EC 20
Q-dimension: 650 mm
Upper beam stroke: 300 mm
Speeds:
Approach: 110 mm/s
Bending: 10 mm/s
Bending with light curtain: 10 mm/s
Return: 110 mm/s
Backgauge:
Maximum stroke: 550 mm
Maximum speed: 350 mm/s
Programmable axes: X, R
Tool clamping:
Upper: European Style adapter
Lower: OB-S-3 table with mechanical clamping
Front supports: Standard, load capacity 25 kg each
Safety:
Light curtain: 28.5 mm gap, programmable, vertical, fixed
Stopping time of upper beam: < 92 ms
Minimum safety distance: 185 mm
Electrical:
Power supply: 3 × 400 V / 50–60 Hz / N / PE
Installed power: 11 kW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
