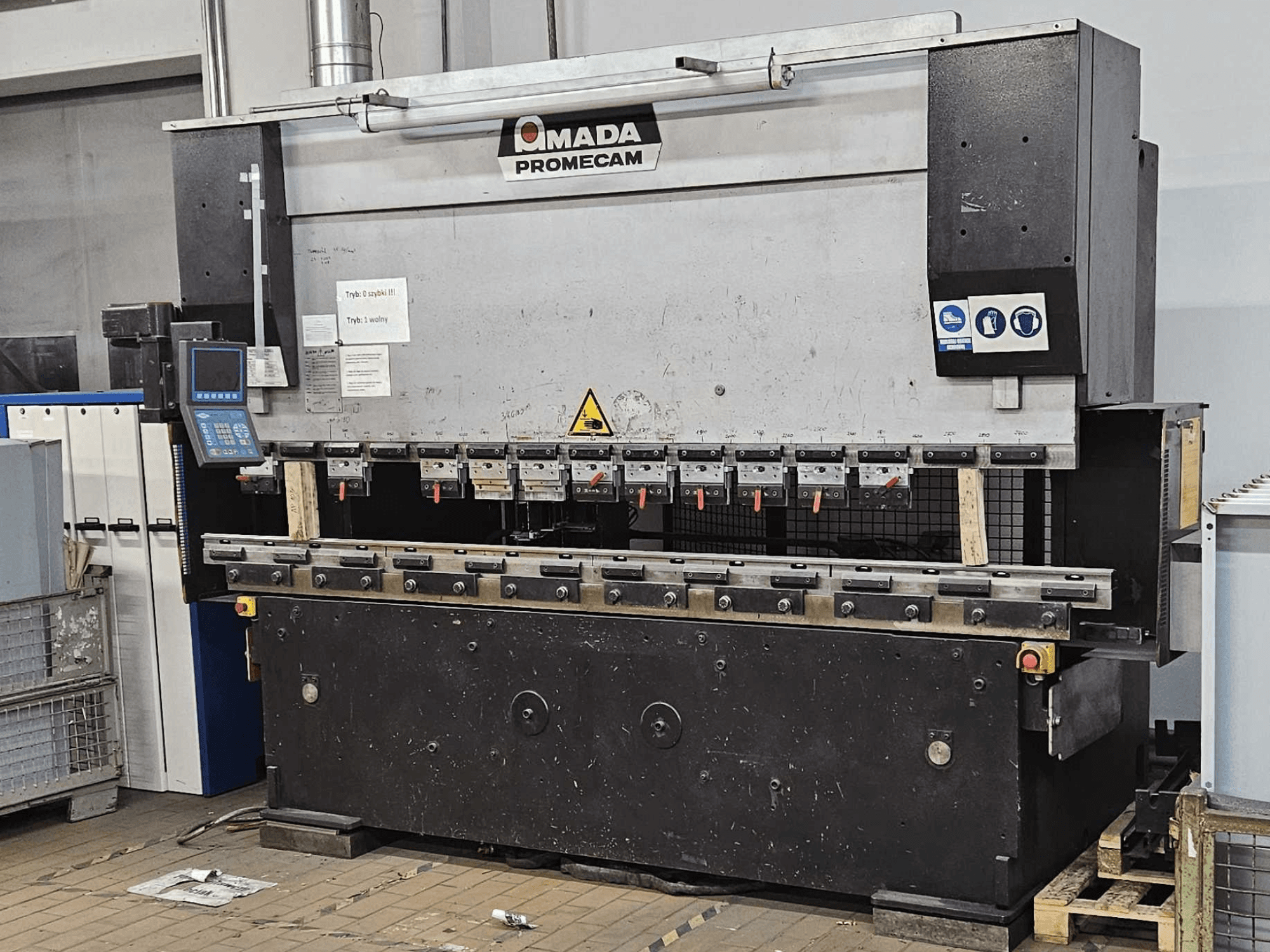

This 8-axis AMADA HFBO 100-30 press brake was manufactured in 1998. It features a maximum press force of 1000 kN and a bending length of 3100 mm, providing robust capabilities for various applications. The machine has undergone software upgrades and cylinder replacements in 2024. If you are looking to get high-quality bending capabilities, consider the AMADA HFBO 100-30 press brake we have for sale. Contact us for further details.
Overview
- brand: AMADA
- year: 1998
- MODEL: HFBO 100-30
- production hours: 78026
- application type: Bending
- Location: Poland
- machine type: Press Brake
Technical Information - AMADA HFBO 100-30
Dimensions
- Machine Weight: 6750 kg
Movement
- Number of Axes: 6
Technical Specification
- Bending Length: 3100 mm
- Pressing Force: 1000 Kn
Additional Information
Distance between frames: 2700 mm
Maximum stroke: 200 mm
Number of axes: 8 (Y1, Y2, X1, X2, R1, R2, Z1, Z2)
Voltage: 400/415 V
Frequency: 50 Hz
Nominal current: 199 A
Number of phases: 3
Installed power: 9 kW
Noise level: <70 dB(A)
Stopping time: 60 ms
Stopping distance: 6 mm
Upgrades: Software upgraded in 2024
Maintenance: Cylinders replaced in 2024
Inspection: The machine can be inspected and tested on site by the customer if required
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
