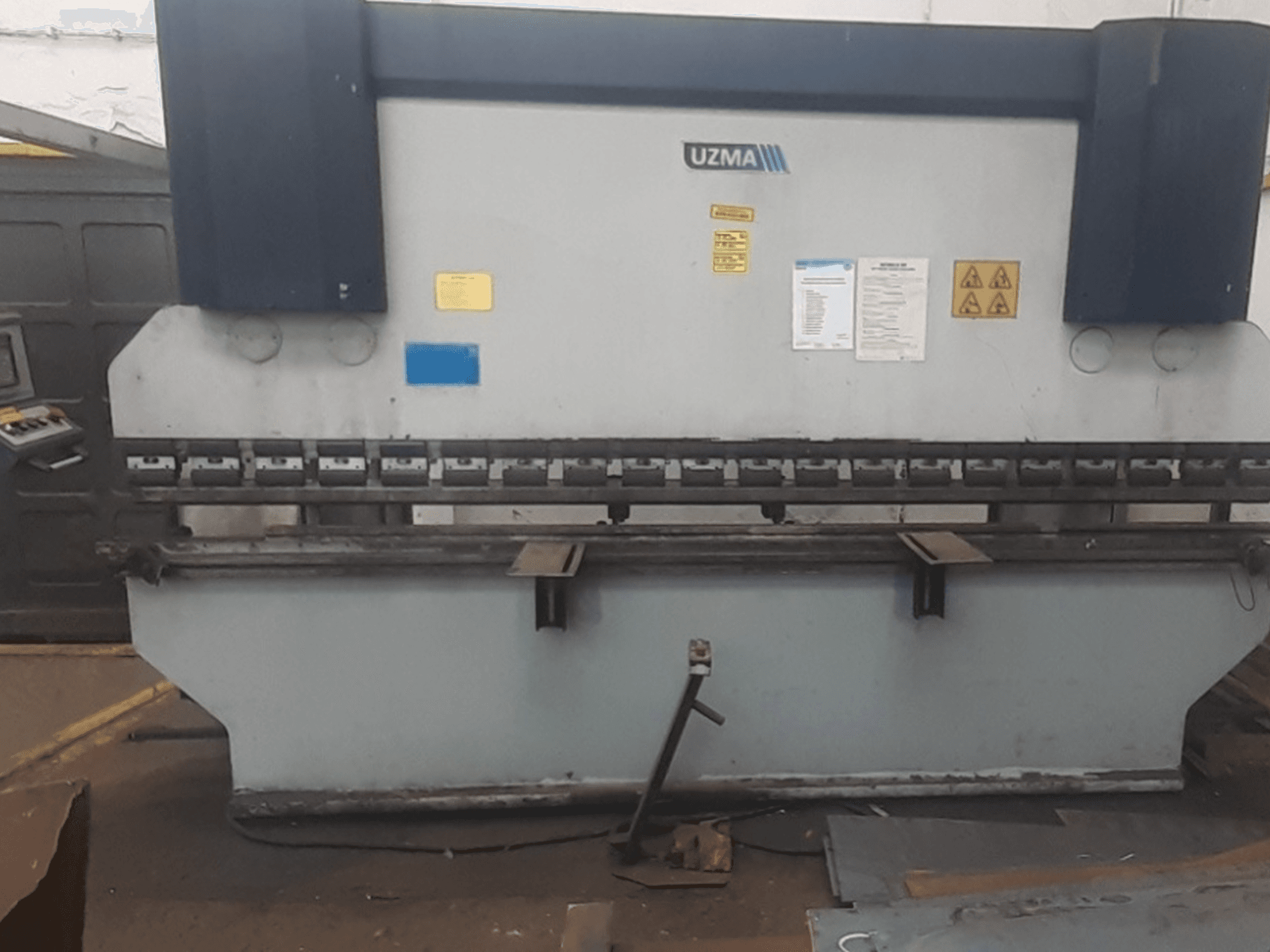

This 3-axis UZMA HAP 40160 was manufactured in 2009. It features a bending force of 160 tons and a bending length of 4100 mm, providing robust capabilities for various applications. The machine includes a throat depth of 350 mm and a table height of 910 mm. If you are looking to get high-quality bending capabilities, consider the UZMA HAP 40160 hydraulic press brake we have for sale. Contact us for further details.
Overview
- brand: UZMA
- year: 2009
- MODEL: HAP 40160
- application type: Bending
- Location: Poland
- machine type: Press Brake
- control unit brand:
Technical Information - UZMA HAP 40160
Dimensions
- Machine Height: 2650 mm
- Machine Length: 5600 mm
- Machine Weight: 11500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 500 mm
Technical Specification
- Bending Length: 4100 mm
- Max. Stroke: 180 mm
- Pressing Force: 1600 Kn
Additional Information
Technical specifications:
Distance between columns: 3100 mm
Daylight opening: 385 mm
Throat depth: 350 mm
Table height: 910 mm
Speeds:
Approach speed: 80 mm/sec
Working speed: 9 mm/sec
Return speed: 80 mm/sec
Electrical data:
Main motor power: 15 kW
Voltage: 400 V
Number of phases: 3 phases
Frequency: 50 Hz
Overall full load current: 32 A
Axis movement:
X-axis movement distance: 500 mm
R-manual movement distance: 130 mm
Safety:
Minimum light curtain distance from tool center: 280 mm
Control: ELGO P8822 (NC Control)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
