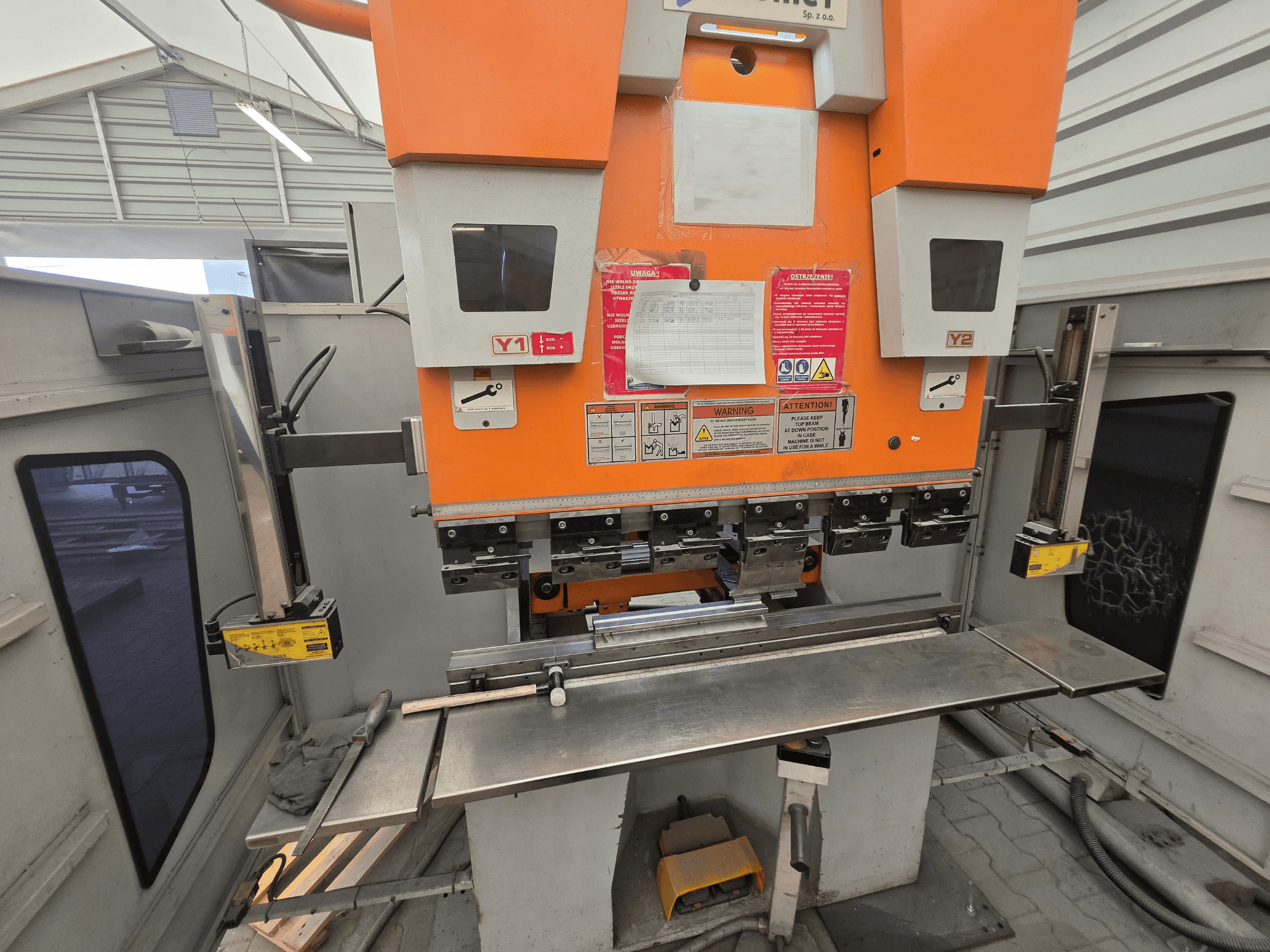

ERMAKSAN - Speed-Bend Pro 1270x60PL-BEN-ERM-2021-00001

• CNC axes: Y1, Y2, X, R, Z1, Z2

• Bending unit:

  • Max. approach speed: 160 mm/s

• CNC backgauge:

  • CNC-controlled axes: X, R, Z1, Z2

  • X-axis travel: 500 mm

  • X-axis speed: 500 mm/s

  • R-axis travel: 250 mm

  • R-axis speed: 350 mm/s

  • Servo-motorized CNC backgauge

  • X-axis servo motor with ball-screw drive

  • Z1 and Z2 CNC-controlled backgauge fingers

  • Backgauge positioning accuracy: up to 0.05 mm

• Safety:

  • Side safety guards

  • Safety system for bending area

• Tooling style: Amada (Promecam)

• Electrical:

  • Main motor power: 7.5 kW

  • Power supply: 400 V, 3-phase, 50 Hz

  • Nominal current: 18 A

  • Control voltage: 24 V

Additional equipment

• Segmented upper punch tooling

• Multi-V lower die

• Front sheet support table / support arms

• Foot pedal control
