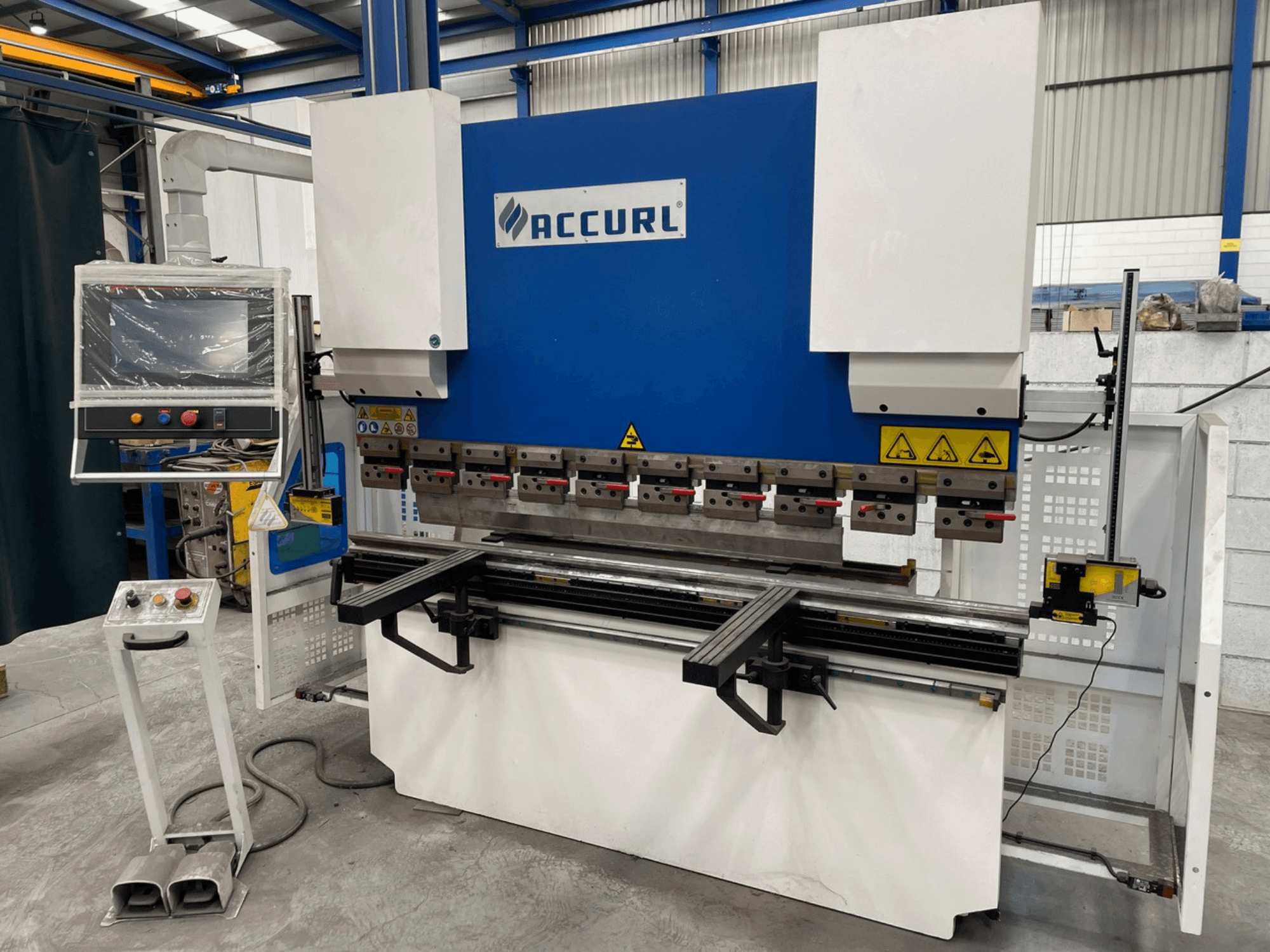

This 3-axis ACCURL M37-63Tx2000 was manufactured in 2021. It features a maximum press force of 630 kN and a working length of 2000 mm, making it suitable for various bending applications. The machine has a rapid approach speed of 100 mm/s and a working speed of 8.0 mm/s. If you are looking to get high-quality bending capabilities, consider the ACCURL M37-63Tx2000 press brake we have for sale. Contact us for further details.
Overview
- brand: ACCURL
- year: 2021
- MODEL: M37-63Tx2000
- application type: Bending
- Location: Spain
- machine type: Press Brake
Technical Information - ACCURL M37-63Tx2000
Dimensions
- Machine Weight: 3500 kg
Movement
- Number of Axes: 3
Technical Specification
- Bending Length: 1300 mm
- Max. Stroke: 100 mm
- Pressing Force: 2000 Kn
Additional Information
Rapid approach speed: 100 mm/s
Working speed: 8.0 mm/s
Return speed: 80 mm/s
Power of main motor: 5.5 kW
Total connected load: 6.5 kW
Operating voltage: 400 V AC
Frequency: 50 Hz
Control voltage: 24 V DC
Nominal current fuse: 12.4 A
Oil tank capacity: 120 L
Max. operating pressure: 240 bar
Number of axes: 3 (Y1, Y2, X)
X-axis backgauge travel: 500 mm
X-axis positioning accuracy: ±0.02 mm
R-axis travel: 150 mm
Throat depth: 320 mm
Distance between uprights: 1600 mm
Table width: 60 mm
CNC control system: DELEM DA-53T
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
