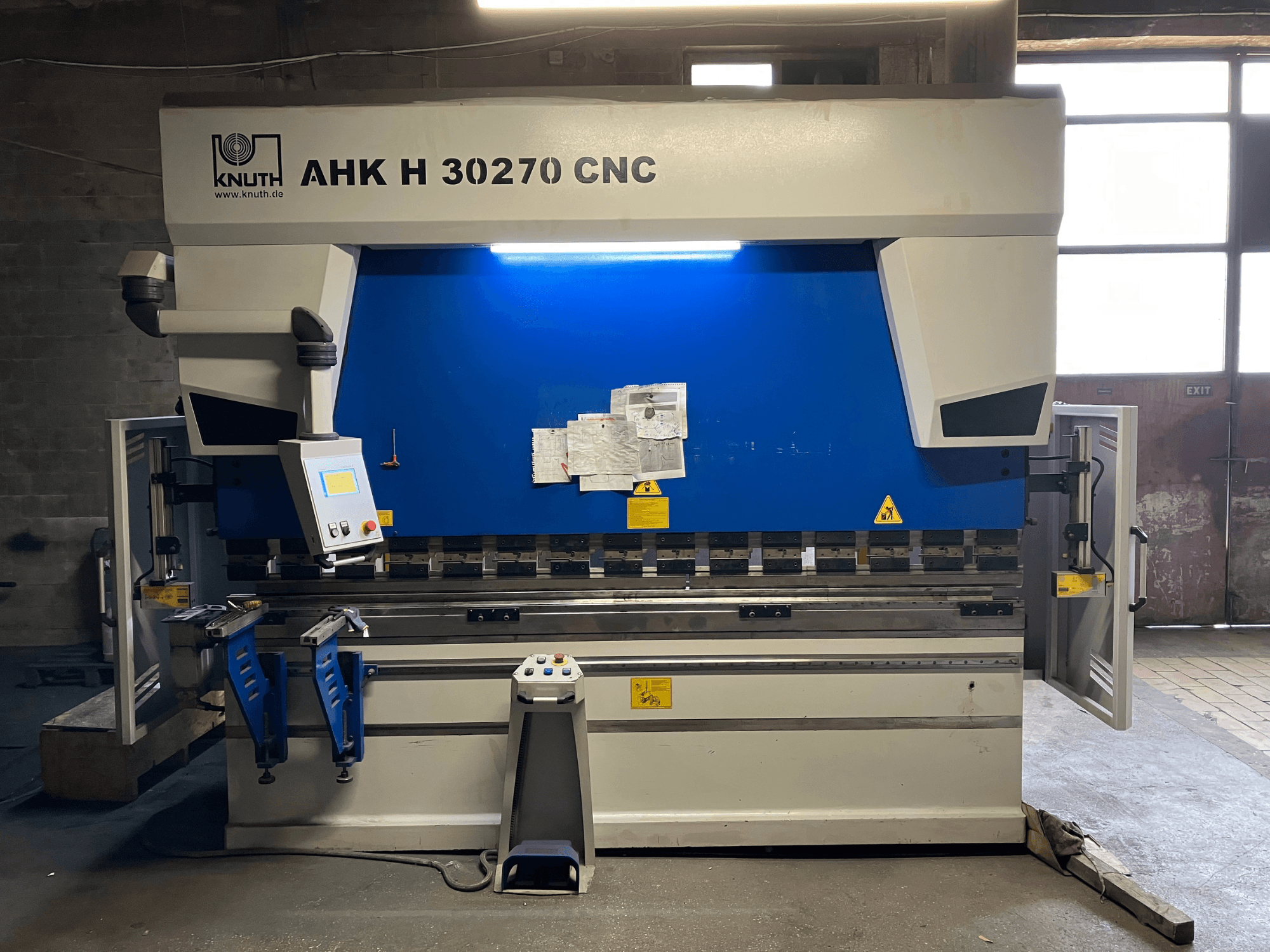

Press brake manufactured in 2021. This KNUTH AHK H 30270 features a pressing force of 270 t and a bending length of 3,100 mm. It includes a Cyberlec Touch 8 Controller and a motorized CNC anti-winding system for enhanced precision. The machine is equipped with front support arms sliding on linear guides and a pedal drive for ease of operation. If you are looking to get high-quality bending capabilities, consider the KNUTH AHK H 30270 press brake we have for sale. Contact us for further details.
Overview
- brand: KNUTH
- year: 2021
- MODEL: AHK H 30270
- application type: Bending
- Location: Romania
- machine type: Press Brake
Technical Information - KNUTH AHK H 30270
Dimensions
- Machine Height: 3000 mm
- Machine Length: 4000 mm
- Machine Weight: 13000 kg
- Machine Width: 2000 mm
Technical Specification
- Bending Length: 3100 mm
- Pressing Force: 2700 Kn
Additional Information
Loading assistance: Yes
Running hours: 372,4 hours / 36.888 bends
3 controlled axes: Y1, Y2, X
Controller: Cyberlec Touch 8
Motorized CNC anti-winding (crowning) system
European clamping tool system
Front support arms sliding on linear guides along the entire length; equipped with T-channels and tilt stops
Rear pusher (backgauge) actuated by servomotor with movement via ball screws and linear guides (X)
Protective guards with electrical contactors
Pedal drive
Workspace lighting lamp
CE certification with Akas Laser Manual safety LC II M FMSC
Technical and operating manual
Distance between columns: 2.600 mm
Knife range: 265 mm
Distance between table and upper support: 485 mm
Depth in the console (C): 410 mm
Table height: 950 mm
Y-axis speeds: fast 110 mm/s; bending 9 mm/s; return 100 mm/s
X-axis fast speed: 250 mm/s; X-axis range: 750 mm/s
R-axis fast speed: 100 mm/s; R-axis range: 200 mm/s
Engine power: 22 kW
Oil tank: 350 L
Additional equipment
Tooling: Punch height 67 mm; 4V prism 6 x 60 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
