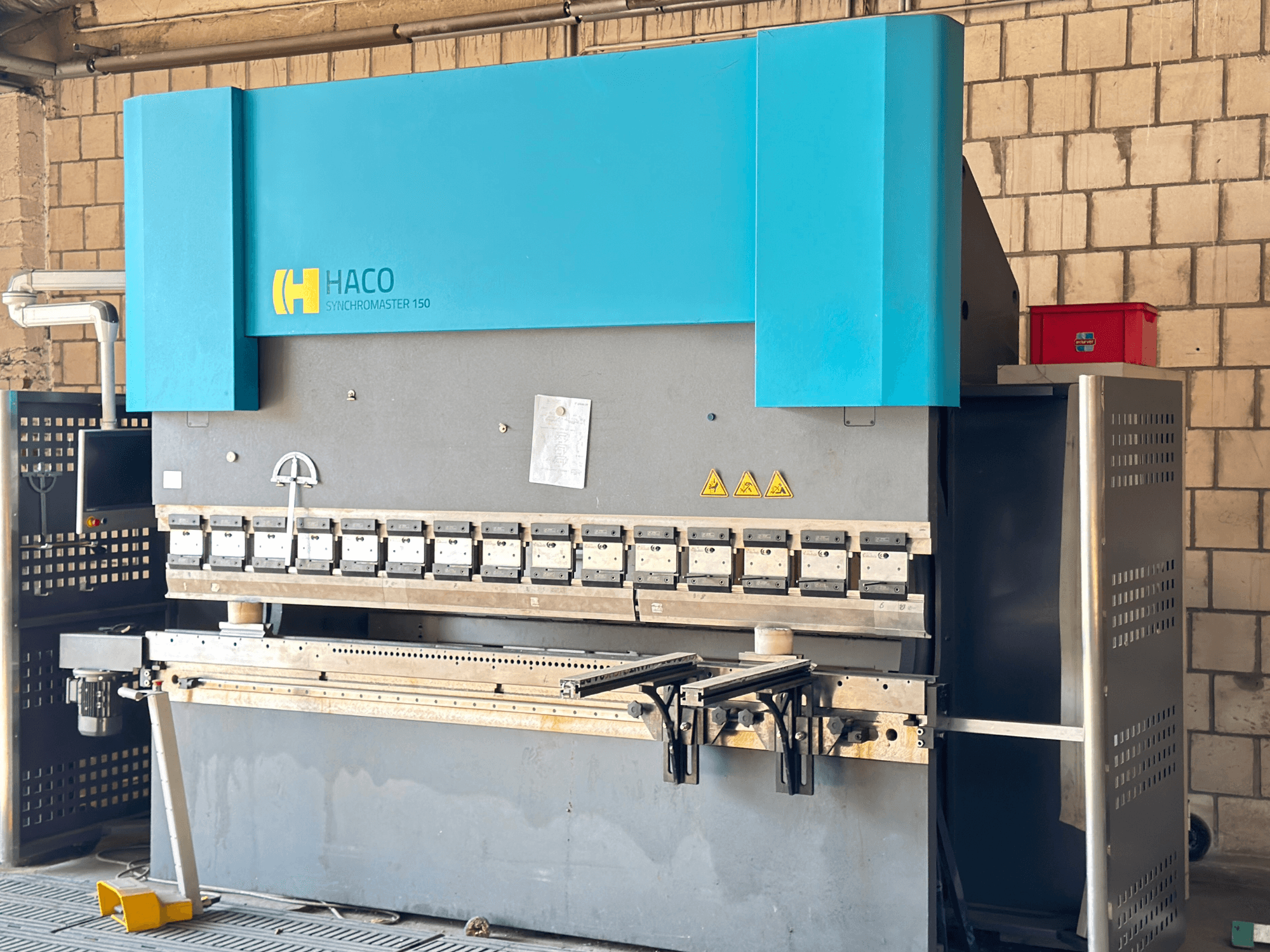

This 6-axis HACO SRM30150 was manufactured in 2019. It features an 800 mm travel for the backgauge X-axis and includes manual quick clamping for upper tools. The machine is equipped with two support arms on linear guides and offers options for speed control and premium crowning. If you are looking to get high-quality bending capabilities, consider the HACO SRM30150 press brake we have for sale. Contact us for further details.
Overview
- brand: HACO
- year: 2019
- MODEL: SRM30150
- application type: Bending
- Location: Germany
- machine type: Press Brake
Technical Information - HACO SRM30150
Movement
- X-axis Travel: 800 mm
Technical Specification
- Bending Length: 3000 mm
- Pressing Force: 1500 Kn
Additional Information
- Control System: EasyBend-2D Graphical Control (103TFT)
- Power Circuit: Star-delta connection
- Backgauge: X-axis
- Tool Clamping (Intermediate): Intermediate clamping for system tools
- Upper Tool Clamping: Manual quick clamping for upper tools
- Table Type: Table for system tools
- Crowning: Manual crowning
- Support Arms: 2 support arms, 750 mm on linear guide
- Option - Speed Control: CE-Slow (Max. speed 10 mm/sec)
- Option - Backgauge: X-R 800 mm travel path
- Option - Premium Control: FastBend 2D Multi Touch Control with 18-inch screen
- Option - Premium Crowning: Additional price for CNC Crowning Table with Single-V opening
- Included Tools - Upper Tool 1: PS.134.30.R08 L=835 mm (4x)
- Included Tools - Upper Tool 2: PS.134.30.R08 L=805 mm Sectioned/Segmented (1x)
- Included Tools - Die 1: TMR100.40.30 L=500 mm (6x)
- Included Tools - Die 2: Rolleri M.460.R L=835 mm (4x)
- Included Tools - Die 3: M.460 R L=805 mm Sectioned/Segmented (1x)
- Hydraulic Fluid Status: WITHOUT OIL FILLING
- Machine Color: Light gray and dark gray, no cyan blue
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
