➤ Used TRUMPF TrumaBend V 850 S For Sale | gindumac.com

Show in original language

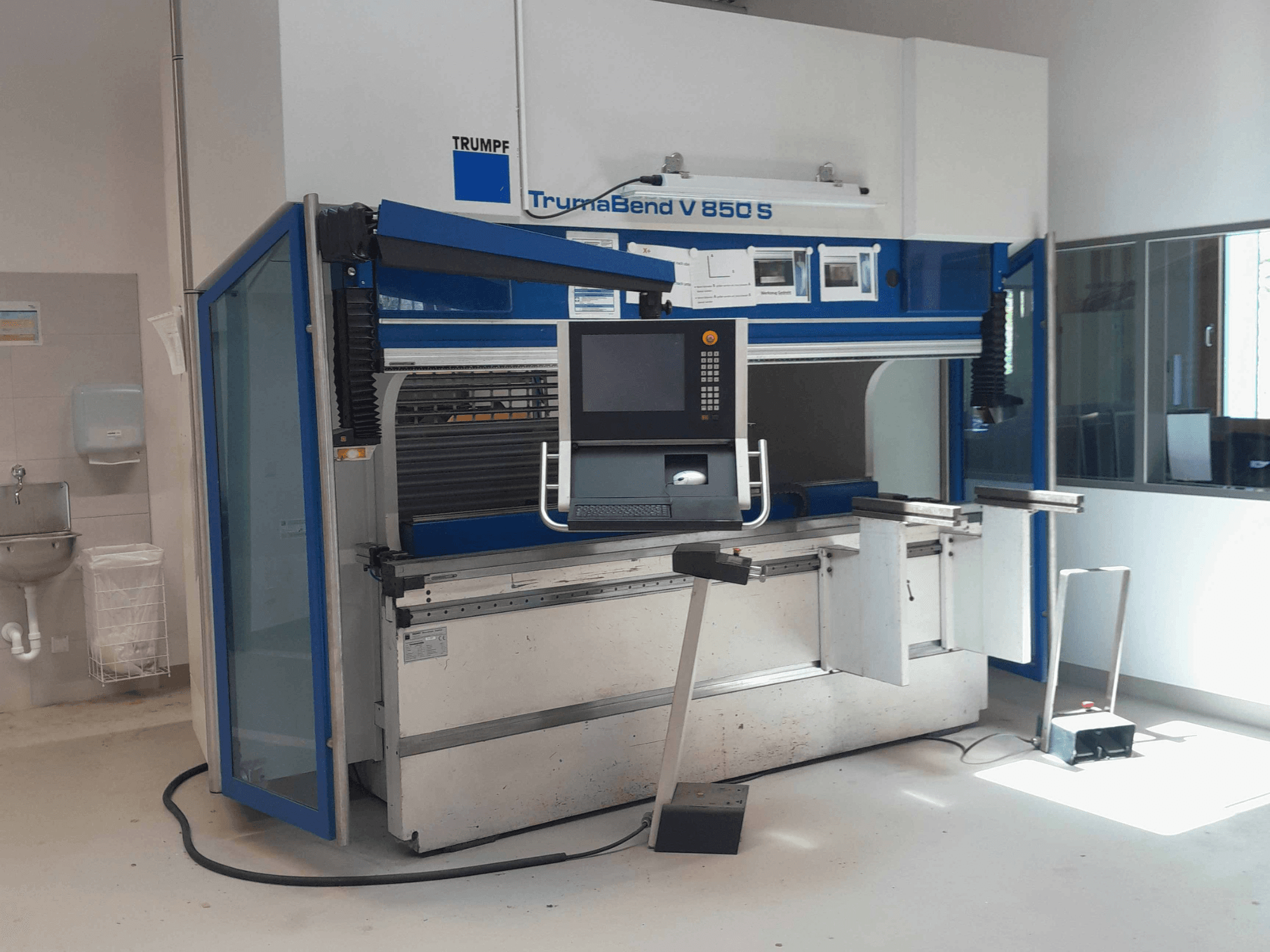

This 6-axis TRUMPF TrumaBend V 850 S was manufactured in 2004. It features a press force of 850 kN and a maximum stroke of 445 mm. The machine is equipped with a 5-axis CNC backgauge system and hydraulic tool clamping for enhanced precision. If you are looking to get high-quality bending capabilities, consider the TRUMPF TrumaBend V 850 S press brake we have for sale. Contact us for further details.

Overview

brand: TRUMPF
year: 2004
MODEL: TrumaBend V 850 S
production hours: 14000
application type: Bending
Location: Germany
machine type: Press Brake

Technical Information - TRUMPF TrumaBend V 850 S

Dimensions

Machine Weight: 8600 kg

Technical Specification

Bending Length: 1250 mm
Max. Stroke: 445 mm
Pressing Force: 850 Kn

Additional Information

- Open Height/Stroke Extension: +230 mm

- Operating Pressure: Max. 300 bar

- Backgauge: 5-axis CNC backgauge system

- Upper Tool Clamping: Hydraulic

- Lower Tool Clamping: Hydraulic

- Angle Measurement: ACB (Automatically Controlled Bending) preparation

- Safety Equipment: BendGuard safety device, CE mark

- Support Arms: 2 pcs. support consoles / arms

- Hydraulic Drive: 4-cylinder upper drive concept Y1/Y2, electro-hydraulic plunger drive with proportional valve technology

- Deflection Compensation: Glass scale ram position measuring system with spring-back compensation

- Lower Tool Displacement: Program-controlled shift (I-axis) for 2 positions

- Additional Features: Oil cooler, network card, spherical suspension and tilting of the press beam, flat front cover

- Electrical Specifications: 3x 400 V, 24.0 A, 50 Hz, 17.0 kVA connection power, 24 V= control voltage

- Pneumatic Connection: 6 bar

- Additional Accessories / Tooling: Tool cabinet (BR001) with various top and bottom press brake tooling segments (OW210/S H=240mm segmented, OW210/S H=240mm L=500mm, EV/S W6/84° R1.6, EV W10/84° R1.6, EV W16/84° R1.6)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
