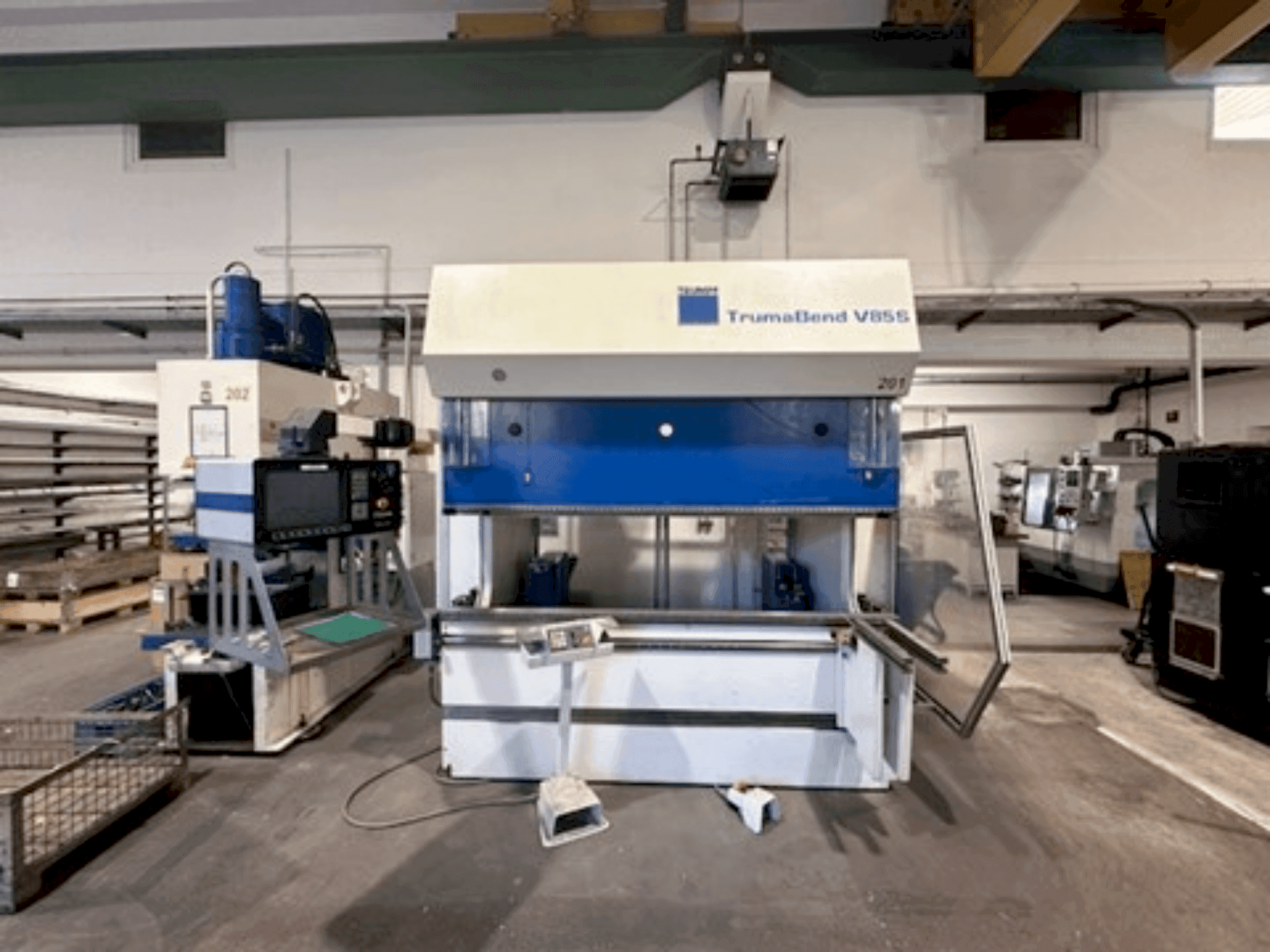

Front view of TRUMPF TrumaBend V85S  machine

TRUMPF - TrumaBend V85SAT-BEN-TRU-1998-00001

Rs. 3,119,850
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 6-axis TRUMPF TrumaBend V85S press brake was manufactured in 1998. It features a bending length of 2,550 mm, an 850 kN bending force, and a 6-axis back gauge. The Delem 65 CNC control enhances precision, while the electro-hydraulic twin cylinder drive ensures robust performance. If you are looking to get high-quality bending capabilities, consider the TRUMPF TrumaBend V85S machine we have for sale. Contact us for more information about this machine.

Overview

  • brand: TRUMPF
  • year: 1998
  • MODEL: TrumaBend V85S
  • application type: Bending
  • Location: Austria
  • machine type: Press Brake
  • availability: Immediately

Technical Information - TRUMPF TrumaBend V85S

General Data

  • Machine weight: 8600 kg

Control Unit

  • Model: Delem 65 CNC control

Main drive

  • Bending length: 2550 mm

    Additional equipment

    • - Extended Installation Height and Stroke: Additional 150 mm each
    • - 2nd Foot Switch

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Drive type: electro-hydraulic twin cylinder with independent y1/y2 movement
        • - Power requirements: 11 kw / 415 v / 50 hz
        • - Design: down-stroking with dual cylinder electro-hydraulic ram drive via proportional valves
        • - Inclination of beam (y1/y2): +10 mm
        • - Bending force: 850 kn // gap between columns: 2260 mm // throat depth: 410 mm // stroke length: 215 mm // open height: 385 mm
        • - Bed width: 120 mm
        • - Ram measurement: incremental with deflection compensation
        • - Tool holders: self-centering top tool holder, hardened bottom tool holder
        • - Hydraulic tool clamping: hydraulic clamping for both top and bottom tools
        • - Safety features: safety screens, light barriers, single/double break modes // front support brackets: two quick-adjustable brackets

      Extra information

      • - Back Gauge: CNC-controlled ‘X’ and ‘R’ axis back gauge with safe 2-finger adjustment X-axis Back Gauge Travel: 600 mm Maximum X Distance: 860 mm R-axis Vertical Travel: 250 mm Back Gauge Travel Speed: 500 mm/sec R-axis Speed: 300 mm/sec Z1/Z2 Axis: CNC-controlled, asymmetric finger adjustment Working Speeds: Approach Speed: 200 mm/sec Operation Speed: 1–10 mm/sec Return Speed: 135 mm/sec

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
