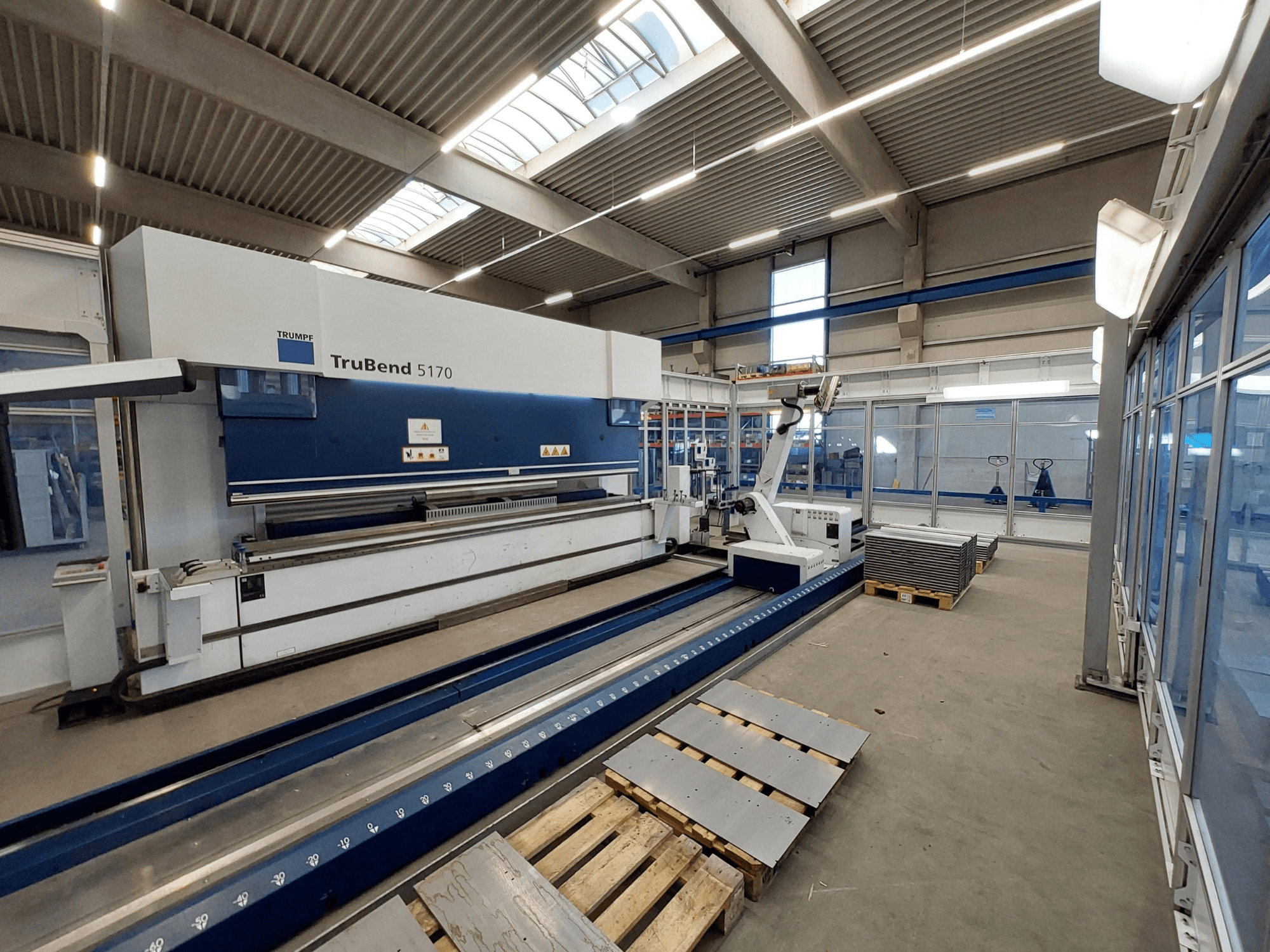

TRUMPF - TRUBEND CELL 5000 with TRUMPF TruBend 5170 and Bend Master 60DE-BEN-TRU-2017-00001

- Press Brake Model: TruBend 5170 (Extended Version)

- Press Brake Max Press Force: 1700 kN

- Press Brake Max Working Pressure: 340 bar

- Press Brake Length of Stroke: 445 mm

- Press Brake Voltage / Frequency: 400 V / 50 Hz

- Press Brake Connected Load: 29 kVA

- Press Brake Control Voltage: 24 V

- Robot Model: BendMaster 60

- Robot Connected Load: 17 kVA

- Robot Weight: 2600 kg

- Robot Voltage / Frequency: 400 V / 50 Hz

- Control System: TRUMPF TASC 6000 (Graphical workshop programming, network capability)

- Included Equipment: Extended version press brake, BendMaster 60, automated material handling/grippers, fencing and safety enclosures

TRUMPF BENDMASTER 60

- Working Hours: 56,582 h (As of 14.05.2025)

- Load Capacity: 60 kg (Sheet metal piece plus gripper)

- Sheet Metal Capacity: Up to 40 kg

- Supply Voltage: 400 V (3~ Phase)

- Frequency: 50 Hz

- Connected Load: 14 kVA

- Control Voltage: 24 V

- Max. Fuse Rating: 32 A

- Manipulator Axis System: 6-axis backgauge sensor system

- Floor Track: Ground track rail extended to 10 m

- Control Unit: PC-based TRUMPF control with terminal (Monitor, mouse, keyboard)

- Material Handling Features: Contour recognition sheet sensor, double sheet detection sensor, rotary union for rapid tool-less gripper exchange, gripper coupling on BendMaster

- Included Vakuum/Gripping Gear: 3 modular vacuum grippers without separation unit, 1 mechanical tong gripper with rotary axis (including 3 sets of additional jaws)

- Feeding Station: 1 sheet extraction station with linear axis

- Peripheral Accessories: 1 gripper changing console (max. 4), 1 mobile fanning magnet, safety enclosure fence with access door
