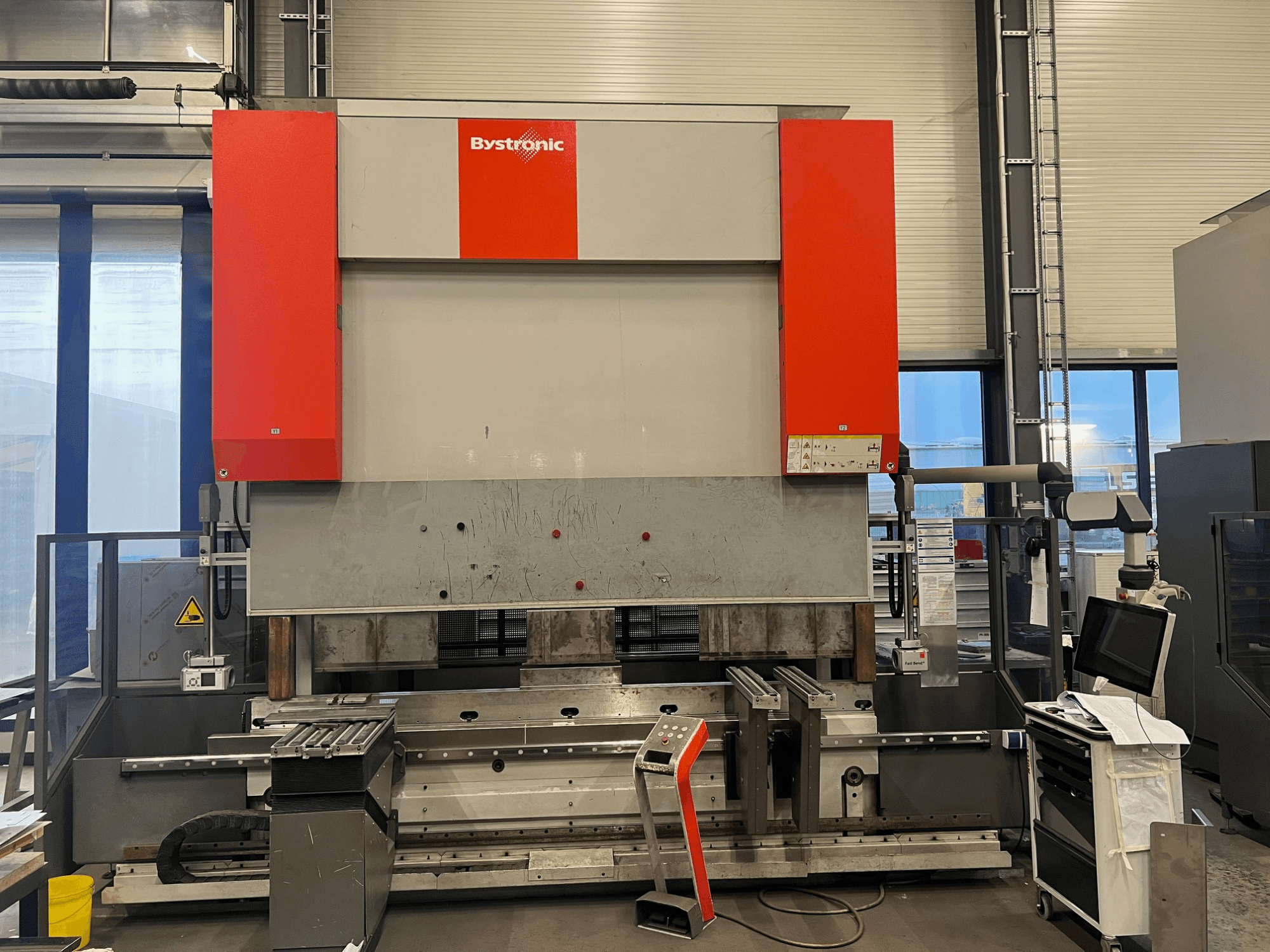

Bystronic - Xpert 250/3100DE-BEN-BYS-2014-00001

Units available: 2x similar units

Standard stroke [S]: 265 mm

Open height [D]: 550 mm

Distance between side frames: 2750 mm

Throat depth [T]: 400 mm

Table width: 60 mm

Max. backgauge range in X (2/4/5 axes): 1050 mm

X-axis speed (2/4/5 axes): 650 mm/s

X-axis accuracy (2/4/5 axes): +/- 0.04 mm

R-axis travel (2/4/5 axes): 250 mm

R-axis speed (2/4/5 axes): 200 mm/s

R-axis accuracy (2/4/5 axes): +/- 0.1 mm

Z-axis speed (4/5 axes): 1500 mm/s

Z-axis speed (6 axes): 1200 mm/s

Z-axis accuracy (4/5 axes): +/- 0.1 mm

Approx. max. Y-rapid traverse: 200 mm/s

Approx. max. Y-rapid traverse in High Speed*: 220 mm/s

Max. Y-working speed: 10 mm/s

Approx. max. Y-working speed in High Speed*: 20 mm/s

Approx. max. Y-working speed in High Speed for robot operation*: 20 mm/s

Y-axis accuracy: 0.004 mm

Oil capacity: 445 l

Main motor power: 22 kW

Weight: 15 t

Machine width [W]: 2050 mm
