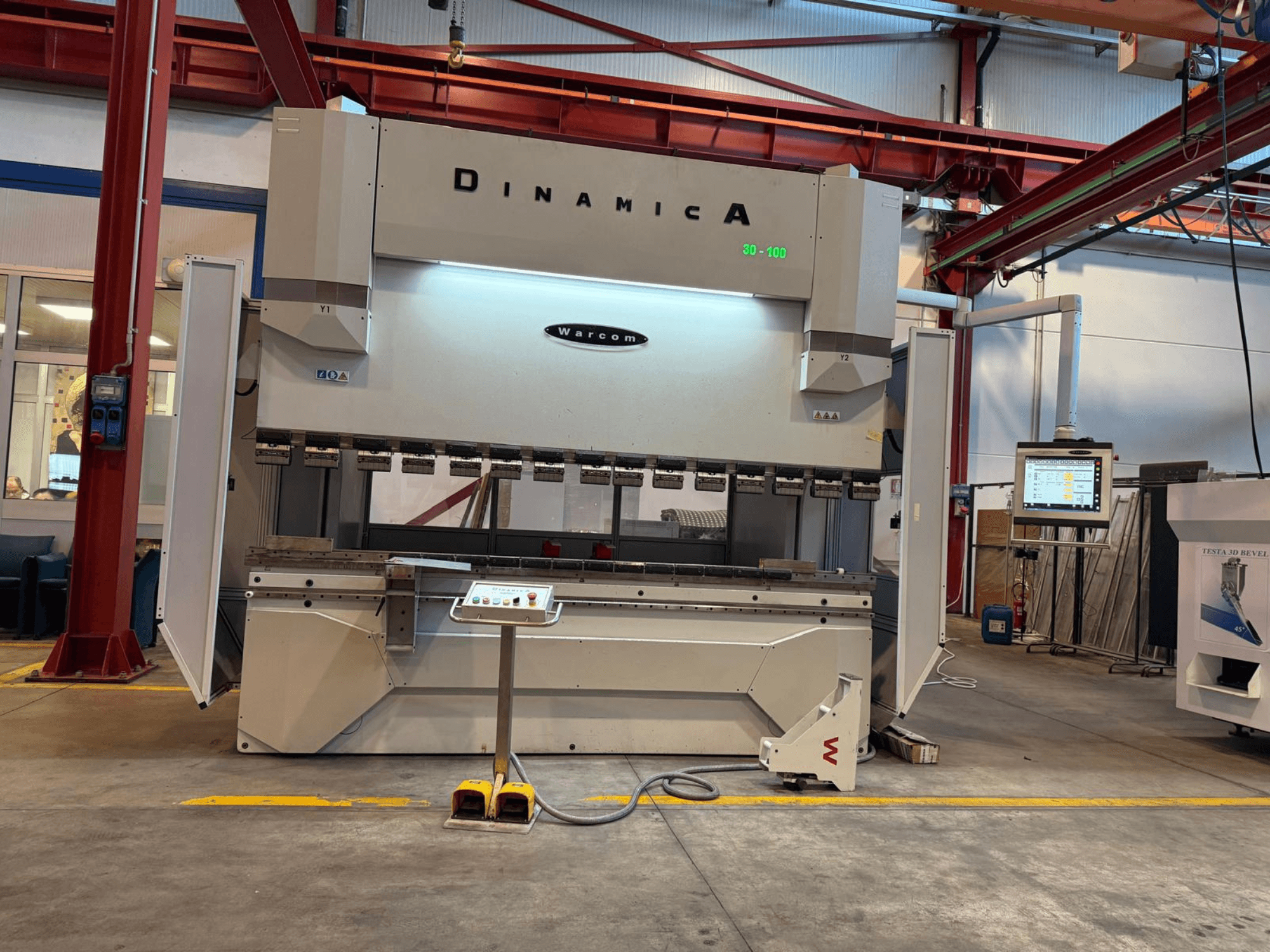

This Warcom DINAMICA 100.30 press brake was manufactured in 2016. It features a maximum force of 100 Ton, a working length of 3200 mm, and a motor power of 11 kW. Weighing 10,500 kg, it operates with a maximum working pressure of 250 bar. If you are looking to get high-quality bending capabilities, consider the Warcom DINAMICA 100.30 machine we have for sale. Contact us for more information about this machine.
Overview
- brand: Warcom
- year: 2016
- MODEL: DINAMICA 100.30
- application type: Bending
- Location: Italy
- machine type: Press Brake
Technical Information - Warcom DINAMICA 100.30
Dimensions
- Machine Weight: 10500 kg
Movement
- Y-axis Travel: 400 mm
Additional Information
Maximum force: 100 Ton
Working length: 3200 mm
Distance between uprights: 2550 mm
Throat depth: 500 mm
Distance between table and ram: 600 mm
Table width: 60 mm
Fast descent speed: 0–200 mm/s
Working speed: 0–10 mm/s
Return speed: 0–180 mm/s
Y-axis positioning tolerance: ±0.01 mm
Motor power: 11 kW
Oil tank capacity: 120 L
Maximum working pressure: 250 bar
Electrical supply voltage: 400 V
Frequency: 50 Hz
Phases: 3 + N
Acoustic pressure at operator position: 74 ± 2.5 dB(A)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
