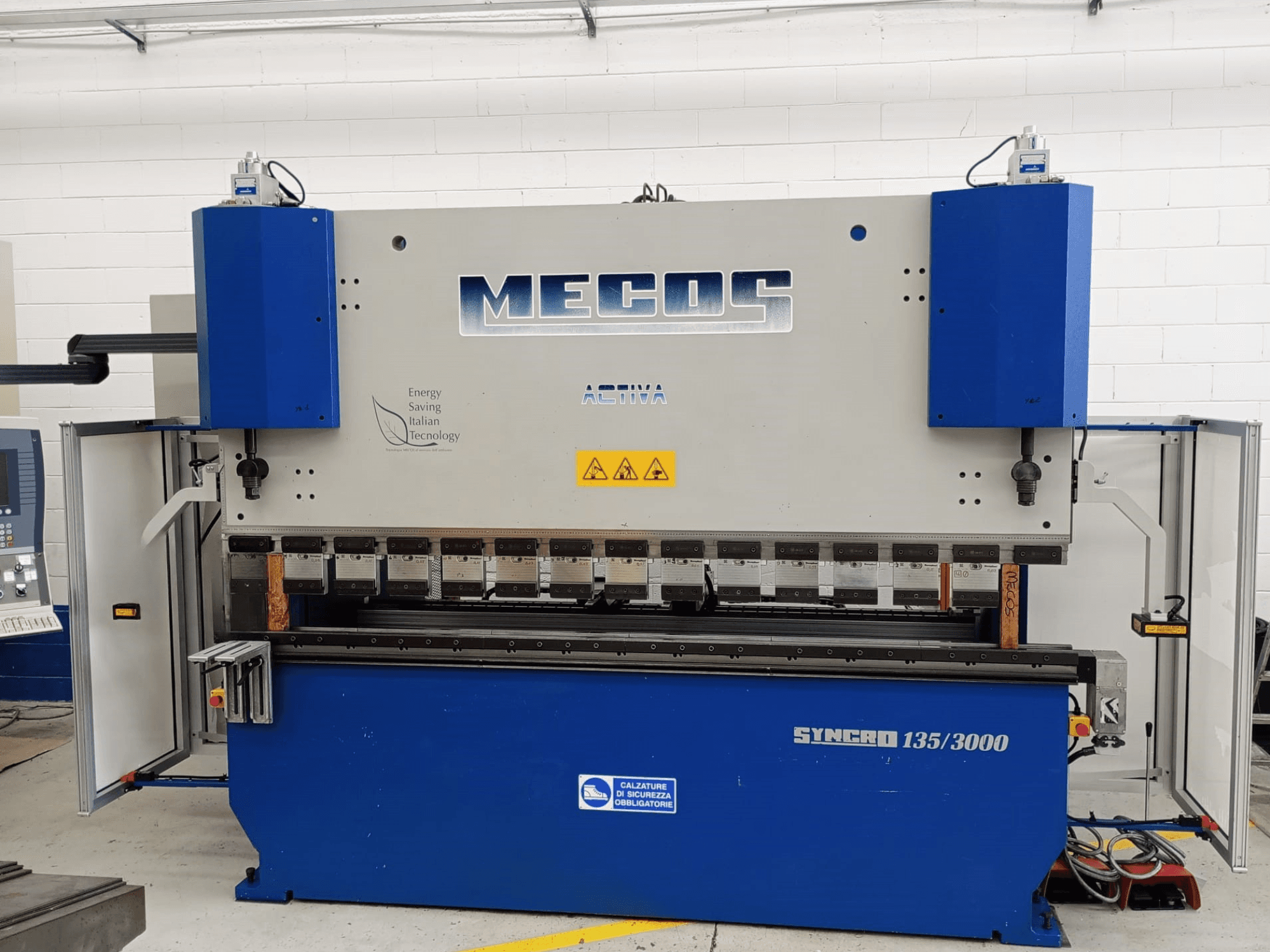

This 7-axis MECOS SYNCRO 135/3000 was manufactured in 2008. It features a pressing force of 135 tons and a bending length of 3000 mm, making it suitable for various bending applications. The machine is equipped with CNC control for enhanced precision and efficiency. If you are looking to get high-quality bending capabilities, consider the MECOS SYNCRO 135/3000 press brake we have for sale. Contact us for further details.
Overview
- brand: MECOS
- year: 2008
- MODEL: SYNCRO 135/3000
- application type: Bending
- Location: Italy
- machine type: Press Brake
Technical Information - MECOS SYNCRO 135/3000
Dimensions
- Machine Height: 2850 mm
- Machine Length: 4800 mm
- Machine Weight: 13000 kg
- Machine Width: 2500 mm
Movement
- Number of Axes: 7
Technical Specification
- Bending Length: 3000 mm
- Pressing Force: 1350 Kn
Additional Information
CNC control: ESA
Max open height (luce): 450 mm
Max stroke (corsa): 200 mm
Approach speed: 200 mm/s
Working speed: 0–10 mm/s
Return speed: 130 mm/s
Stopping distance: 11 mm
Motor power: 15 kW
Tank capacity: 1200 L
Electrical supply: 400 V, 50 Hz, 3-phase
Additional equipment
Laser safety guards (likely DSP or similar)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
