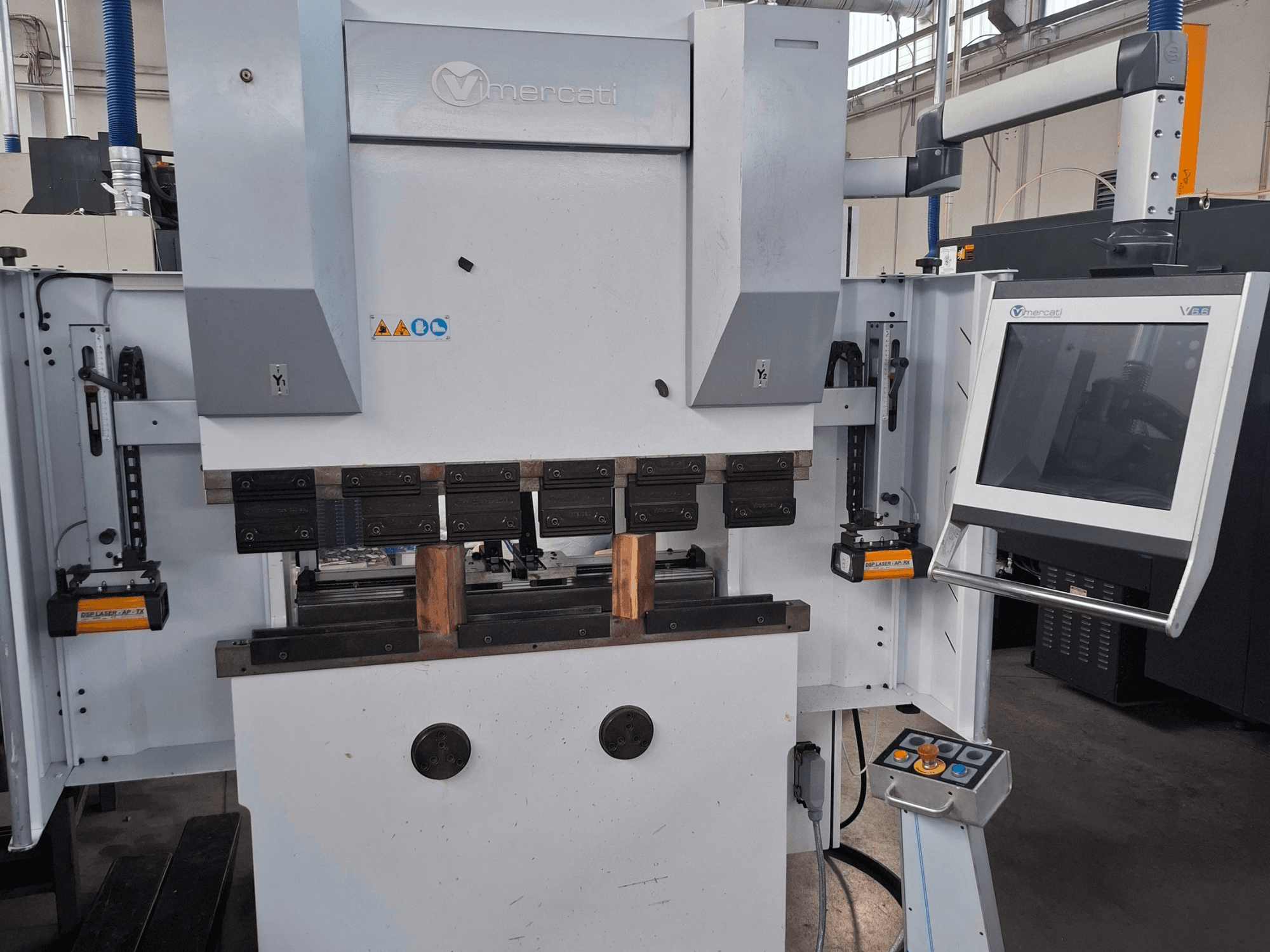

Press brake manufactured in 2019. This Vimercati PHSY 30X1250 features a pressing force of 30 tons and a bending length of 1,250 mm. It includes an X-axis travel of 400 mm and an R-axis travel of 130 mm. If you are looking to get high-quality bending capabilities, consider the Vimercati PHSY 30X1250 machine we have for sale. Contact us for further details.
Overview
- brand: Vimercati
- year: 2019
- MODEL: PHSY 30X1250
- application type: Bending
- Location: Italy
- machine type: Press Brake
Technical Information - Vimercati PHSY 30X1250
Dimensions
- Machine Height: 2400 mm
- Machine Length: 2200 mm
- Machine Weight: 2800 kg
- Machine Width: 1600 mm
Movement
- X-axis Travel: 400 mm
Technical Specification
- Bending Length: 1250 mm
- Pressing Force: 300 Kn
Additional Information
Control: ESA S640 CNC (also referenced: ESA S660)
Distance between uprights: 1,000 mm
Stroke: 180 mm
Daylight opening: 365 mm
Throat depth: 150 mm
R-axis travel: 130 mm
Approach speed: 180 mm/s
Working speed: 0–10 mm/s
Return speed: 150 mm/s
Main motor power: 4 kW
Hydraulic tank capacity: 140 L
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
