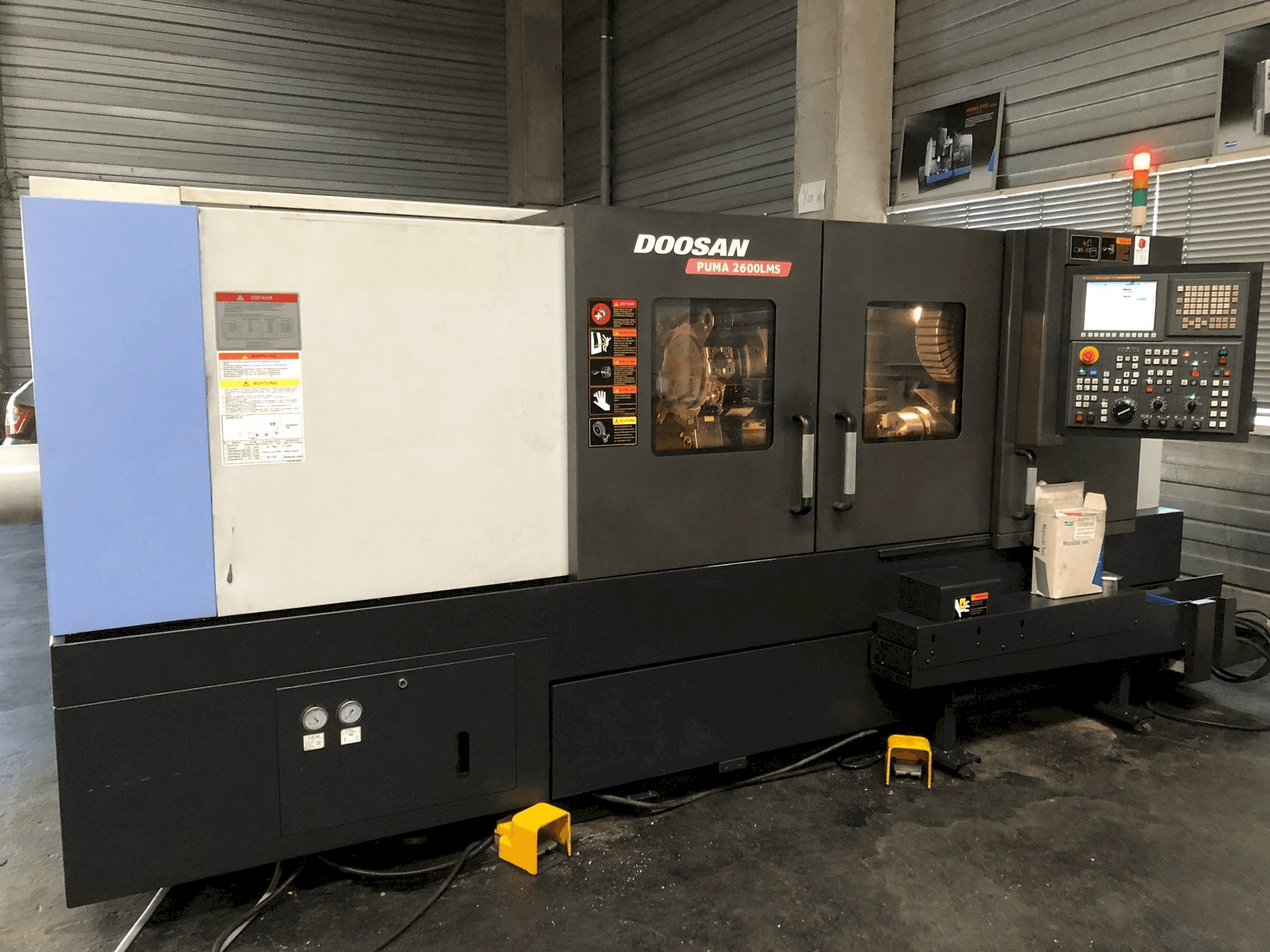

Front view of Doosan Puma 2600 LMS machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Puma 2600 LMS

Photo Gallery

DOOSAN - Puma 2600 LMSAT-TUR-DOO-2011-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Puma 2600 LMS lathe

Show in original language

This Doosan 2600 LMS lathe was built in Korea in the year 2011. It has been powered on for 13026 hours, of which 2851 are cutting time. It is operated through a Doosan-Fanuc i Series control unit. This 3 axis machine counts with 2 spindles, the main one can work with a spindle speed up to 4000 rpm, and the sub-spindle can work with a spindle speed up to 4500 rpm.

Overview

brand: DOOSAN
year: 2011
MODEL: Puma 2600 LMS
production hours: 13026
application type: Turning
Location: Austria
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DOOSAN Puma 2600 LMS

General Data

Measurements width: 3600 mm
Measurements depth: 1863 mm
Measurements height: 1900 mm
Machine weight: 7500 kg

Control Unit

Model: i Series
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 4000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 260 mm
X-AXIS Feed Force: 30 m/min
Z-AXIS Movement: 1350 mm
Z-AXIS Feed Force: 30 m/min
B-AXIS Movement: 1350 mm
B-AXIS Feed Force: 30 m/min

Turret

Number of tool slots: 12

Media

Power consumption: 43,5 kva

Additional Information

Machine Benefits

Technical Machine Benefits

Swing over bed: 780 mm
Swing over saddle: 630 mm
Recom. Turning diameter: 255 mm
Max turning diameter: 376 mm
Max work length: 1280 mm
Bar working diameter: 76 mm
Spindle nose: asa a2#8
Spindle bearing diameter: 140 mm
Spindle through hole diameter: 86 mm
Sub spindle: 4500 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
