Miyano BNA-42DHY

Photo Gallery

Miyano - BNA-42DHYCZ-TUR-MIY-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Miyano BNA-42DHY For Sale | gindumac.com

Show in original language

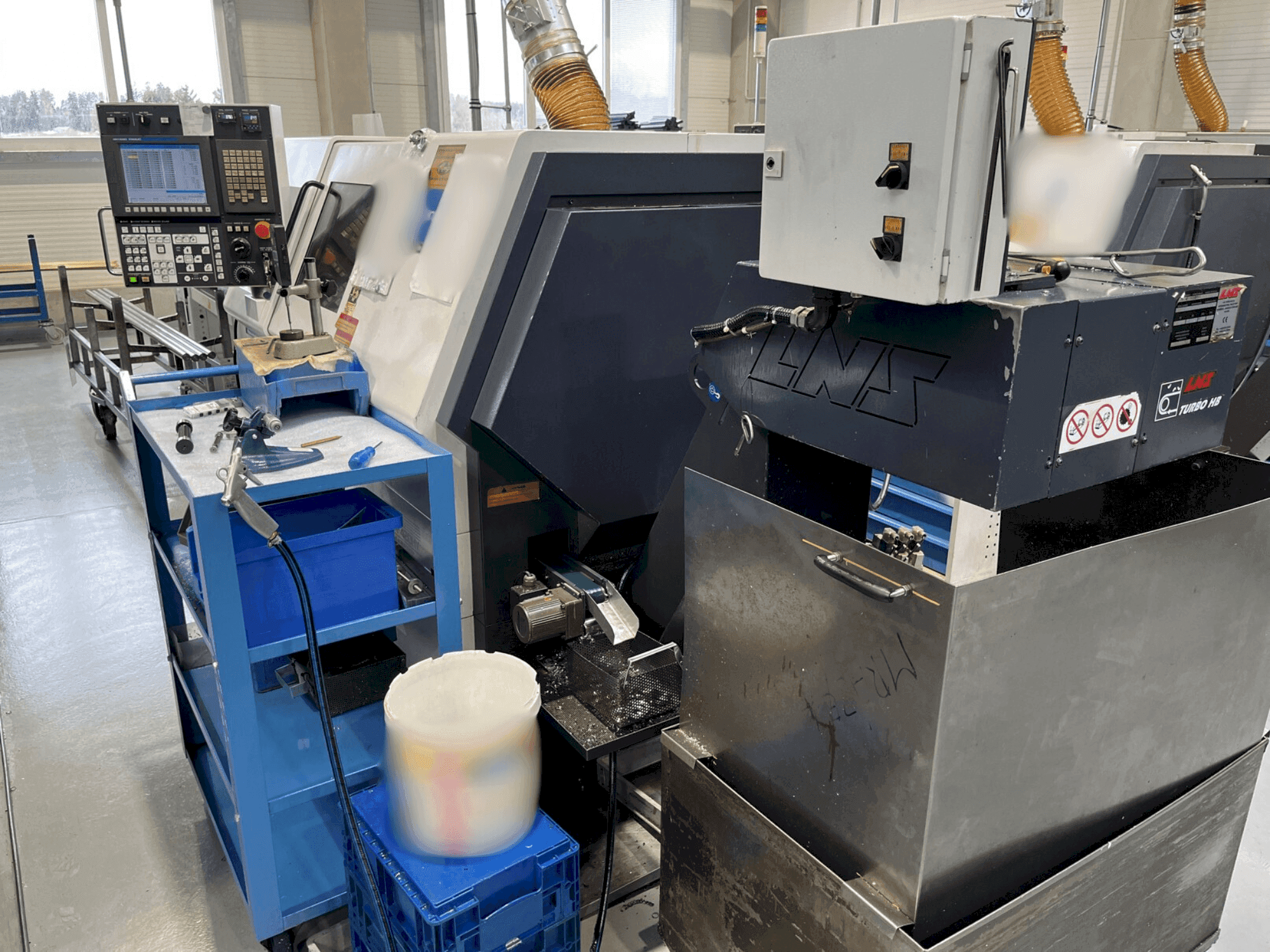

This 7-axis Miyano BNA-42DHY turn-mill centre was manufactured in 2011. It features a main spindle with a maximum bar diameter of 42 mm and speeds up to 6000 rpm, complemented by a counter-spindle that handles up to 34 mm and 5000 rpm. Equipped with two turrets, upper with 8 positions and lower with 6, it offers versatile machining options. Includes a chips conveyor and an IEMCA BOSS 545 E bar loader. Contact us for more information about this machine.

Overview

brand: Miyano
year: 2011
MODEL: BNA-42DHY
application type: Turning
Location: Czech Republic
machine type: Turn-Mill Centre

Technical Information - Miyano BNA-42DHY

Dimensions

Machine Depth: 2220 mm
Machine Height: 1700 mm
Machine Weight: 3100 kg

Movement

Number of Axes: 7
X-axis Travel: 140 mm
Y-axis Travel: 70 mm
Z-axis Travel: 235 mm

Technical Specification

Spindle Power: 7.5 kW
Spindle Speed: 6000 RPM

Additional Information

Additional equipment

Bar Loader: IEMCA BOSS 545 E

Machine Benefits

Technical Machine Benefits

Live tools power: 1. 0 kw
X/z stroke: 140/310 mm
Main spindle max. Bar diameter: 42 mm
Main spindle travel: 100 mm
Main spindle c axis indexing precision: 0. 001°
Counter-spindle: max. Bar diameter: 34 mm, spindle speeds: 5000 rpm, spindle power: 5. 5/3. 7 kw, c axis indexing precision: 0. 001°
Total installed power: 30 kva

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
