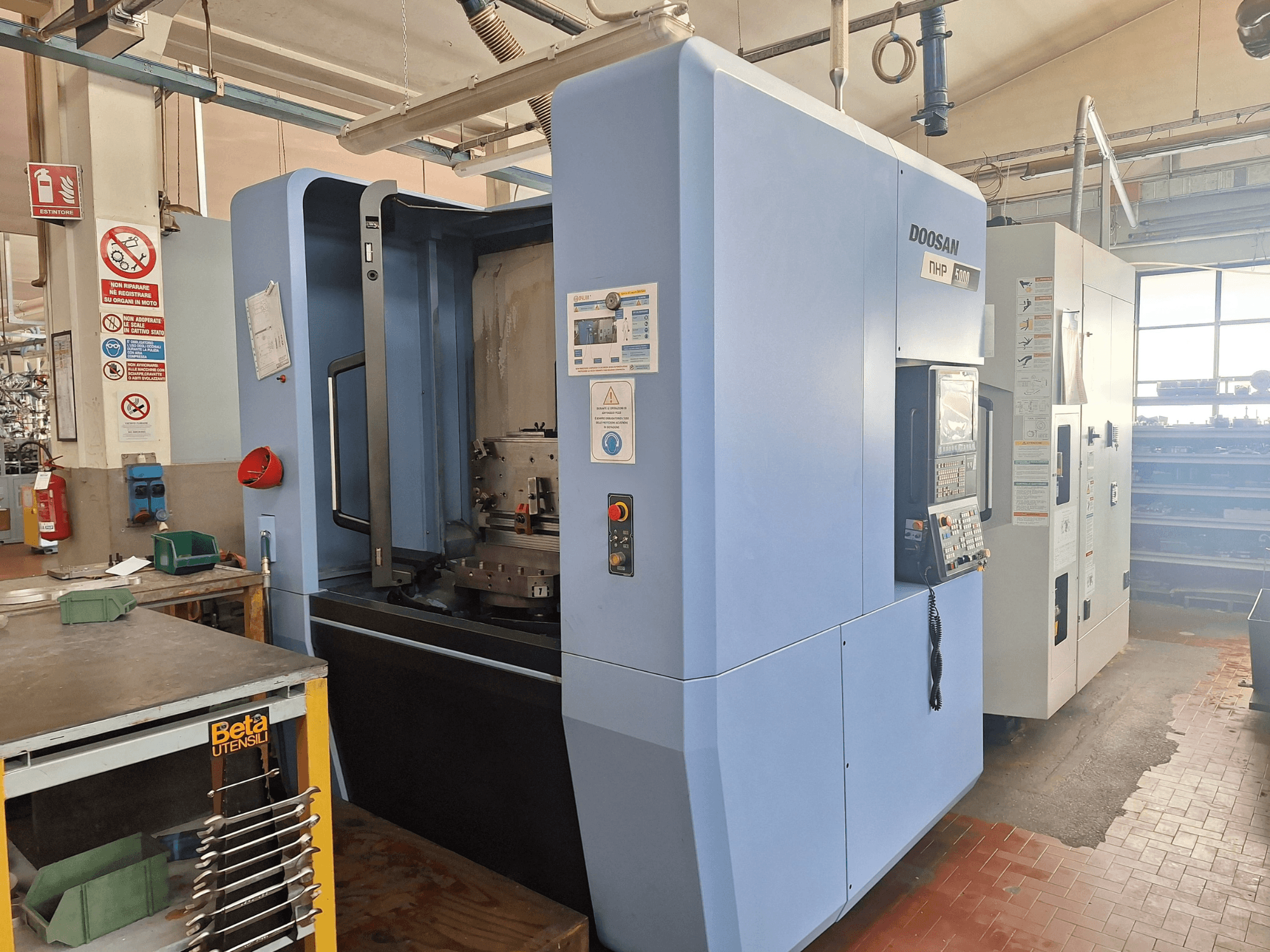

This 4-axis DOOSAN NHP 5000 was manufactured in 2019. It features impressive axis travels of 730 mm in both X and Y directions, and 880 mm in Z. The machine is equipped with a FANUC 31i-B control system and offers rapid traverses of 60 m/min. If you are looking to get high-quality machining capabilities, consider the DOOSAN NHP 5000 horizontal machining centre we have for sale. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2019
- MODEL: NHP 5000
- application type: Milling
- Location: Italy
- machine type: Horizontal Machining Centre
- control unit brand: FANUC
Technical Information - DOOSAN NHP 5000
Control Unit
- Control Brand: FANUC
Movement
- Number of Axes: 4
- X-axis Travel: 730 mm
- Y-axis Travel: 730 mm
- Z-axis Travel: 880 mm
Technical Specification
- Spindle Power: 37 kW
- Spindle Speed: 20000 RPM
- Taper Size: ISO 40
Additional Information
Rapid traverses
X/Y/Z: 60 m/min
Cutting feedrate: 1–30,000 mm/min
Ballscrews: Ø45 x P20
Accuracy
Positioning: ±0.003 mm (full stroke)
Repeatability: ±0.0015 mm
Measurement system
X/Y/Z/B: absolute pulse encoders
Optional linear guides on X, Y, Z
Distances
Spindle nose to table center: 100–980 mm
Spindle center to pallet surface: 80–810 mm
Spindle
Speed:
Standard/high-torque: 15,000 rpm
High‑speed option: 20,000 rpm
Base speed:
Standard: 1,200 rpm
High‑speed option: 1,800 rpm
Motor power:
Standard: 30 / 22 / 18.5 kW
High torque option: 37 / 26 / 22 kW
High‑speed option: 37 / 30 / 26 / 18.5 kW
Max. torque:
Standard: 229.9 / 206.9 / 147.2 / 119.4 Nm
High torque: 303 / 261 / 204 / 147 / 119 Nm
High‑speed option: 221 / 200 / 156 / 98.1 / 79.6 Nm
Tool clamping force: 9.8 kN (15.7 kN with HSK spindle)
Transmission: Integrated drive
Axis motors
X: 5.5 kW (7.37 hp)
Y: 4.5 kW (6.03 hp)
Z: 5.5 kW (7.37 hp)
B indexing motor: 1.4 kW (1.88 hp)
B 0.001° motorized: 2.7 kW (3.62 hp)
B axis / rotary table
Indexing: 1° indexing; 0.001° rotary table
Positioning accuracy: ±3" (±6" for rotary table)
Repeatability: ±1" (±4" for rotary table)
Max rapid rotation: 30 rpm
Clamping force: 93 kN
Clamping torque: 4327 Nm
Pallet
Size: 500 x 500 mm
Type: Threaded pallet; T‑slot pallet
Pattern: 24‑M16 x P2.0; 5‑18H8
Machine travels reference
X/Y: 28.74"
Z: 34.65"
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
