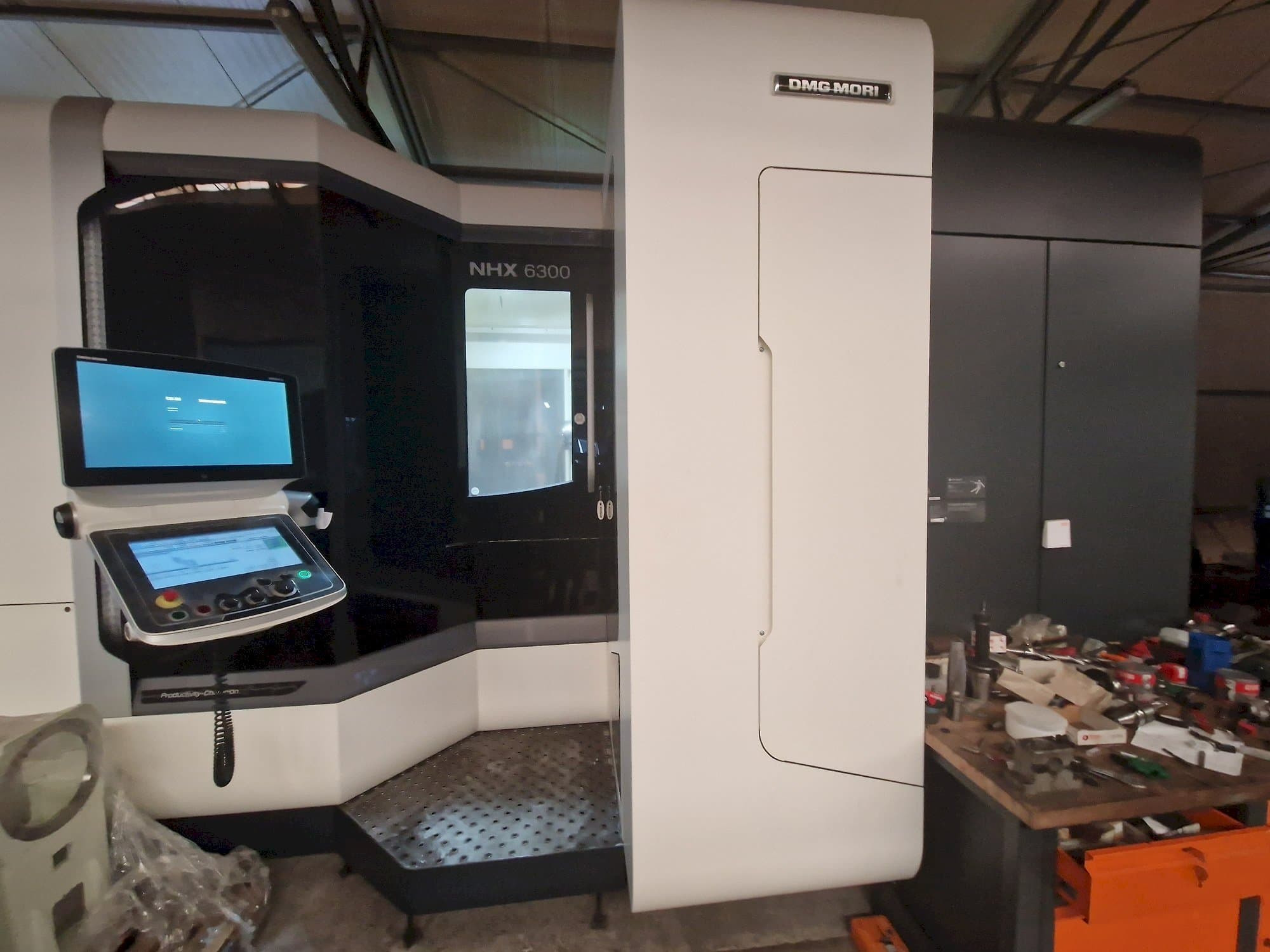

Front view of DMG MORI NHX6300  machine

DMG MORI NHX6300

DMG MORI - NHX6300

2018

Rs. 35,797,350

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DMG MORI NHX6300 horizontal machining center was made in the year 2018 in Japan and has 429 hours. It is equipped with a DMG MORI ERGOline, CELOS with FANUC control unit, and has 4 axis. The machine has a spindle speed of 8000 rpm.

Overview

  • brand: DMG MORI
  • year: 2018
  • MODEL: NHX6300
  • production hours: 429
  • application type: Milling
  • Location: Poland
  • machine type: Machining centers (horizontal)
  • availability: Immediately
  • control unit brand: DMG MORI
  • GINDUMAC ID: PL-MIL-DMG-2018-00002

Technical Information

General Data

  • Measurements width: 3930 mm
  • Measurements depth: 5823 mm
  • Measurements height: 3228 mm
  • Machine weight: 18750 kg

Control Unit

  • Brand: DMG MORI
  • Model: ERGOline

Main drive

  • Spindle speed range: 8000 1/MIN
  • Number of axis: 4

Movement

  • X-AXIS Movement: 1050 mm
  • Y-AXIS Movement: 900 mm
  • Z-AXIS Movement: 1030 mm

Table

  • Outer length: 630 mm
  • Outer width: 630 mm
  • Table load: 1500 kg

Tools

  • Max weight: 30 kg
  • Max tool length: 630 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - 4 cnc axes (x,y,z and b for rotation of the table)
      • - Max workpiece dimensions: - dim. 1050 mm - height: 1300 mm - weight: 1500 kg
      • - Two pallets and rotary pallet exchanger, pallet work surface each: 630 x 630 mm
      • - Pallet changing time: 20 s
      • - Tool storage capacity: 60 tools (ring type)
      • - Tool change time from chip-to-chip: 4. 8 s
    • Qualitative Machine Benefits:
      • - Machine in very good condition, full documentation available, ready for tests

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
