DECKEL MAHO - DMC 60 T RS3DE-MIL-DEC-2006-00004
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- DECKEL MAHO DMC 60 T RS3 Vertical Machining Center

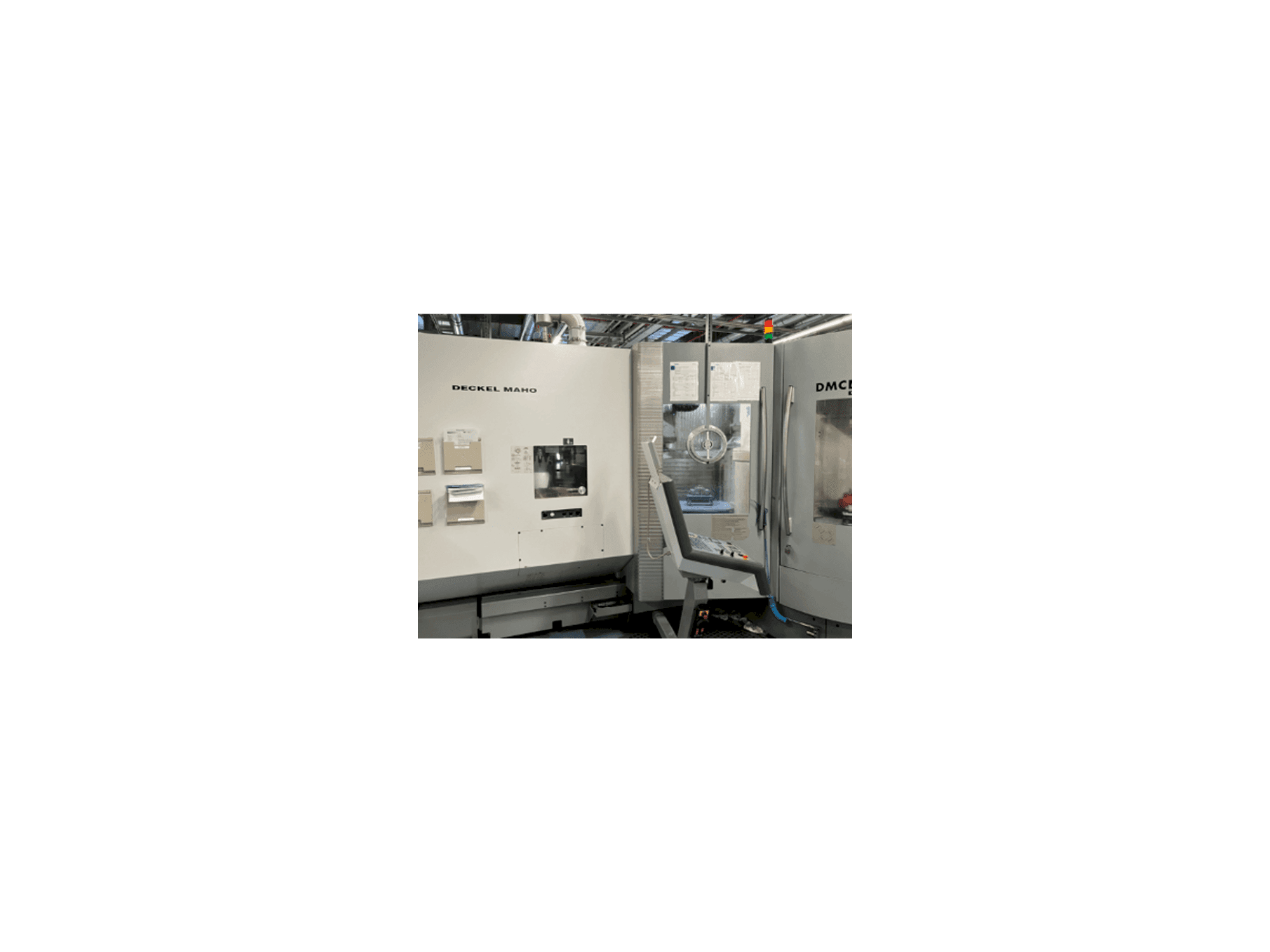

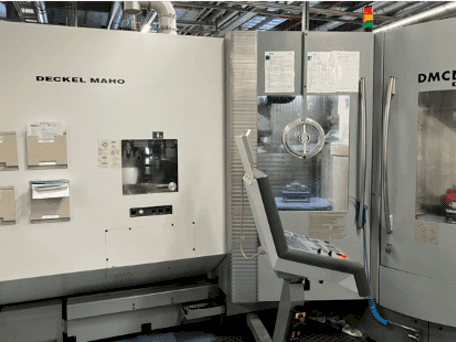

This DECKEL MAHO DMC 60 T RS3 Vertical Machine Center with pallet changer (5 pallets) was built in the year 2006 in Germany and has 63996 hours, of which 21521 are spindle hours. It is operated through a Heidenhain iTNC 530 control unit and has 5 axis. The machine has a spindle speed of 0 - 18000 rpm.
Overview
- brand: DECKEL MAHO
- year: 2006
- MODEL: DMC 60 T RS3
- production hours: 63996
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DECKEL MAHO DMC 60 T RS3
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Depth: 6500 mm
- Machine Height: 2400 mm
- Machine Weight: 9800 kg
Movement
- Number of Axes: 5
- X-axis Travel: 780 mm
- Y-axis Travel: 560 mm
- Z-axis Travel: 560 mm
Technical Specification
- Spindle Speed: 18000 RPM
Additional Information
Additional equipment
- tool magazine with 180 tools HSK63
- tool monitoring external
- IKZ system 40 bar
- Coolant tank with 980 liters volume
Machine Benefits
Qualitative Machine Benefits
- All maintenance has been performed according to manufacturer recommendations
- Manual / technical documentation available
Technical Machine Benefits
- Tool places 180
- Pallet dimensions pallets 500 x 630 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
