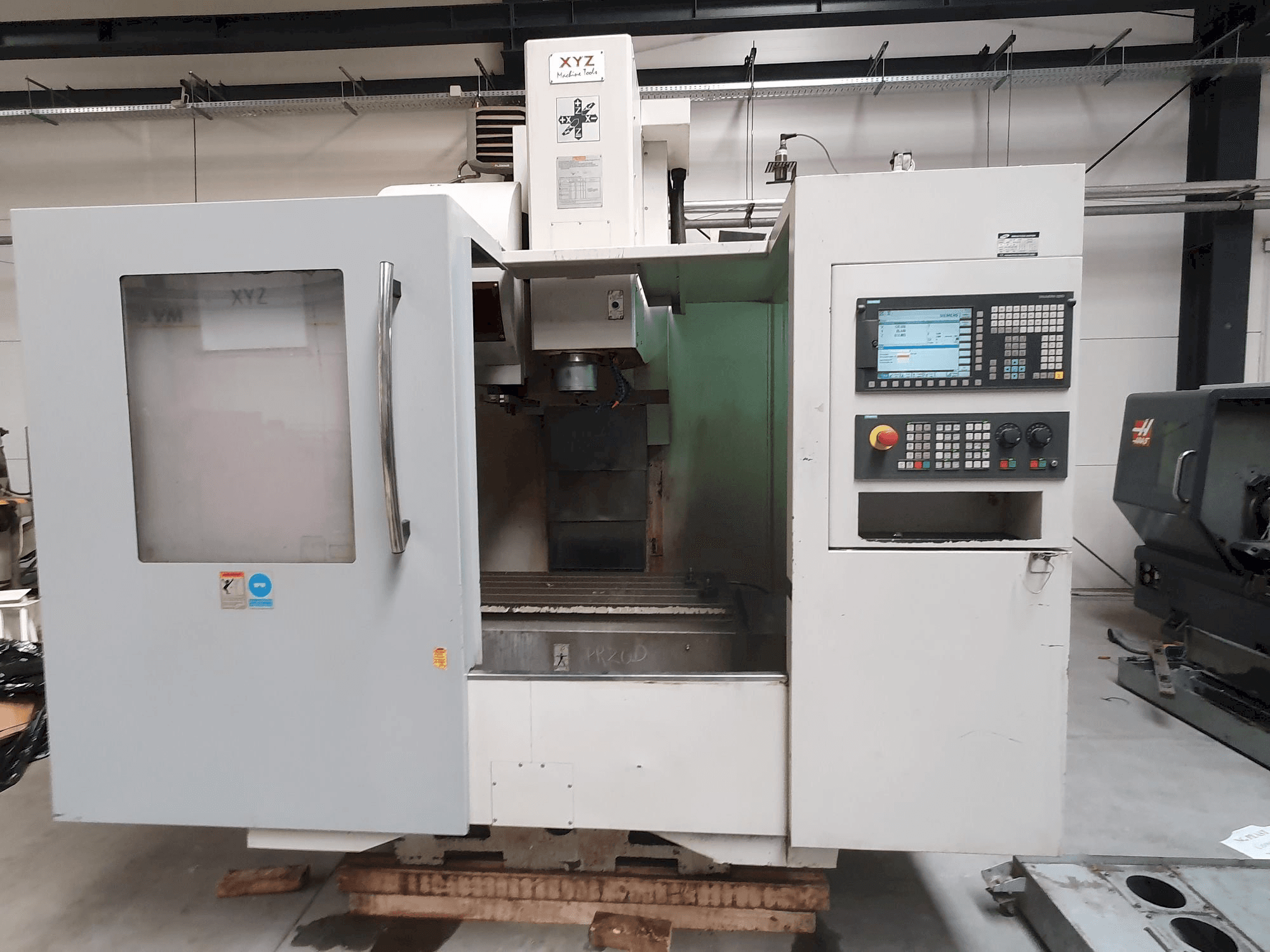

XYZ 1020 VMC Vertical machining center

Show in original language

This XYZ 1020 VMC Vertical machining center was manufactured in United Kingdom in 2011. It has 18000 working hours. It is equipped with a Siemens Sinumerik 828D control unit. This 3 axis machine works with a spindle speed up to 8000 rpm. Machine in working condition, ready for tests. The spindle was replaced with a new one 2 years ago.

Overview

brand: XYZprinting
year: 2011
MODEL: 1020 VMC
production hours: 18000
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - XYZprinting 1020 VMC

General Data

Measurements width: 2650 mm
Measurements depth: 2105 mm
Measurements height: 3020 mm
Machine weight: 5440 kg

Control Unit

Model: Sinumerik 828D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 60 - 8000 1/MIN

Movement

X-AXIS Movement: 1020 MM
Y-AXIS Movement: 520 MM
Z-AXIS Movement: 546 MM

Table

Outer length: 1120 mm
Outer width: 500 mm
Table load: 800 kg

Tools

Type of tool holder: BT 40

Media

Main electronic connection: 400V/50 Hz
Power consumption: 15kVA

Additional Information

Machine Benefits

Qualitative Machine Benefits

Machine in working condition, ready for tests.
24 tools in the atc included
The spindle was replaced with a new one 2 years ago.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
