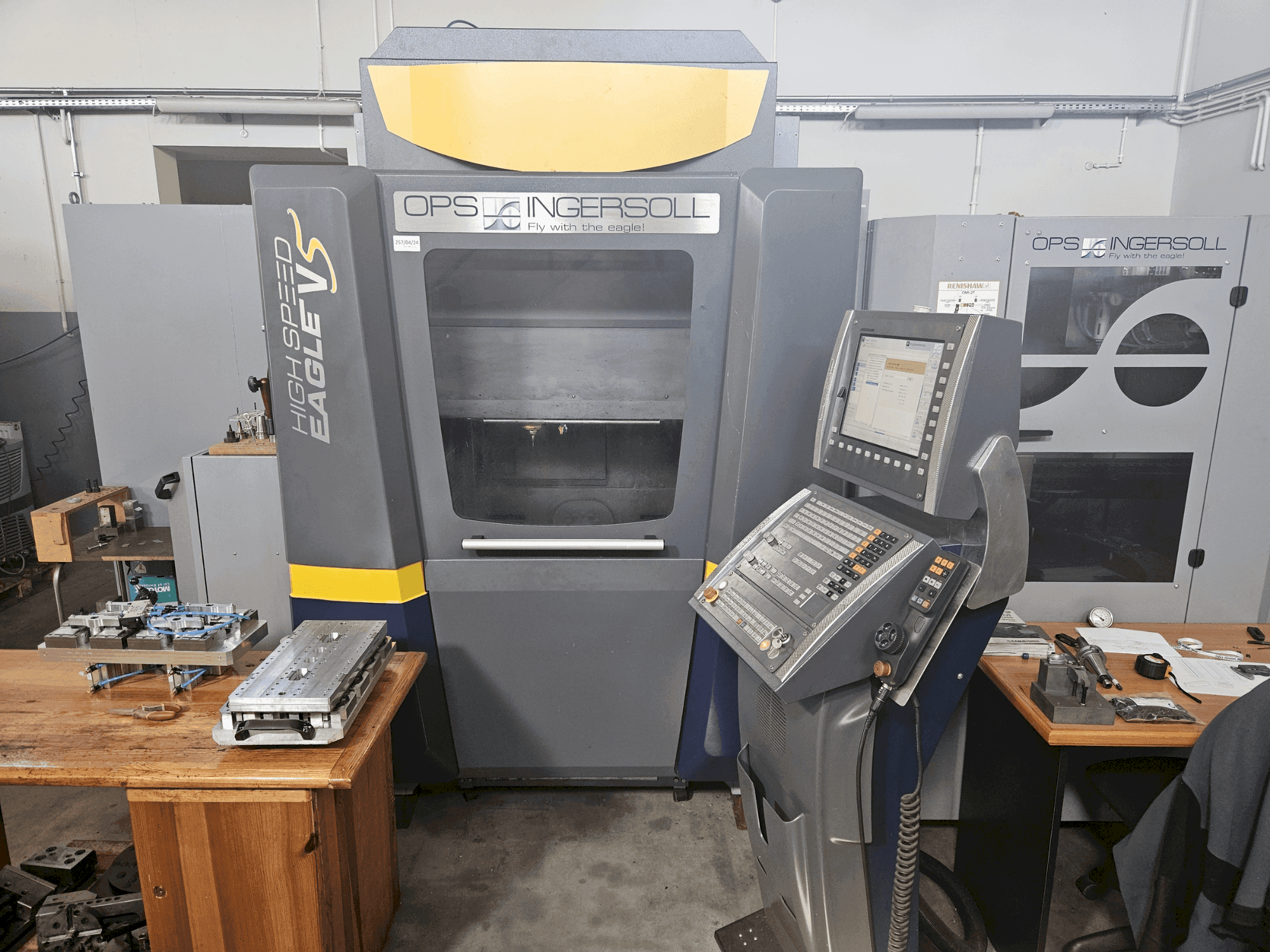

Front view of OPS INGERSOLL HIGH SPEED Eagle V5 machine
Front view of OPS INGERSOLL HIGH SPEED Eagle V5 machine

OPS INGERSOLL - HIGH SPEED Eagle V5PL-MIL-OPS-2017-00001

Rs. 19,154,450
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis OPS INGERSOLL Eagle V5 was manufactured in 2017, featuring a robust vertical machining center design. It boasts a high-speed Fisher HSK E40 spindle with speeds up to 42,000 rpm and a 32-tool magazine. The machine includes a 4/5-axis tilting rotary table, enhancing its versatility for complex machining tasks. Consider the opportunity to buy this OPS INGERSOLL Eagle V5 vertical machining center. Contact us for more information about this machine.

Overview

  • brand: OPS INGERSOLL
  • year: 2017
  • MODEL: HIGH SPEED Eagle V5
  • application type: Milling
  • Location: Poland
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - OPS INGERSOLL HIGH SPEED Eagle V5

General Data

  • Measurements width: 2020 mm
  • Measurements depth: 2800 mm
  • Measurements height: 2450 mm
  • Machine weight: 7200 kg

Control Unit

  • Brand: HEIDENHAIN
  • Model: iTNC 640 HSCI

Main drive

  • Spindle speed range: 1–42000 1/MIN
  • Tool taper: Fisher HSK E40
  • Number of axis: 5

Movement

  • X-AXIS Movement: 550 mm
  • X-AXIS Rapid traverse: 30 m/min
  • Y-AXIS Movement: 400 mm
  • Y-AXIS Rapid traverse: 30 m/min
  • Z-AXIS Movement: 400 mm
  • Z-AXIS Rapid traverse: 30 m/min

Workpiece

  • Workpiece weight: 500 kg

Table

  • Number of tslots: 5
  • Table load: 250 kg

Tools

  • Max tool diameter: 16 mm

    Additional equipment

    • - 4/5-axis Tilting Rotary Table prepared for Pallet System
    • - B-axis Tilting Range: −120° to +60°
    • - C-axis Rotation: 360°
    • - B-axis Speed: 25 rpm
    • - C-axis Speed: 20 rpm
    • - Keller Dust Extraction System
    • - EROWA UPC Production Chuck Clamping System
    • - Tool Length and Diameter Laser Measurement, Broken Tool Detection
    • - Touch Probe (Renishaw)
    • - Precision Pack III – 5-axis Thermal Compensation

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Spindle-to-table distance (min/max): 50–450 mm
        • - Table design: fixed dimensions: 650 × 500 mm
        • - T-slots: 5 × 14h12
        • - Torque (s1/s6 - 60%): 5. 9 nm / 6. 7 nm
        • - Tool magazine capacity: 32
        • - Max. Workpiece size: Ø400 × 380 mm

      Extra information

      • - ECOTEC Energy-saving Function Table Adapter for 4th and 5th Axes HR410 Wireless Remote Control EROWA UPC Basic Chuck with EROWA ITS100 Adapter

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Sergi Guardia

    Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
