HAAS - HAAS VF-3SSPL-MIL-HAA-2017-00006

Rs. 4,913,748
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

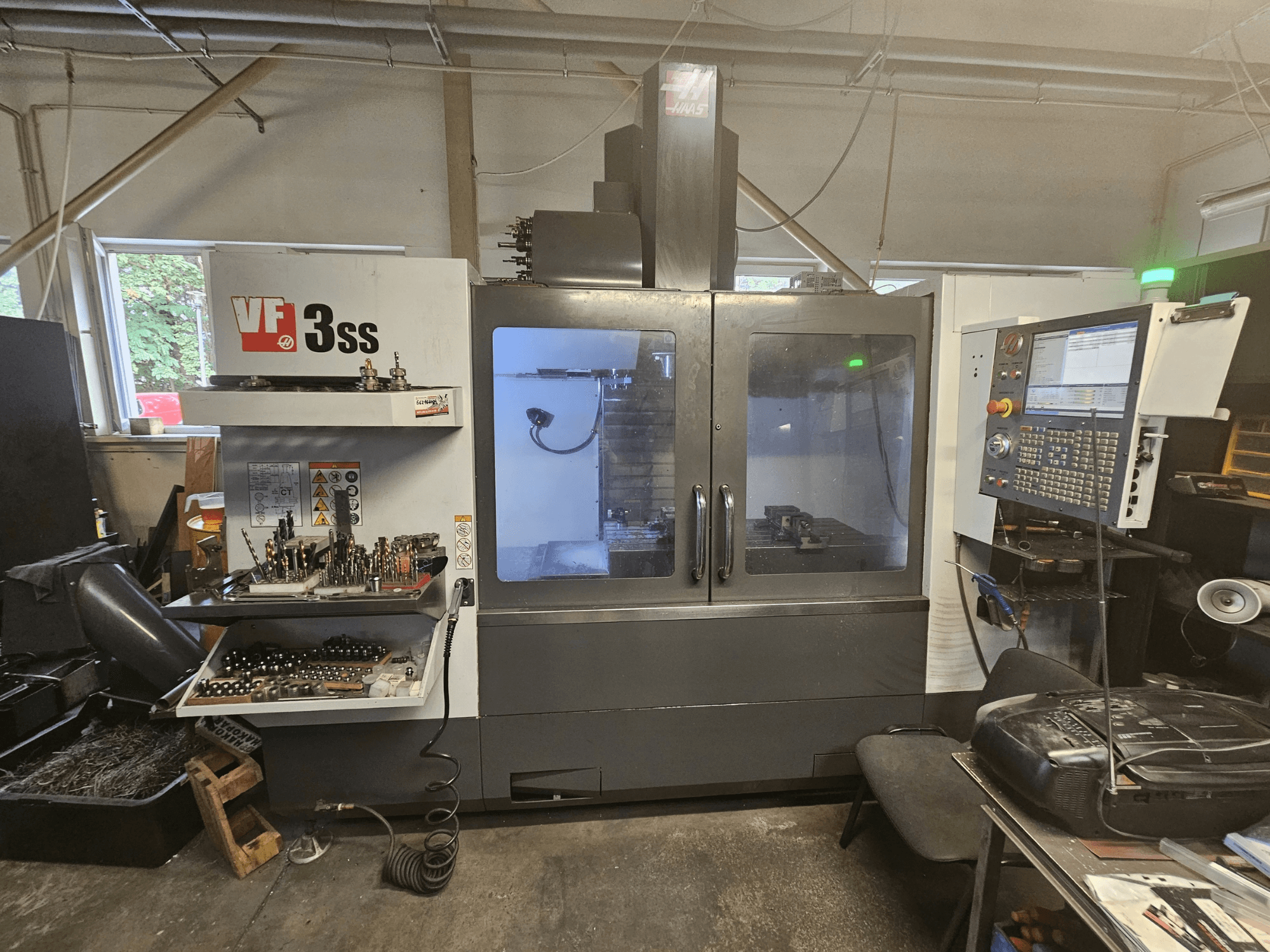

This 4-axis HAAS VF-3SS was manufactured in 2017. It features an X-axis travel of 1016 mm, Y-axis travel of 508 mm, and Z-axis travel of 635 mm. The machine includes a table size of 1219 x 457 mm and can support a maximum part weight of 794 kg. If you are looking to get high-quality machining capabilities, consider the HAAS VF-3SS vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: HAAS
  • year: 2017
  • MODEL: HAAS VF-3SS
  • application type: Milling
  • Location: Poland
  • machine type: Vertical Machining Centre
  • control unit brand: HAAS

Technical Information - HAAS HAAS VF-3SS

Control Unit

  • Control Brand: HAAS

Dimensions

  • Machine Height: 2692 mm
  • Machine Length: 2235 mm
  • Machine Weight: 5670 kg
  • Machine Width: 2794 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 1016 mm
  • Y-axis Travel: 508 mm
  • Z-axis Travel: 635 mm

Technical Specification

  • Max. Tool Weight: 5.4 kg
  • Spindle Power: 224 kW
  • Spindle Speed: 12000 RPM
  • Tool Stations: 24

Additional Information

  • Table size: 1219 x 457 mm

  • Max part weight on table: 794 kg

  • max torque 122 Nm

  • Tool capacity limits: max diameter (all tools) 76 mm; max diameter (adjacent position empty) 127 mm; max length 330 mm

  • Power supply: 3x400 V, 50 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
