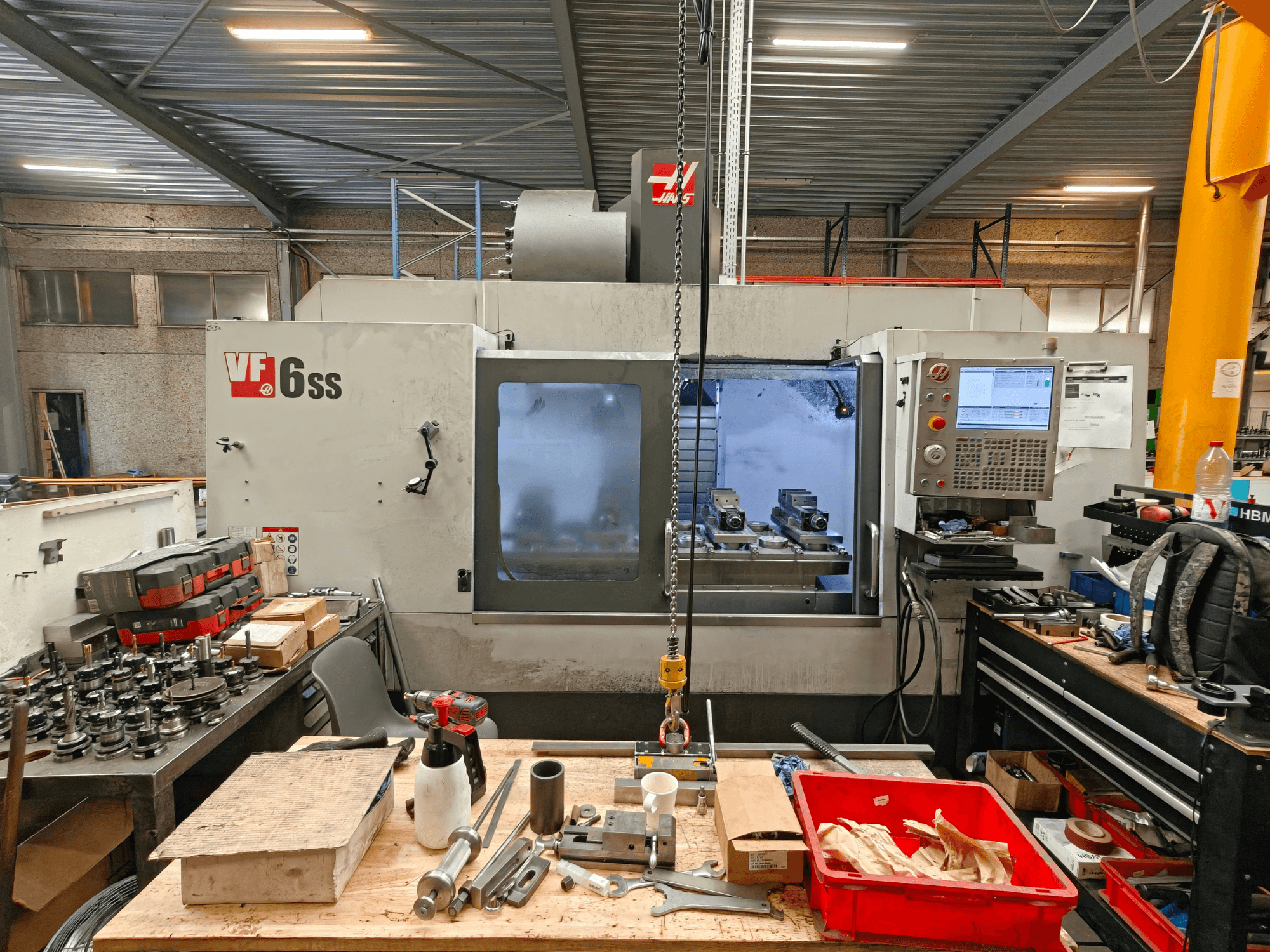

This 3-axis HAAS VF-6SS was manufactured in 2016. It features impressive X, Y, and Z travels of 1,626 mm, 813 mm, and 762 mm respectively, along with a high-power 22.4 kW spindle capable of reaching 12,000 rpm. The machine includes a high-speed side-mount tool changer with 24+1 stations and a robust table load capacity of 907 kg. If you are looking to get high-quality machining capabilities, consider the HAAS VF-6SS vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: HAAS
- year: 2016
- MODEL: VF-6SS
- production hours: 5326
- application type: Milling
- Location: Belgium
- machine type: Vertical Machining Centre
Technical Information - HAAS VF-6SS
Dimensions
- Table Load: 207 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1626 mm
- Y-axis Travel: 813 mm
- Z-axis Travel: 762 mm
Technical Specification
- Spindle Power: 22.4 kW
- Spindle Speed: 12000 RPM
Additional Information
Travels: X 1,626 mm; Y 813 mm; Z 762 mm; spindle nose to table 102–864 mm
Table: 711 × 1,626 mm; 5 × 16 mm T-slots; 125 mm T-slot pitch; max table load 907 kg
Spindle: max torque 122 Nm @ 2,000 rpm; ABEC Class 7 bearings; electronic orientation; water-cooled spindle head; BT40; through-spindle air blast; tool release button
Tool changer:
Standard side-mount 24+1, BT40; all-electric bi-directional; max tool Ø 76 mm (full), 127 mm (adjacent pockets empty); max tool weight 5.4 kg; tool-to-tool 2.3 s; chip-to-chip 3.2 s
Optional 40+1: tool-to-tool 2.8 s; chip-to-chip 3.6 s; max tool Ø 76 mm (full), 152 mm (adjacent pockets empty)
Feed rates: rapid traverse X/Y/Z 30.5 m/min; max cutting feed 21.2 m/min
Motors/Drives: axis max thrust (X/Y/Z) 15,124 N; direct-coupled servo motors; brushless servo motors; Vector Drive (Y-Δ)
Coolant & lubrication: 360-litre pull-out coolant tank; automatic lubrication system
Construction & enclosure: rigid cast iron construction; triangular wide-base castings; heavy-duty sheet steel enclosure; 14-gauge cold-rolled steel; free-flow enclosure design; door opening width 1,549 mm
Machine size & utilities: max height 3,378 mm; width 5,232 mm; depth 3,835 mm (door open); compressed air 113 l/min @ 6.9 bar; electrical 380 VAC, 3-phase, 50–60 Hz; installed power 28 kVA
Controls/Functions: Rigid tapping; Remote Hand Jog (RJH); tool load monitoring; 5 spare M-functions
Accuracy/Quality: 100% ballbar test for 3D squareness and machining accuracy
Other: high-power cartridge spindle; high-speed side-mount tool changer (24+1); easily accessible coolant tank; 1-year parts and labour warranty
Additional equipment
None listed (no robots, automation, chip conveyor, bar feeder, or other external accessories specified)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
