HAAS - HAAS TM-2PPL-MIL-HAA-2013-00004

Rs. 2,200,514
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

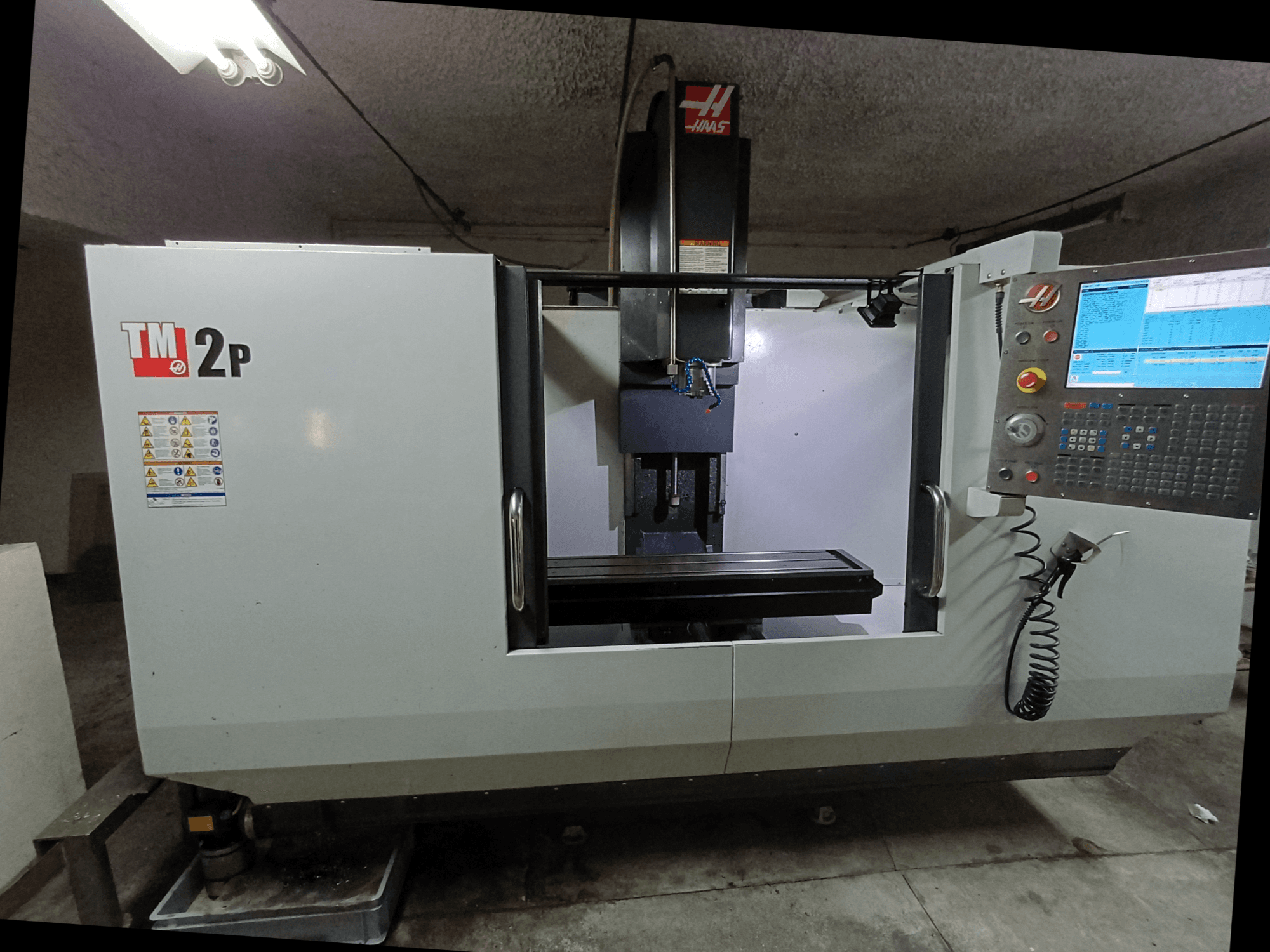

This 3-axis HAAS HAAS TM-2P was manufactured in 2013. It features an X-axis travel of 1016 mm, Y-axis travel of 406 mm, and Z-axis travel of 406 mm. The machine includes a table size of 1467 x 267 mm and a maximum table load of 159 kg. If you are looking to get high-quality machining capabilities, consider the HAAS HAAS TM-2P vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: HAAS
  • year: 2013
  • MODEL: HAAS TM-2P
  • production hours: 989
  • application type: Milling
  • Location: Poland
  • machine type: Vertical Machining Centre
  • control unit brand: HAAS

Technical Information - HAAS HAAS TM-2P

Control Unit

  • Control Brand: HAAS

Dimensions

  • Machine Weight: 2295 kg
  • Table Length: 1467 mm
  • Table Load: 159 kg
  • Table Width: 267 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 1016 mm
  • Y-axis Travel: 406 mm
  • Z-axis Travel: 406 mm

Technical Specification

  • Spindle Power: 5.6 kW
  • Spindle Speed: 6000 RPM
  • Taper Size: ISO 40
  • Tool Stations: 10

Additional Information

  • Max tool diameter: 89 mm

  • Positioning accuracy: 0.01 mm

  • Repeatability: 0.01 mm

  • Air pressure: 6.9 bar

  • Air consumption: 113 l/min

  • Power supply: 3 × 400 V, 50 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
