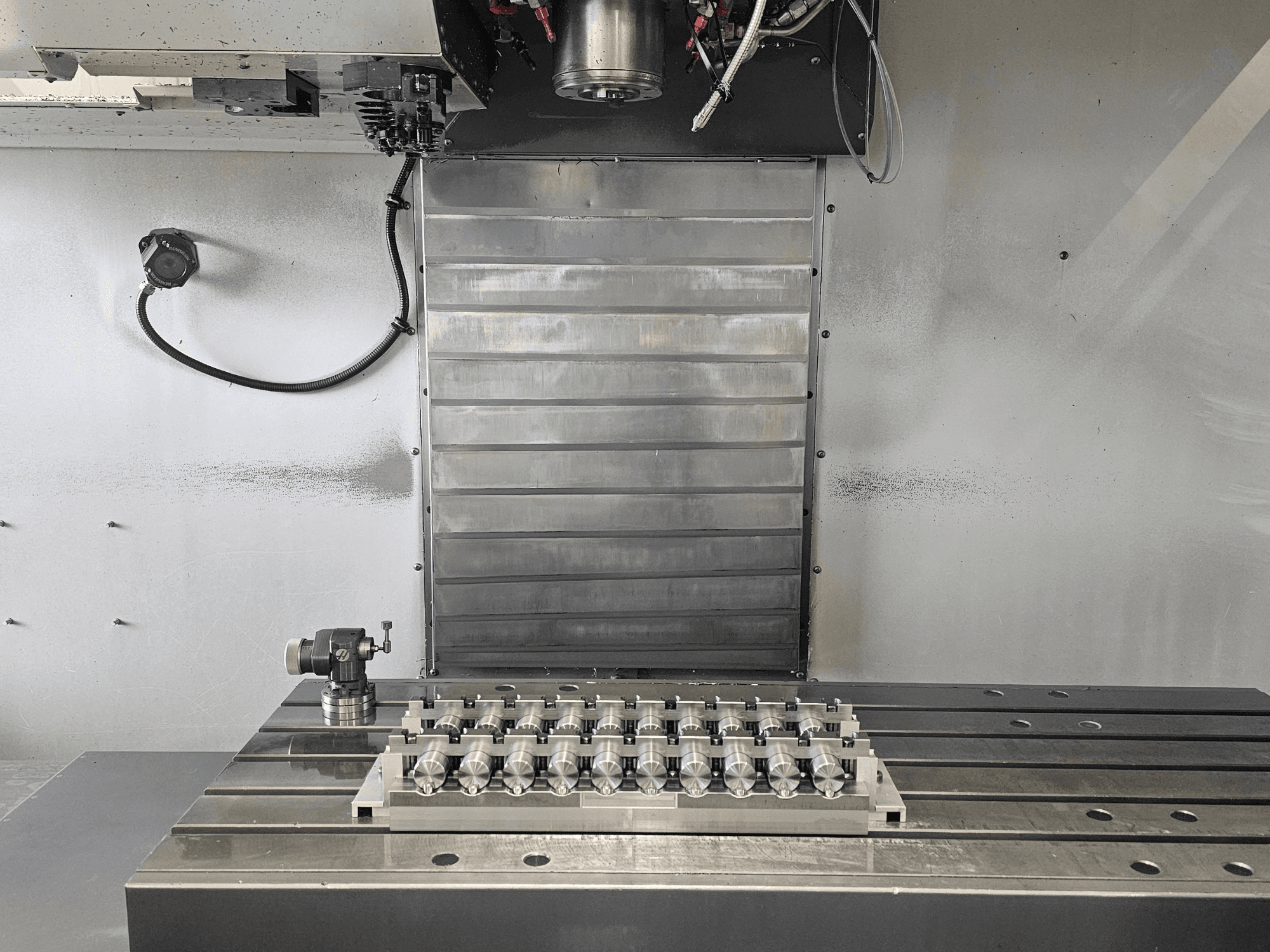

Front view of a CNC milling machine's workspace featuring a precision machined part on metal table and control mechanisms.
Front view of a CNC milling machine's workspace featuring a precision machined part on metal table and control mechanisms.

HAAS - VF-3SSSI-MIL-HAA-2015-00002

Rs. 5,305,250
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

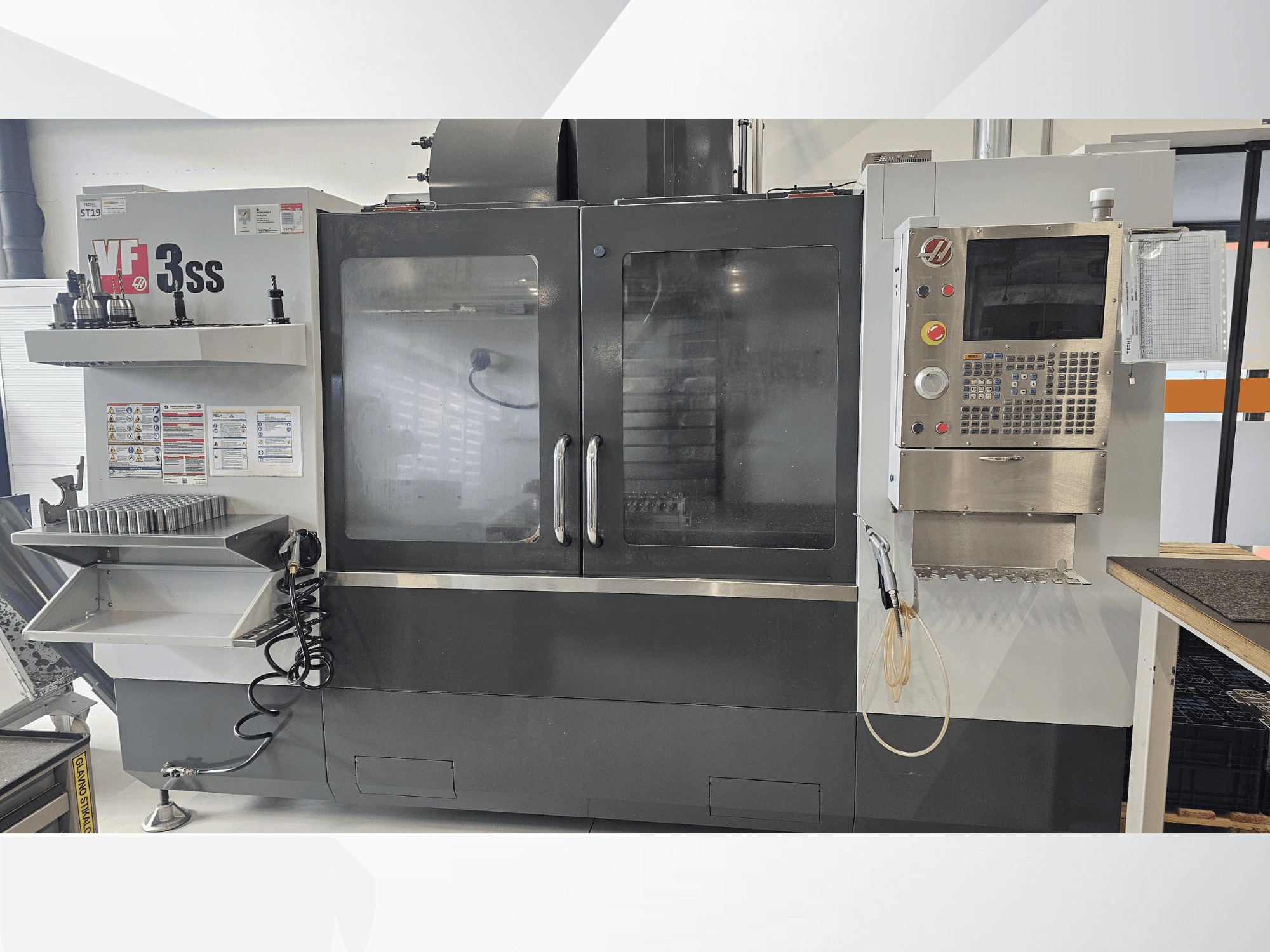

This 3-axis HAAS VF-3SS vertical machining center was manufactured in 2015. It features a 1,372 × 457 mm table, a maximum load of 794 kg, and a spindle speed of 12,000 rpm. The machine includes a 30+1 side-mount ATC and a rapid traverse of 30.5 m/min. If you are looking to get high-quality milling capabilities, consider the HAAS VF-3SS machine we have for sale. Contact us for more information about this machine.

Overview

  • brand: HAAS
  • year: 2015
  • MODEL: VF-3SS
  • production hours: 5792
  • application type: Milling
  • Location: Slovenia
  • machine type: Vertical Machining Centre
  • control unit brand: HAAS

Technical Information - HAAS VF-3SS

Control Unit

  • Brand: HAAS

Main drive

  • Spindle speed range: 12000 1/MIN
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1016 mm
  • X-AXIS Rapid traverse: 30.5 m/min
  • Y-AXIS Movement: 508 mm
  • Y-AXIS Rapid traverse: 30.5 m/min
  • Z-AXIS Movement: 635 mm
  • Z-AXIS Rapid traverse: 30.5 m/min

Table

  • Table load: 794 kg

Additional Information

  • Electrical:

    • Voltage: 354 / 488 V

    • Phase: 3

    • Frequency: 50/60 Hz

    • Full load: 40 A

    • Largest load: 70 A

    • Short circuit interrupting capacity: 10,000 A

    • Short circuit current: 5,000 A RMS symmetrical

  • Machine hours (from control):

    • Power on time: 19,635 h

    • Cycle start time: 8,564 h

  • Table:

    • Size: 1,372 × 457 mm

  • Tool changer: 30+1 side-mount ATC

  • Control unit: Haas CNC Control

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
