Used Vertical Machining Centre HAAS VF-3 - 2014 - for sale | gindumac.com

Show in original language

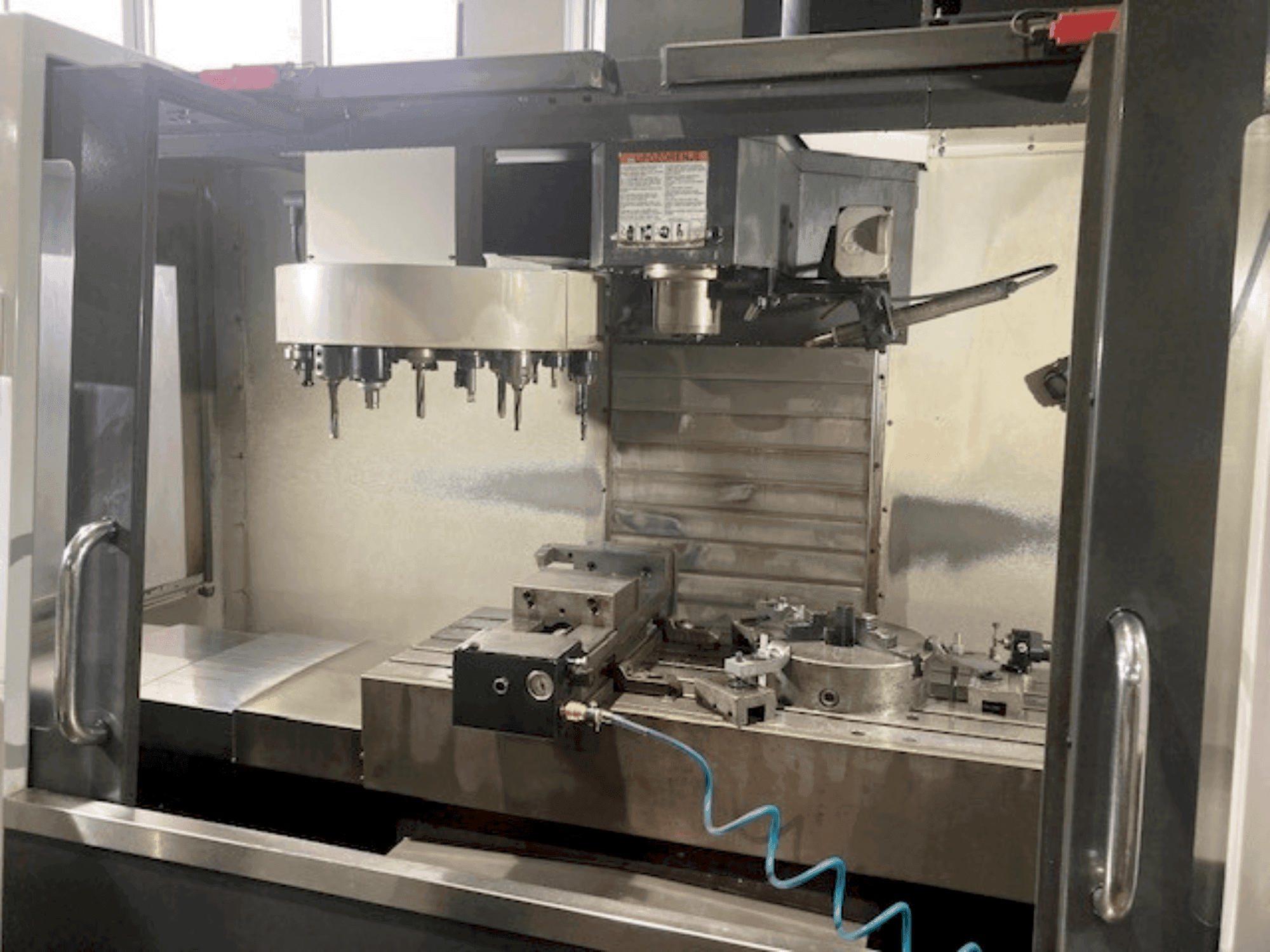

This 3-axis milling machine was manufactured in 2014. Equipped with a powerful 22.4 kW spindle and precise positioning accuracy of 0.005 mm, this HAAS VF-3 offers exceptional performance for machining tasks. Its 20-tool horizontal carousel magazine ensures efficient tool changes, while the 15" LCD color monitor enhances user interface. With a maximum table load of 1588 kg and rapid traverse rates of 25.4 m/min, buy this HAAS VF-3 milling machine for versatile and reliable production capabilities. Contact us for further information.

Overview

brand: HAAS
year: 2014
MODEL: VF 3
application type: Milling
Location: Serbia
machine type: Vertical Machining Centre
availability: Immediately

Technical Information - HAAS VF 3

General Data

Machine weight: 5670 KG

Main drive

Spindle speed range: 8100 1/MIN
Spindle motor power: 22.4 kW

Movement

X-AXIS Rapid traverse: 24.5 m/min
Y-AXIS Rapid traverse: 24.5 m/min
Z-AXIS Rapid traverse: 24.5 m/min

Table

Outer length: 1219 MM
Outer width: 457 MM
TSlots size: 16 MM
Number of tslots: 15
Distance between: 80 MM
Min distance between vertical spindle and table: 102
Max distance between vertical spindle and table: 737
Table load: 1588 KG

Tools

Slots in storage: 15
Max weight: 5.4 KG
Max tool diameter: 189 MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum torque: 122 nm at 2000 rpm
- - Power transmission from motor: in line direct drive (direct motor-spindle, no gearbox)
- - Taper and tooling: iso40, din 69871
- - Maximum cutting feedrate: 16. 5 m/min
- - Traverses: x- 1016 mm, y- 508 mm, z- 635 mm
- - Maximum motor load: x and y axes - 11343 n, z axis - 18683 n
- - Tool magazine type: horizontal carousel without tool changer arm
- - Tool change time: 4. 2
- - Positioning: +/- 0,005mm
- - Repeatability: 0. 003 mm
Qualitative Machine Benefits:
- - Protective cabin around the machine according to ce standards
- - 15" lcd color monitor
- - Rs-232 port (pc-cnc communication via serial port)
- - Usb port (for transferring and directly running programs from a usb data carrier)
- - 1 mb of user memory
- - Coolant system with a 208 l reservoir
- - Automatic centralized lubrication system
- - Rigid tapping - synchronous threading with a tapping attachment without compensation

Extra information

- - Pneumatic installation (requirement): Emulsion tank capacity: 113 L/min, 6.9 bar - Electrical power supply: 3x400 V, 50 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
