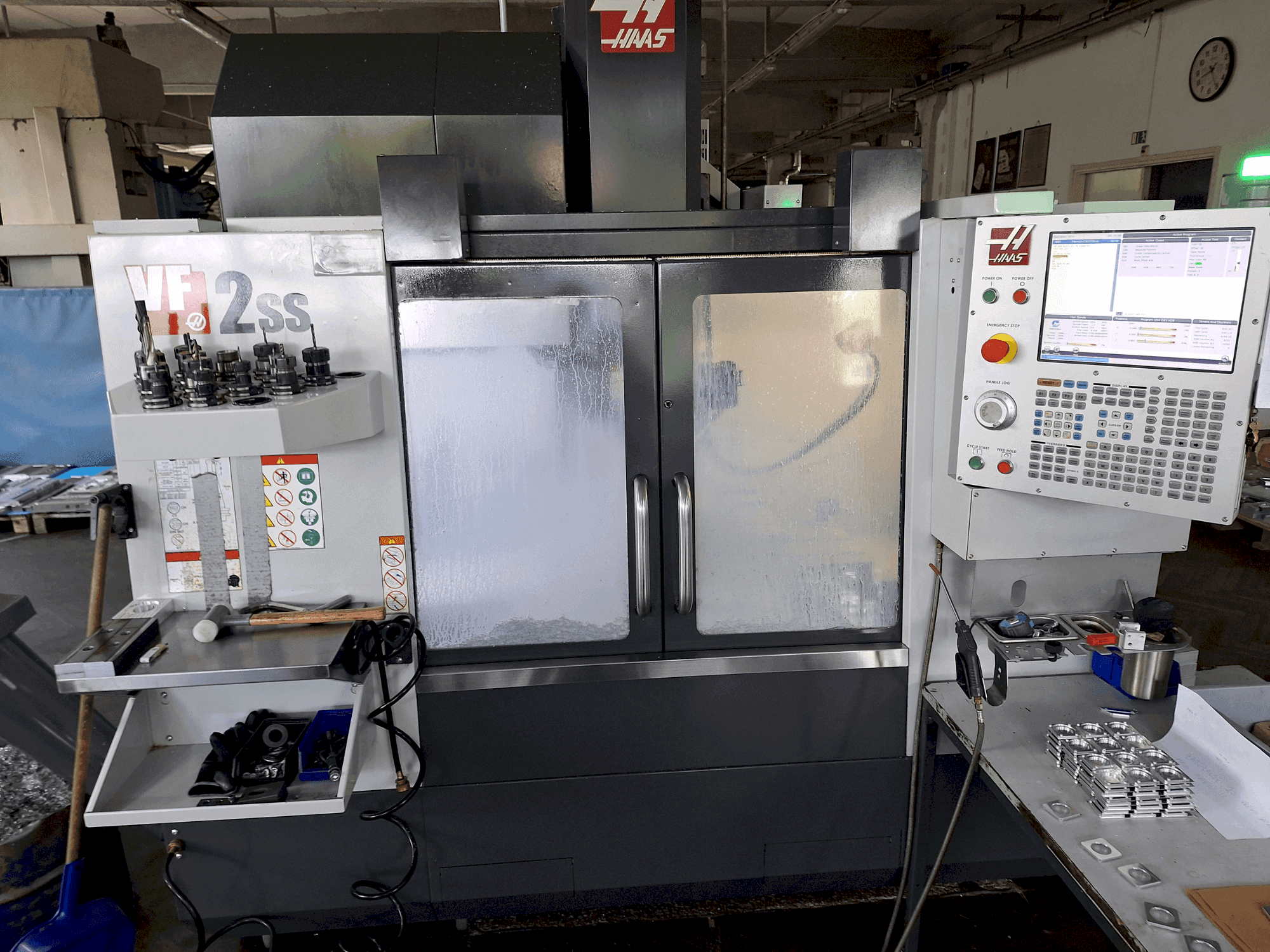

Front view of HAAS VF 2 SS  machine

HAAS - VF 2 SSSI-MIL-HAA-2020-00001

Rs. 4,744,900
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis HAAS VF 2 SS milling machine was manufactured in 2020. It features a robust inline direct-drive system, a spindle speed of up to 12000 rpm, and a spindle power of 22.4 kW. The machine accommodates a table load of 680 kg and offers rapid movements on X, Y, and Z axes at 35.6 m/min, enhancing productivity. Ideal for precision milling, the HAAS VF 2 SS machine we have for sale. Contact us for further details.

Overview

  • brand: HAAS
  • year: 2020
  • MODEL: VF 2 SS
  • application type: Milling
  • Location: Slovenia
  • machine type: Milling Machine
  • availability: Immediately

Technical Information - HAAS VF 2 SS

General Data

  • Measurements width: 2510 mm
  • Measurements depth: 2570 mm
  • Measurements height: 2570 mm
  • Machine weight: 3539 kg

Main drive

  • Number of spindles: 1
  • Spindle speed range: 12000 rpm 1/MIN
  • Spindle motor power: 22.4 kW
  • Tool taper: CT40, BT40, HSK-A63
  • Working current: Full Load Amps (3 Phase) - Low: 70 A; High: 35 A
  • Number of axis: 3

Movement

  • X-AXIS Movement: 762 mm
  • Y-AXIS Movement: 406 mm
  • Z-AXIS Movement: 508 mm

Workpiece

  • Workpiece weight: 680 kg

Table

  • Outer length: 914 mm
  • Outer width: 356 mm
  • TSlots size: 15.90 mm to 16.00 mm
  • Number of tslots: 3
  • Distance between: 125 mm

    Additional equipment

    • - Tool Changer: Type: SMTC, Capacity: 30+1, Max Tool Diameter (full): 64 mm, Max Tool Length (from gage line): 279 mm, Max Tool Weight: 5.4 kg
    • - Coolant Capacity: 208 L

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Height adjustment: spindle nose to table (max): 610 mm; (min): 102 mm
        • - Air requirements: air required: 113 l/min @ 6. 9 bar, air pressure min: 5. 5 bar
        • - Electrical specification: input ac voltage (3 phase) - low: 220 vac; high: 440 vac

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
