➤ Used HAAS VF-1YT-2 For Sale | gindumac.com

Show in original language

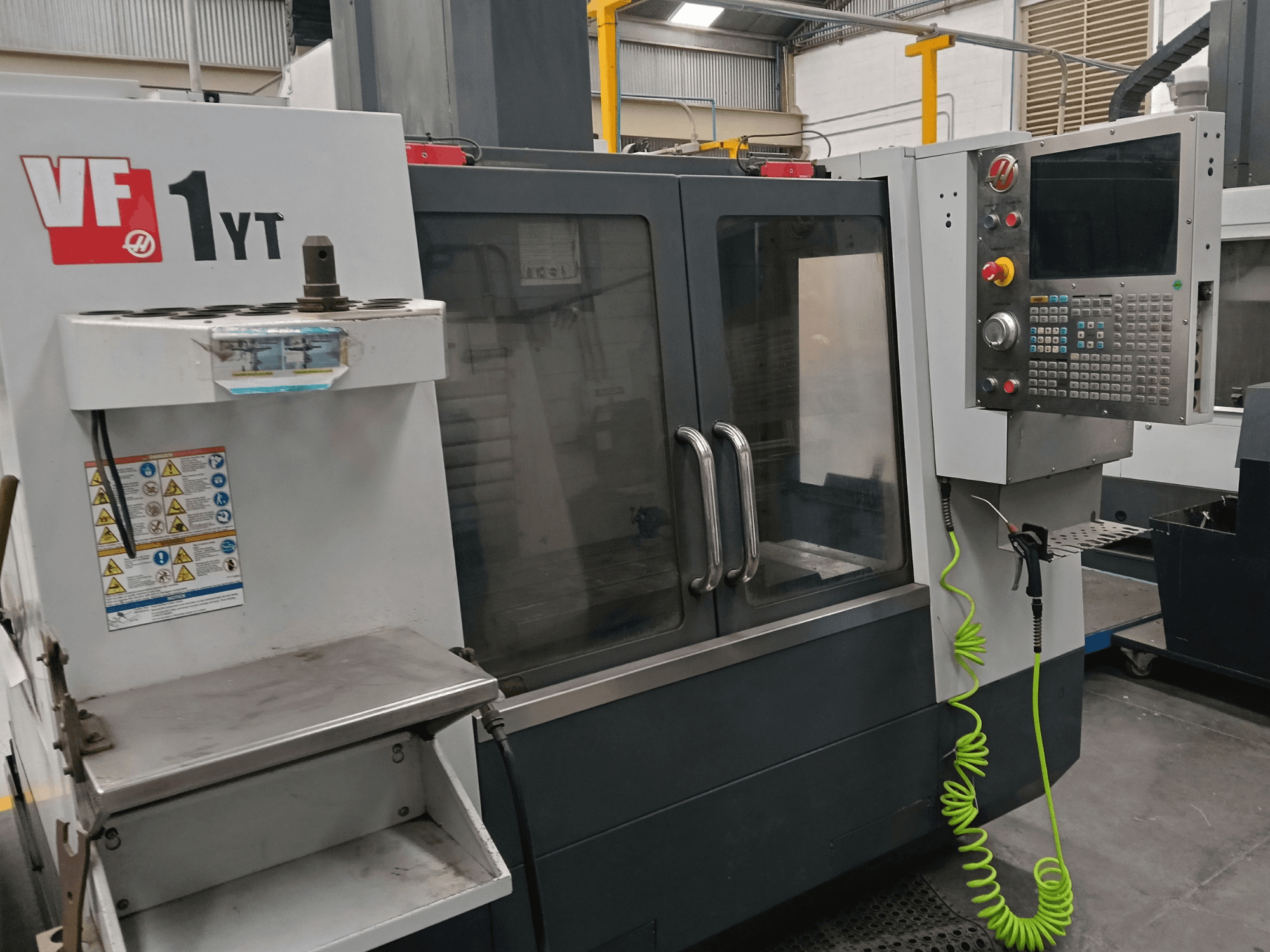

This 3-axis HAAS VF-1YT-2 was manufactured in 2013. It features an X-axis travel of 508 mm, Y-axis travel of 406 mm, and Z-axis travel of 508 mm. The machine includes a robust table size of 660 x 457.2 mm and a maximum table load of 1,361 kg. If you are looking to get high-quality machining capabilities, consider the HAAS VF-1YT-2 vertical machining center we have for sale. Contact us for further details.

Overview

brand: HAAS
year: 2013
MODEL: VF-1YT-2
application type: Milling
Location: Mexico
machine type: Vertical Machining Centre

Technical Information - HAAS VF-1YT-2

Dimensions

Machine Weight: 3300 kg
Table Load: 1361 kg

Movement

Number of Axes: 3
X-axis Travel: 508 mm
Y-axis Travel: 406 mm
Z-axis Travel: 508 mm

Technical Specification

Spindle Power: 22.4 kW
Spindle Speed: 8100 RPM

Additional Information

CNC control: Original Haas CNC control with 15" LCD monitor and USB port
Table size: 660 x 457.2 mm (26" x 18")
T-slots: 3 slots, 16 mm (5/8") width
Spindle taper: CT40
Max torque: 90 ft-lb @ 2,000 rpm
ATC capacity: 20 stations (carousel)
Tool change time (tool-to-tool): 2.3–2.8 s
Rapid traverse (X/Y/Z): 25.4 m/min (1,000 ipm)
Max cutting feedrate: 16.5 m/min (650 ipm)
Coolant tank capacity: 208 L (55 gal)
Electrical requirements: 220 VAC
Air required: Min 6.9 bar (100 psi), constant flow
Option: 4th axis drive capable

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
