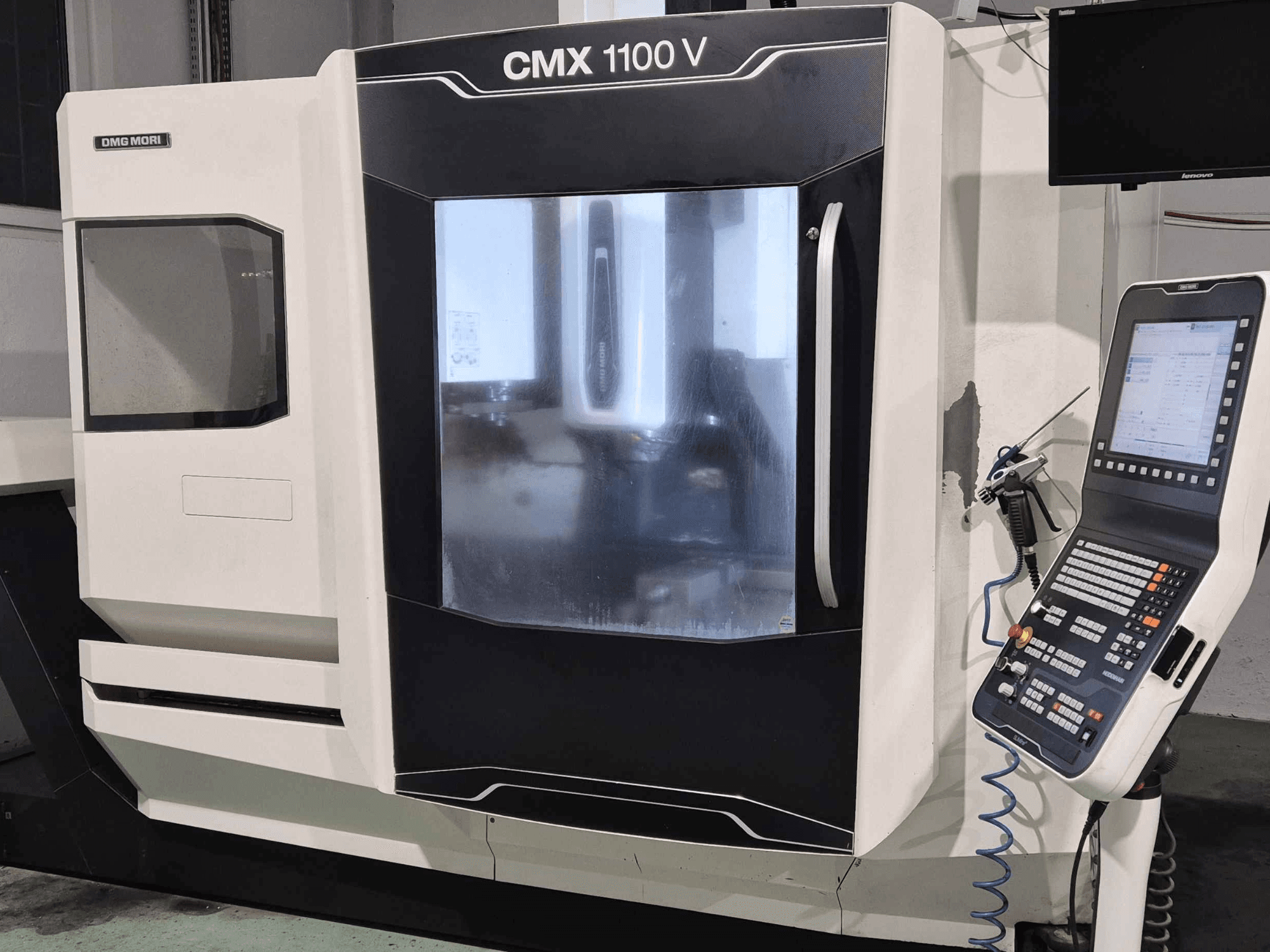

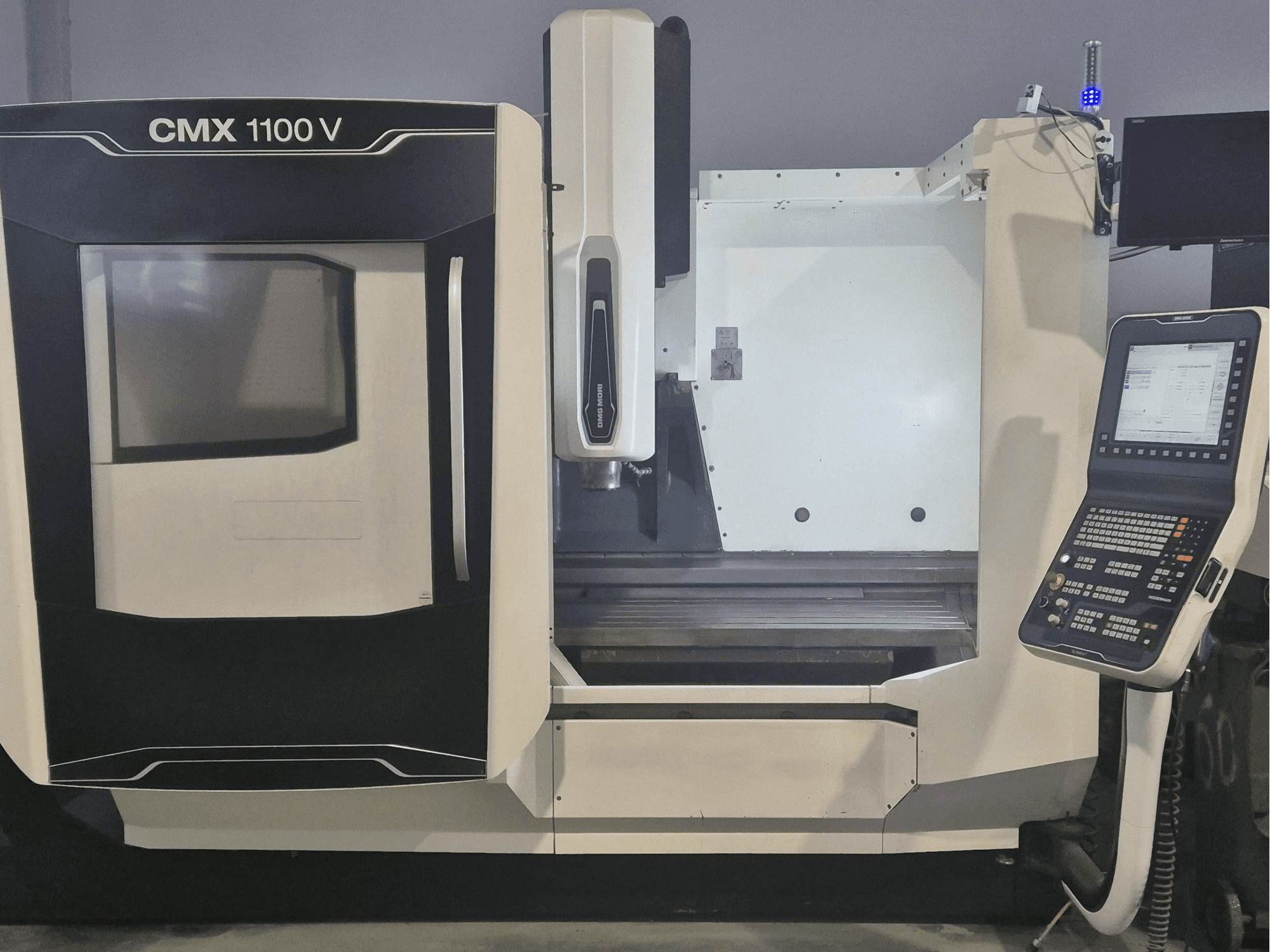

This 3-axis DMG MORI CMX 1100 V was manufactured in 2017. It features impressive axis travels of 1100 mm in X, 560 mm in Y, and 510 mm in Z. The machine is equipped with a 30-position tool magazine and a HEIDENHAIN TNC 620 control system. If you are looking to get high-quality machining capabilities, consider the DMG MORI CMX 1100 V vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2017
- MODEL: CMX 1100 V
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DMG MORI CMX 1100 V
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 620 (3D)
Movement
- Number of Axes: 3
- X-axis Travel: 1100 mm
- Y-axis Travel: 560 mm
- Z-axis Travel: 510 mm
Technical Specification
- Spindle Power: 13 kW
- Spindle Speed: 12000 RPM
- Taper Size: SK 40
Additional Information
Operating hours:
Spindle hours after replacement: 2,900 h
Spindle hours (machine counter): 32,420 h
Power-on hours (counter): 60,300 h
Condition: Powered on and running in production; inspection possible (operation, geometry, overall condition)
Worktable size: 1400 × 560 mm
Axis dynamics: Rapid traverse 30 m/min (linear axes)
Spindle:
Tool clamping: DIN 69872
Tool magazine: 30-position chain-type magazine with double gripper
Cooling/media: Coolant–air switching via M-function (external), chip tray
CNC control: HEIDENHAIN TNC 620 (3D) with ASCII keyboard and 15" monitor
Measuring systems: Direct measuring systems (linear scales) on X/Y/Z; air purge for measuring system
Additional machine options:
Safe voltage package: X and Y axis motors with brake, overvoltage limiter, undervoltage monitoring with emergency stop trigger
Software options – HEIDENHAIN:
Option 3 (#21): M120 tool radius compensation for contouring, LOOK AHEAD up to 99 blocks, 3D machining, M118 handwheel positioning during program execution
Additional equipment
Scraper-type chip conveyor (left side)
Coolant tank, 250 l
Manual wash gun for machining area
4-color signal tower
HEIDENHAIN probing package: Wireless workpiece measuring probe and probe calibration ring
Manual handwheel (portable control panel)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
