➤ Used WAGNER WMC 600 L For Sale | gindumac.com

Show in original language

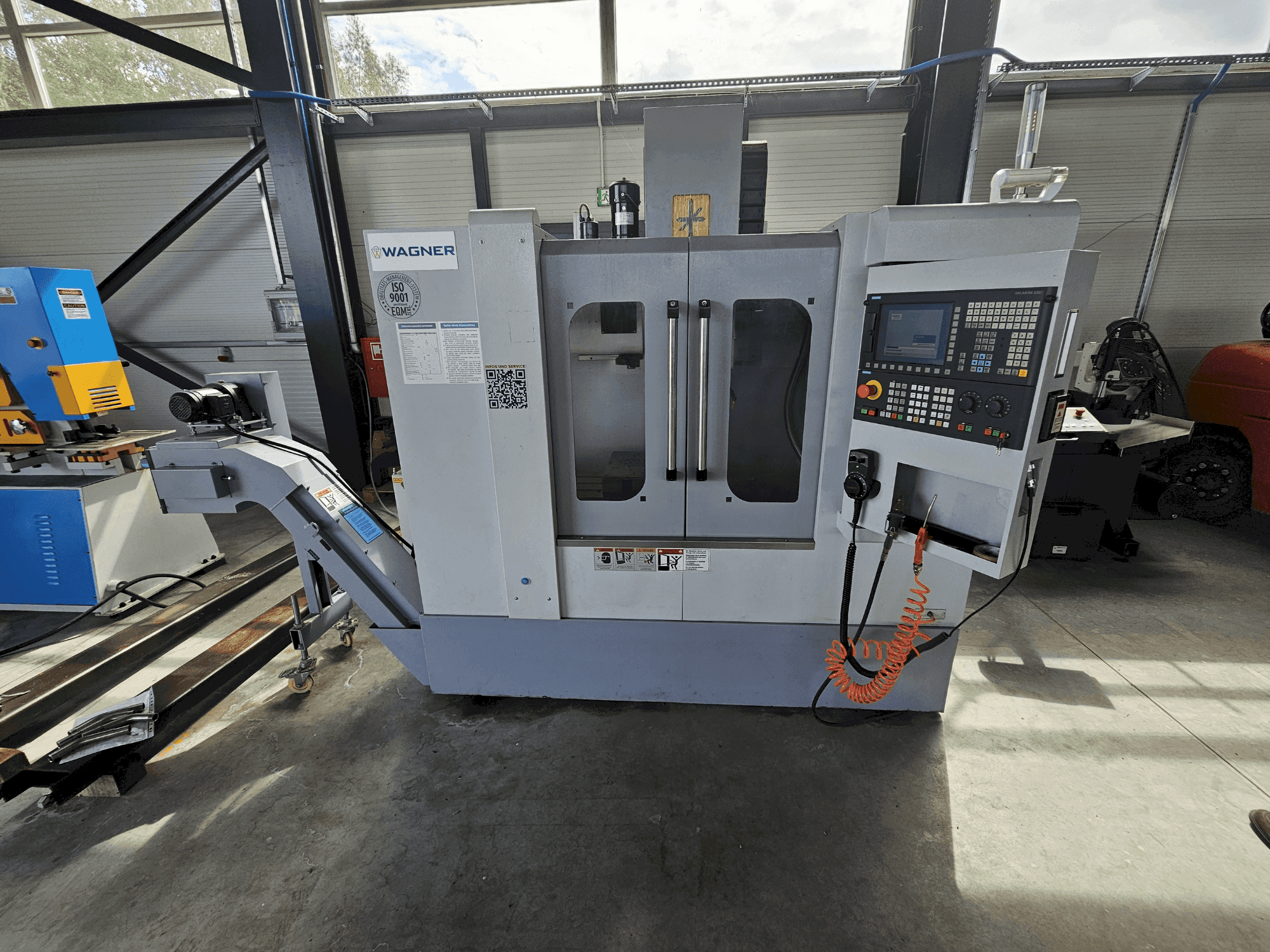

This 3-axis WAGNER WMC 600 L was manufactured in 2021, featuring a robust cast-iron frame and linear guides on all axes. It includes a Siemens 828 Basic ShopMill, an automatic double-arm tool changer with 16 stations, and a complete coolant system. The spindle supports speeds up to 10,000 rpm with a power of 11 kW. If you are looking to get high-quality milling capabilities consider the WAGNER WMC 600 L machine we have for sale. Contact us for more information.

Overview

brand: WAGNER
year: 2021
MODEL: WMC 600 L
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - WAGNER WMC 600 L

Control Unit

Control Brand: SIEMENS
Control Model: SINUMERIK 828D

Dimensions

Machine Depth: 2100 mm
Machine Height: 2240 mm
Machine Weight: 3500 kg

Movement

X-axis Travel: 600 mm
Y-axis Travel: 400 mm
Z-axis Travel: 450 mm

Technical Specification

Spindle Speed: 10000 RPM
Taper Size: SK 40

Additional Information

Additional equipment

Rigid cast-iron frame construction
Linear guides on all three axes
Automatic double-arm tool changer (16 stations)
Complete coolant system
Central automatic lubrication
Air blast system for spindle cleaning
Machine enclosure with doors
Machine and signal lights
Documentation in English
CE-certified

Machine Benefits

Qualitative Machine Benefits

Machine is in excellent condition.

Technical Machine Benefits

Spindle motor power (siemens s6 40%): 11 kw spindle motor power (siemens s1 100%): 5. 5 kw
Tool magazine capacity: 16 tools
Tool holder: din 69871 a sk 40
Maximum tool diameter: 89 mm
Maximum tool weight: 7 kg
Tool change time: 2 seconds
Chip-to-chip time: 7 seconds
Table clamping surface: 800 x 400 mm
Table load capacity: 300 kg

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
