Pinnacle - BX300APL-MIL-PIN-2012-00001

Name: Pinnacle BX300A
Brand: Pinnacle
SKU: PL-MIL-PIN-2012-00001
Price: 9789950 INR
Availability: InStock

Rs. 9,789,950

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Pinnacle BX300A For Sale | gindumac.com

Show in original language

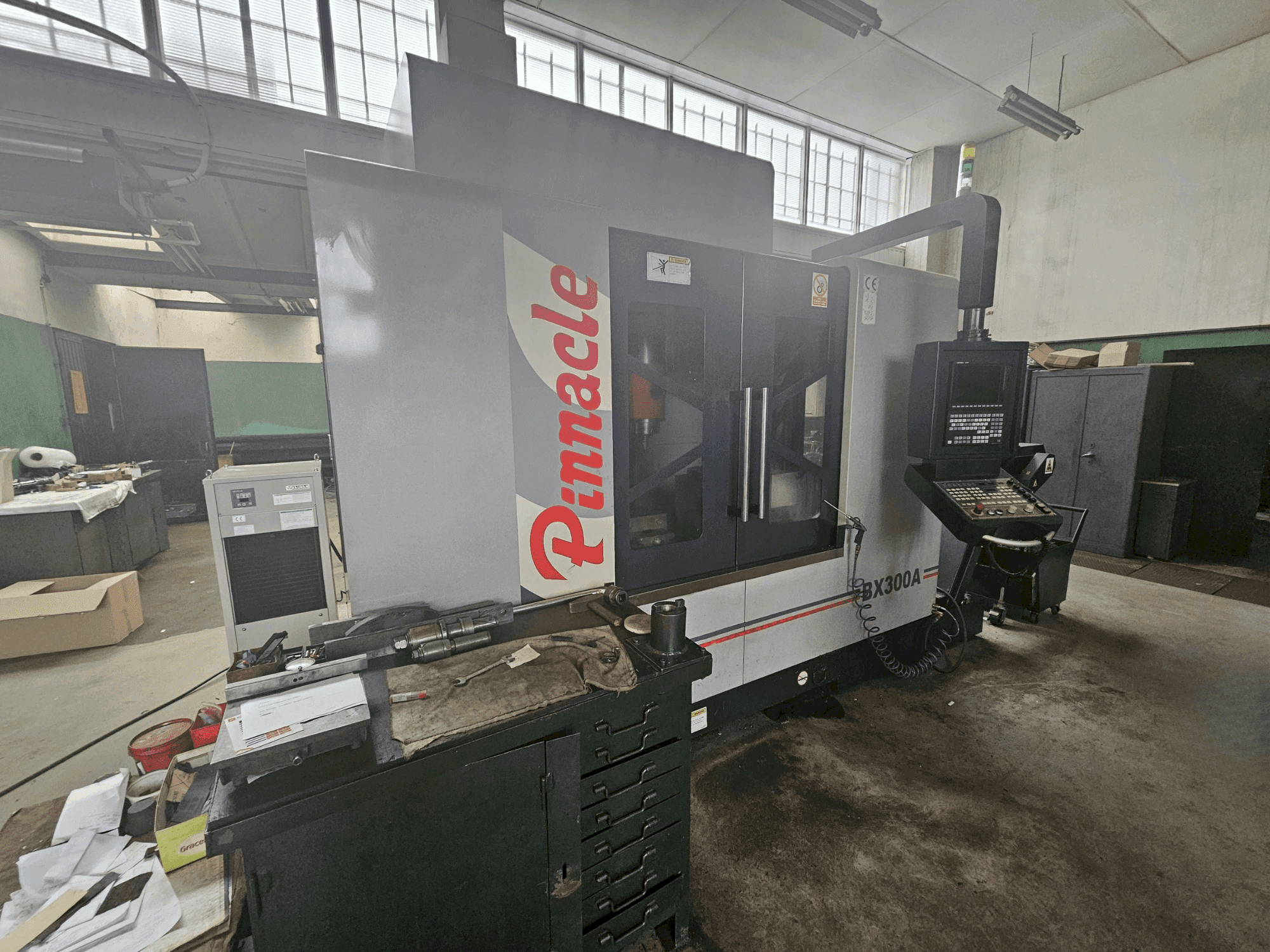

This 5-axis Pinnacle BX300A was manufactured in 2012. It features a spindle speed of 15,000 rpm, a table size of 1300 × 610 mm, and a 24-position tool magazine. Equipped with a Mitsubishi M720VS control system, it supports complex machining with continuous rotation on the C-axis and tilting on the B-axis. Consider the opportunity to buy this Pinnacle BX300A vertical machining centre. Contact us for more information about this machine.

Overview

brand: Pinnacle
year: 2012
MODEL: BX300A
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: MITSUBISHI

Technical Information - Pinnacle BX300A

Control Unit

Brand: MITSUBISHI
Model: M720 SSS

Main drive

Spindle speed range: 15000 1/MIN
Tool taper: ISO40
Number of axis: 5

Movement

X-AXIS Movement: 1140 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 810 mm

Table

Table load: 850 kg

Additional equipment

- Air blast through spindle
- Rotary table with counter-support and hydraulic lock – 360° rotation
- Heidenhain linear scales on X, Y, Z axes; rotary encoders on A and C axes
- Coolant through spindle, 20 bar + low-pressure cooling system
- Renishaw OMP60 workpiece probe + receiver // Renishaw TS27R tool probe
- Chip flushing system
- Chain-type chip conveyor
- Telescopic covers for X, Y, Z axes
- Full machine enclosure with safety door lock
- Central lubrication system with oil cooler

Additional Information

Machine Benefits

Technical Machine Benefits:
- - B-axis (tilting head): –120° to +120°
- - C-axis (rotary table): 360° continuous rotation
- - 24-position drum-type tool magazine
- - Table size: 1300 × 610 mm
Qualitative Machine Benefits:
- - Condition: very good, low operating hours
- - Ready for tests

Extra information

- Additional equipment Work area lighting Signal tower Air and coolant guns MPG handwheel Electrical cabinet cooling with air conditioner Temperature control system for spindle and ball screws Coolant oil separator Maintenance tool set

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
