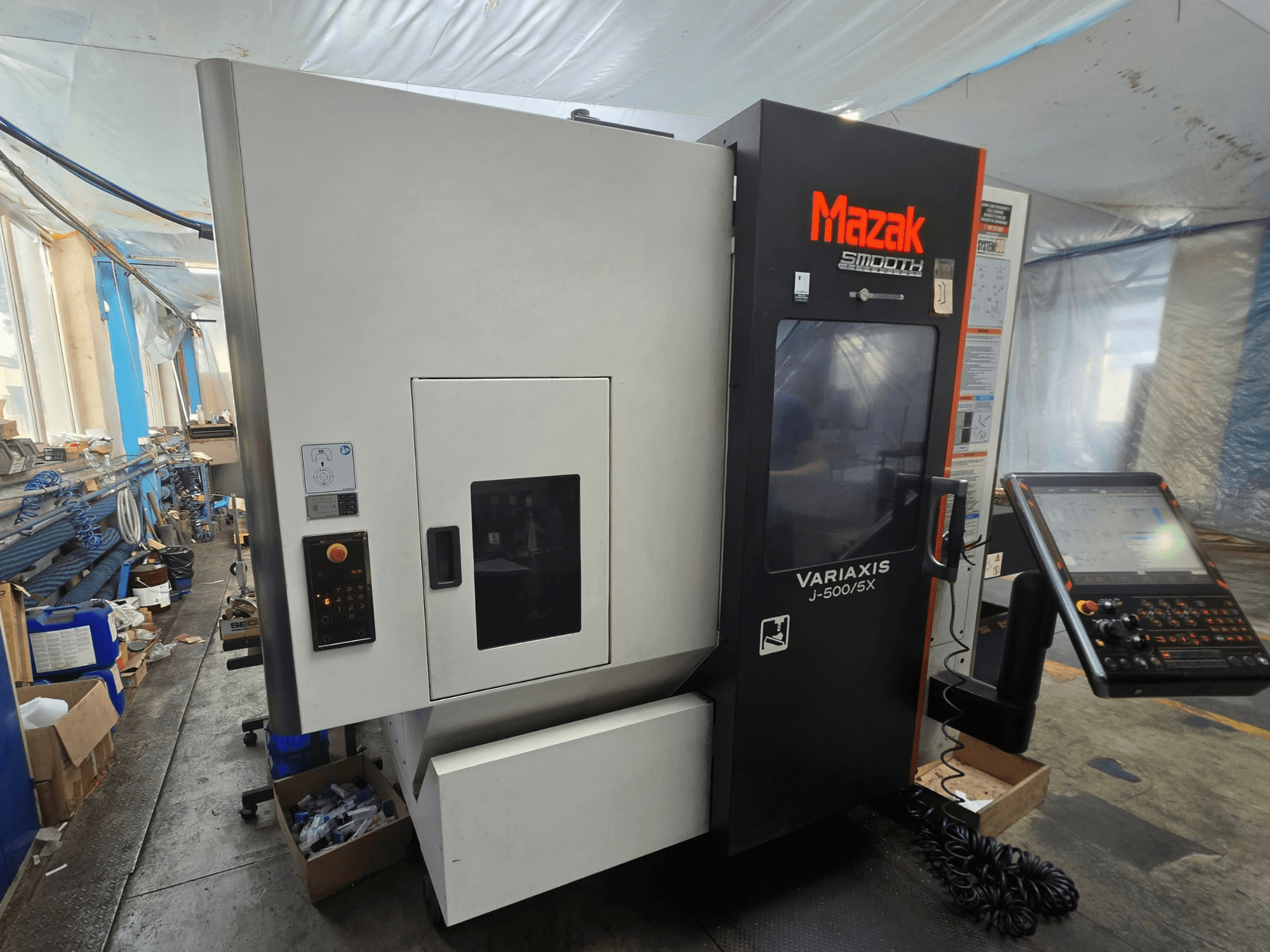

Mazak - VARIAXIS J-500/5XPL-MIL-MAZ-2018-00001

• Cutting time (“cutting only”): 14,396 h 54 min

• Working capacity and travels

  • Max workpiece diameter: 500 mm; height: 350 mm

  • A-axis tilt: -120° to +30°; C-axis rotation: ±360°

  • A/C indexing increment: 0.0001°

  • Rapid traverse X/Y/Z: 30,000 mm/min

  • Max cutting feed X/Y/Z: 30,000 mm/min

  • A-axis indexing time: 0.6 s per 90°

  • C-axis indexing time: 0.55 s per 90° / 1.05 s per 180°

  • Guideways: Roller linear guideways

• Table and clearances

  • Tilting/rotary table with A and C axes

  • Table size: 500 × 400 mm

  • T-slot table (as specified in final configuration)

  • Spindle nose to table surface, table horizontal: 50–560 mm

  • Spindle nose to table, table vertical: 40–550 mm

• Spindle

  • Spindle chiller; spindle cooling oil tank: 16 L

  • Programmable spindle orientation in 1° increments

• Tool changer and magazine

  • ATC with recovery function; digital magazine display; external magazine operating panel

  • Tool selection: fixed magazine addresses with automatic shortest-path selection

  • Max tool length: 300 mm

  • Max tool diameter with adjacent tools: 90 mm; with adjacent pockets empty: 130 mm

  • Chip-to-chip time: 6.20 s

• Measuring and probing

  • Automatic tool length measurement and tool breakage detection

  • G37 automatic tool length measurement function

  • Absolute positioning system

  • MAZA-CHECK system

  • Preparation for RMP600 workpiece probe

• Coolant and thermal management

  • Through-tool high-pressure coolant (~15 kgf/cm² ≈ 14.7 bar), flow ~35 L/min

  • Coolant tank: 300 L

  • Coolant washdown system

  • Cooling for X/Y/Z-axis ball screws

• Control and software

  • MAZATROL conversational and EIA/ISO programming; simultaneous 5-axis control in EIA/ISO

  • G00 Slope Constant; Smooth restart; Tilted machining plane; Inverse Time Feed

  • Extended work offsets: 300 pairs; Variable macros: 600 variables

  • Polar coordinate programming; Tornado machining cycle

  • High-speed machining and smoothing; Geometric compensation for rotary axes

  • Seamless Corner Control; Variable Acceleration Control

  • Interfaces: USB, LAN, SD memory card

• Safety, enclosure, compliance

  • Full working-area enclosure with top cover

  • Interlocked operator door; working-area lighting

  • Intelligent Safety Shield (ISS)

  • CE marking

• Automation/operation aids

  • Automatic machine power on/off and warm-up

Additional equipment

• Right-side hinged-belt chip conveyor for steel machining

• European-market power transformer

• Machine installation kit

• Polish manuals and safety labels
