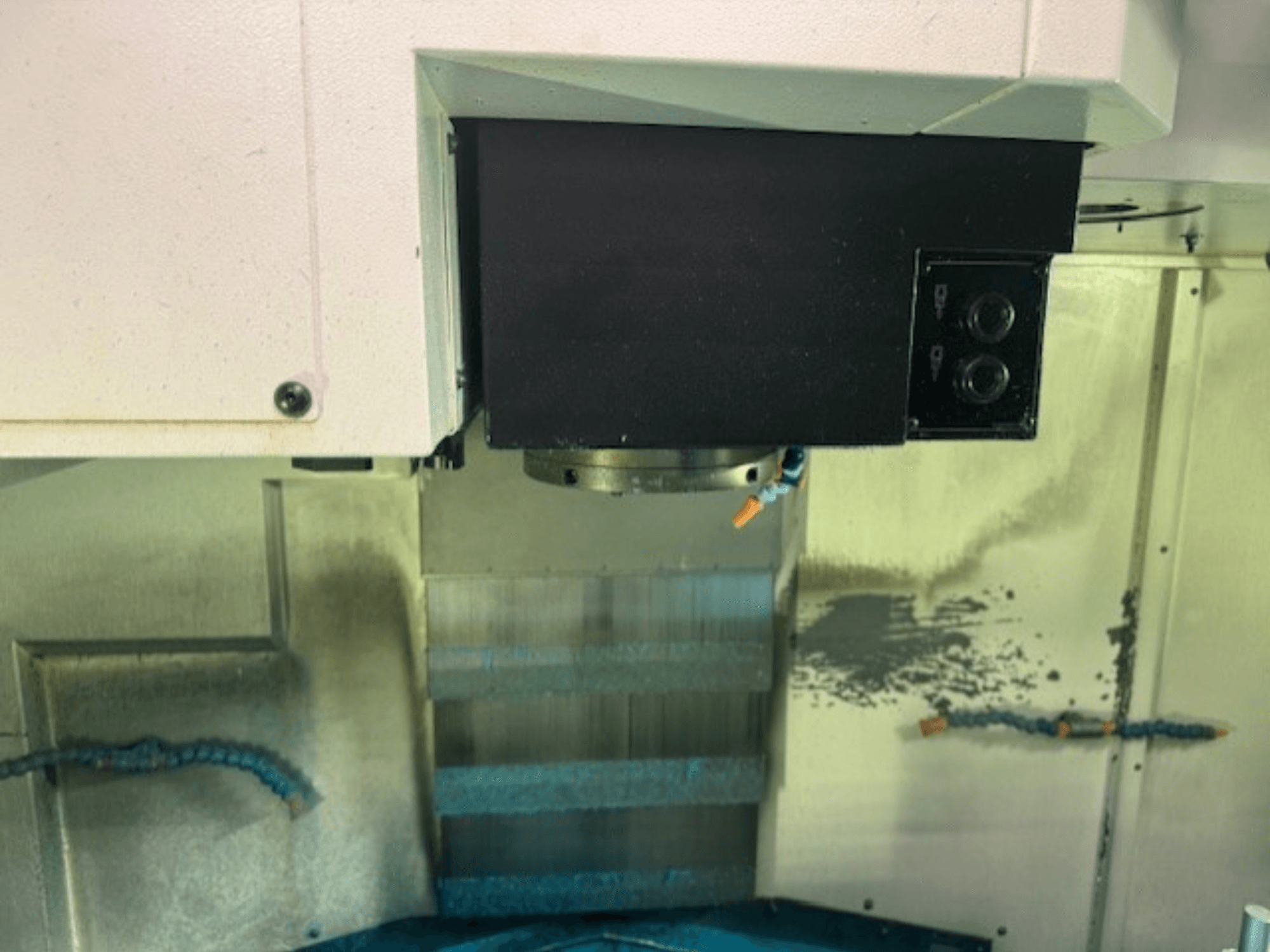

This 3-axis Mazak VCS 530C vertical machining centre was manufactured in 2014. It features a table size of 1300x550 mm, X/Y/Z travels of 1050/530/510 mm, and a maximum spindle speed of 12000 min⁻¹. The machine supports a table load up to 1200 kg and includes a 30-tool magazine with a rapid tool change time of 2.8 seconds. Consider the opportunity to buy this Mazak VCS 530C vertical machining centre. Contact us for more information about this machine.
Overview
- brand: Mazak
- year: 2014
- MODEL: VCS 530C
- application type: Milling
- Location: Hungary
- machine type: Vertical Machining Centre
Technical Information - Mazak VCS 530C
Dimensions
- Machine Height: 2808 mm
- Machine Length: 2929 mm
- Machine Weight: 6800 kg
- Table Load: 1200 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1050 mm
- Y-axis Travel: 530 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Spindle Power: 18.5 kW
- Spindle Speed: 12000 RPM
Additional Information
Table
Size (X): 1300 mm
Size (Y): 550 mm
T-slots: 5 pcs; width 18 mm; pitch 100 mm
Travels and distances
Distance spindle nose to table: 150–660 mm
Distance spindle to column: 586 mm
Spindle
Taper: 7/24 taper No.40
Motor power: 18.5 kW (5 min), 15 kW (10 min), 7.5 kW (continuous)
Max torque: 95.5 Nm
Feed rates
Rapid traverse (X/Y/Z): 42 m/min
Rapid acceleration/deceleration: 0.6 G
Max cutting feed (X/Y/Z): 8 m/min
Accuracy
Positioning accuracy (X/Y/Z): 0.012 mm
Repeatability (X/Y/Z): 0.008 mm
Tool magazine
Capacity: 30 tools
Tool interface: ISO 40
Max tool diameter: 80 mm (125 mm with adjacent pockets empty)
Max tool weight: 8 kg (combined 120 kg)
Max tool length: 350 mm
Tool change time (tool-to-tool): 2.8 s
Machine dimensions
Width: 2950 mm
Utilities
Power supply: 3-phase AC 400 V ±10%, 50–60 Hz
Total/continuous power requirement: 29.96 kVA
Compressed air: 5–9 bar; 200 l/min
Coolant tank capacity: 250 liters
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
